KEY FEATURES

• True RMS signal processing guarantees highly accurate metrics across distorted or non-linear electrical waveforms.
• Advanced motor diagnostics incorporate a specialized 600V 3-phase motor sequence testing routine.
• LoZ low-impedance input mode actively suppresses and eliminates deceptive ghost voltage variables.
• Dual AC/DC microamp (µA) current configurations verify heating system flame rectifiers up to 2000µA.
• Industrial-grade build with an IP54 protection class rating to repel ambient dust and splashing water.
• Heavy-duty ruggedized composite chassis certified to withstand a 2-meter physical drop test protocol.
• Generous 33mm internal jaw opening diameter safely accommodates standard industrial cables.
• High-contrast 6000-count single LCD display features an automated screen auto-backlight and built-in flashlight.

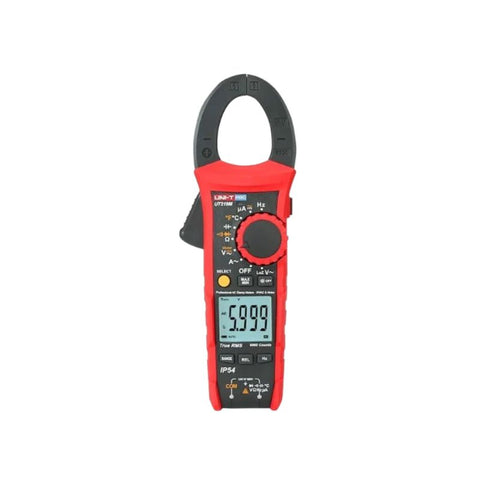

The Uni-T UT219M Professional Clamp Meter Motor Test Loz delivers a highly effective and robust electrical verification framework for auditing commercial plant systems, testing variable-speed blowers, and diagnosing complex industrial motor networks. Standard entry-level multimeters lack the strict overvoltage insulation barriers and structural drop damping required for high-risk jobsites, leading to damaged internal components or incorrect data tracking; by surrounding this high-purity processor in a hardened housing rated for CAT III 1000V and CAT IV 600V safety zones, it ensures ultimate baseline stability. Field mechanics can perform extensive multi-point safety profiling across raw facility boundaries, relying on high input impedance and automatic parameter selection to take control of noisy machinery lines without introducing manual reading errors.

ADDITIONAL FEATURES

• Supplied K-type contact temperature thermocouple probe array records wide environmental thermal fields.
• High-capacity capacitance core safely tests and evaluates motor start and run capacitor banks up to 60 millifarads.
• Wide resistance testing threshold tracks grounding networks and line elements accurately up to 60 Mega Ohms.
• Fast digital sampling matrix updates screen parameters at 3 measurement updates per second.
• Smart data handling profile equips independent Max/Min tracking, relative modes (REL), zero mode, and data hold.
• Automated power saving framework triggers an auto power-off sequence to preserve battery cell life.

APPLICATIONS

• Perfectly optimized for industrial AC current clamping, True RMS electrical voltage testing, 3-phase motor sequence checking, low-impedance LoZ ghost voltage mitigation, flame sensor microamps diagnostics, contact temperature profiling, circuit capacitance validation, and professional HVAC/R safety auditing.

PRODUCT PACKAGE INCLUDES

• 1 x Uni-T UT219M Professional Heavy-Duty Motor Clamp Meter (SKU: UT219M)
• 1 x Premium Electrical Test Leads Set (1-Meter)
• 1 x Point-Contact K-Type Temperature Thermocouple Probe (80-Centimeter)
• 3 x Standard 1.5V AAA Operational Batteries
• 1 x Soft Protective Fabric Travel Carrying Bag / Pouch
• 1 x Comprehensive English Technical User Instruction Manual
• 1 x 12-Month Official Factory Warranty Certificate

SPECIFICATIONS

The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.

All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.

ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.

ADDITIONAL RESOURCES

PRODUCT BROCHURE

General information about the Uni-T UT219M Professional Clamp Meter is mapped out in the brochure below.

DOWNLOAD
