KEY FEATURES

• Industrial-grade architecture with an IP54 protection class rating to repel dust and moisture ingress.
• Heavy-duty ruggedized composite chassis certified to withstand a 2-meter physical drop test.
• True RMS signal processing guarantees precise parameters across distorted electrical waveforms.
• LoZ low-impedance AC voltage function quickly detects and filters out ghost voltage interferences.
• Generous 33mm internal jaw opening safely accommodates thick industrial cables and conductors.
• Large 6000-digit single LCD screen is backed by an automated auto-backlight sensory module.
• Dual layout range selection gives operators complete freedom over auto or manual range controls.
• Integrated data tracking features include Max/Min capture, Relative mode (REL), and clear data hold.

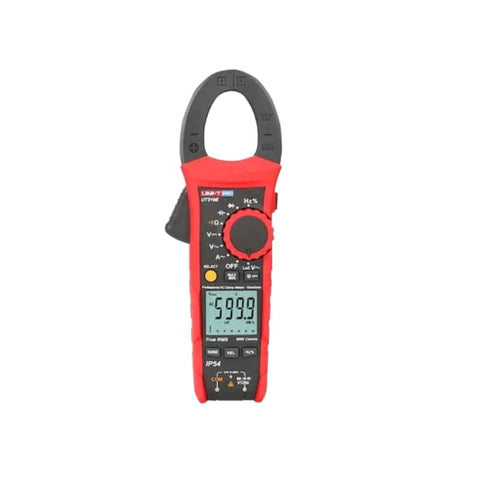

The Uni-T UT219E Professional Clamp Meter delivers a highly effective and robust electrical verification framework for auditing commercial motor controls, tracking down intermittent circuit faults, and executing safe preventative maintenance building surveys. Standard lightweight multimeters lack the mechanical shielding and structural damping required for high-risk jobsites, leading to damaged components or inaccurate readings under rough conditions; by surrounding this high-precision processor in a hardened, drop-tested housing rated for CAT III 1000V and CAT IV 600V safety zones, it ensures ultimate baseline stability. Field technicians can manage intensive industrial power inspections confidently, moving across raw architectural footprints while benefiting from automated hardware protection loops and reliable parameter selection.

ADDITIONAL FEATURES

• Fast digital sampling matrix updates screen data at 3 times per second, paired with an ultra-responsive 31-segment analog bar graph refreshing at 10 times per second.
• High-capacity capacitance diagnostic core evaluates motor capacitors and electronics safely up to 60 millifarads.
• Wide resistance testing threshold checks grounding networks and high-spec resistors up to 60 Mega Ohms.
• Smart auto power-off (APO) saving protocol systematically deactivates the screen to conserve critical battery lifespan.
• High input impedance over or equal to 10 Mega Ohms prevents circuit loading errors during high-sensitivity tracking.

APPLICATIONS

• Perfectly optimized for industrial AC current clamping, True RMS electrical voltage testing, low-impedance LoZ ghost voltage mitigation, heavy motor maintenance, HVAC/R component service, high-resistance validation, and preventative facility safety auditing in harsh field environments.

PRODUCT PACKAGE INCLUDES

• 1 x Uni-T UT219E Professional Heavy-Duty Clamp Meter (SKU: UT219E)
• 1 x Premium Industrial Test Leads Set
• 3 x Standard 1.5V (R03) Operational Batteries
• 1 x Soft Protective Fabric Carrying Bag
• 1 x Technical PC Software Data CD Asset
• 1 x Comprehensive English Technical User Instruction Manual
