KEY FEATURES

• Unique grab mechanism with a fully retractable pincer arm yields maximum flexibility in tightly packed wire bundles.
• Non-contact current measurement architecture protects operators while testing small-diameter conductors.
• Automated measurement parameter detection automatically senses and configures the tool for AC or DC signals.
• True RMS signal processing guarantees precise values across noisy or complex electrical waveforms.
• Transient Inrush current measurement mode captures initial high-load motor startup surges.
• Large two-line LCD screen provides parallel text visibility for primary electrical values.
• Conforms to elite safety guidelines certified up to CAT IV 600V and CAT III 1000V overvoltage standards.
• Built-in diagnostic support functions include dedicated continuity testing and independent diode tests.

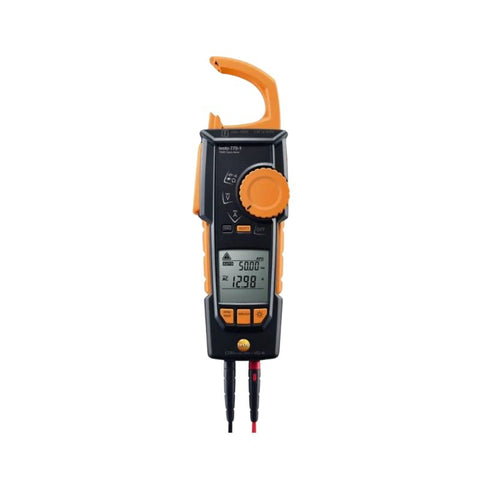

The testo 770-1 True-rms Clamp Meter delivers a highly effective and robust electrical verification framework for auditing dense commercial distribution systems, checking climate control circuitry layouts, and maintaining facility power lines. Standard entry-level service clamp meters incorporate thick, rigid hook profiles that make separating crowded wires nearly impossible without risking mechanical damage or accidental short circuits; by utilizing a innovative retractable pincer loop, this instrument ensures immediate parameter tracking with absolute user control. Field engineers can execute rapid multi-point safety surveys across raw facility boundaries, relying on high internal input resistance and automatic variable selection to maintain reliable diagnostic integrity.

ADDITIONAL FEATURES

• High-resolution 4,000 count display window incorporates bright screen lighting for poorly illuminated spaces.
• Data handling memory features dynamic Hold registries alongside continuous Min/Max parameter tracking.
• Dual measurement jack interface establishes clean contact points for standard test lead arrays.
• Broad temperature operational tolerance ensures accurate performance in field environments from -10°C up to +50°C.
• Efficient circuit design extracts stable, long-term monitoring utility out of three standard AAA micro batteries.

APPLICATIONS

• Perfectly optimized for non-contact current clamping, True RMS electrical testing, high-density wire grab diagnostics, automated AC/DC voltage checking, motor Inrush current capturing, electrical circuit continuity validation, and safety-compliant HVAC/R facility service.

PRODUCT PACKAGE INCLUDES

• 1 x testo 770-1 True-rms Clamp Meter Base Instrument (SKU: 0590-7701)
• 3 x AAA Micro Batteries (For Immediate Operational Setup)

SPECIFICATIONS

The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.

All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.

ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.

ADDITIONAL RESOURCES

PRODUCT BROCHURE

General information about the testo 770-1 True-rms Clamp Meter is mapped out in the brochure below.

DOWNLOAD
