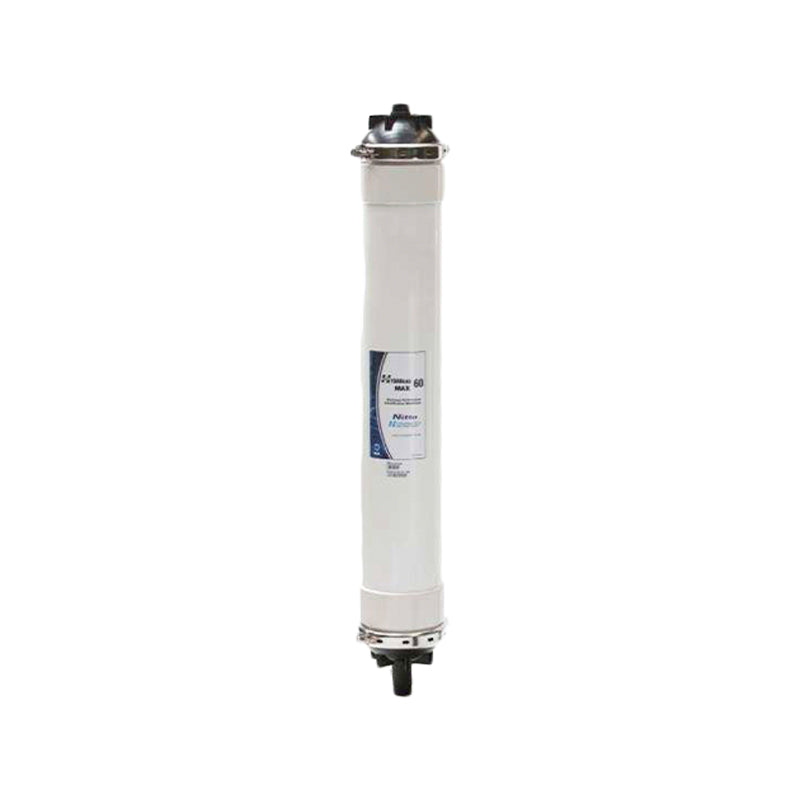

Hydranautics HHYDRAcap® MAX60, Capillary Ultrafiltration (UF) Module

Hydranautics HHYDRAcap® MAX60, Capillary Ultrafiltration (UF) Module

Product Code: HYD-HYDRACAPMAX60

HYDRAcap® MAX offers combined benefits of high recovery and low footprint due to its optimized membrane area and novel cleaning regimes. High strength PVDF membrane minimises fibre breakage rate and ensures consistently superior filtrate quality.

In Stock - Enquire about delivery options
Vendor: Hydranautics

Available

KEY FEATURES
  • Suitable for wide range of applications as either final treatment or as pretreatment to RO
  • High recovery and low footprint due to optimised membrane area
  • High strength PVDF membrane ensures consistently superior filtrate quality



HYDRAcap® MAX is a technology using ultrafiltration PVDF TIPS hollow fibers (0.08 micron pore size). The pressurized hollow fiber modules are suitable for a wide range of applications as either final treatment or as pretreatment to reverse osmosis (RO) and nanofiltration (NF).

HYDRAcap® MAX offers combined benefits of high recovery and low footprint due to its optimized membrane area and novel cleaning regimes. High strength PVDF membrane minimises fibre breakage rate and ensures consistently superior filtrate quality. This enables RO and NF systems to be operated at higher fluxes while maintaining longer intervals between cleanings. No backwash pump is required for HYDRAcap® MAX systems. Physical cleaning is performed with air scouring thanks to a unique and patented air diffuser design.

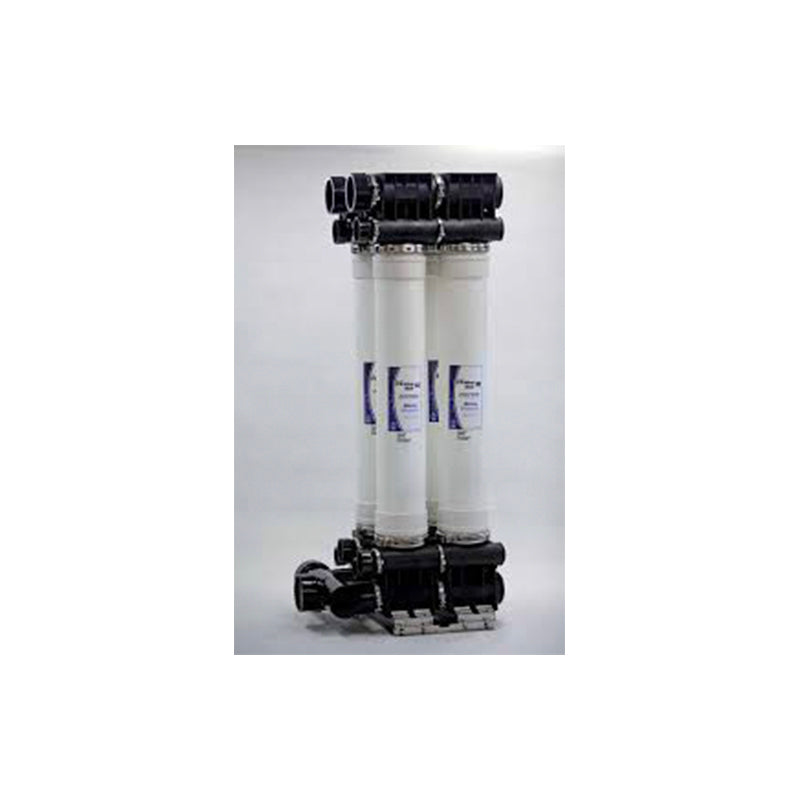

The HYDRAcap® MAX modules are compatible with the HYDRAcube system: A pre-engineered and standardised rack system where all modules connections are integrated within a single header piece. This system allows HYDRAcap® MAX modules to operate in robust conditions and in an optimized footprint environment. The HYDRAcube system is available separately and is not supplied with an individual module.



ADDITIONAL FEATURES
  • No backwash pump is required for HYDRAcap® MAX systems
  • High strength PVDF membrane minimises fibre breakage rate



APPLICATIONS
  • Commonly used in a range of commercial water treatment systems, including in industrial or municipal waste water, sea water, surface water and ground water related applications.



PRODUCT PACKAGE INCLUDES
  • Hydranautics HYDRAcap® MAX60, Capillary Ultrafiltration (UF) Module



    Brand Hydranautics
    Model HYDRAcap® MAX60
    Weight  52 kg
    Length 1,832.6 mm (72.15")
    Width 250.0 mm (9.84")
    Depth 250.0 mm (9.84")
    Membrane Type
    TIPS PVDF
    Filtrate Flow Rate 2.7 - 8.6 m³/h
    Filtrate Turbidity ≤ 0.10 NTU
    Bacteria Removal ≥ 4 log
    Max Operating Temperature 40°C
    Max Operating Pressure 73 psig (5 bar)
    pH Range - Operating 2 - 11
    Additional Details Refer to the Product Data Sheet



    The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.


    All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.


    ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.




    PRODUCT INFORMATION SHEET (PIS)

    Technical details regarding the Hydranautics HYDRAcap® MAX60, Capillary Ultrafiltration (UF) Module, are outlined in the product information sheet (PIS).

    DOWNLOAD

    KEY FEATURES
    • Suitable for wide range of applications as either final treatment or as pretreatment to RO
    • High recovery and low footprint due to optimised membrane area
    • High strength PVDF membrane ensures consistently superior filtrate quality



    HYDRAcap® MAX is a technology using ultrafiltration PVDF TIPS hollow fibers (0.08 micron pore size). The pressurized hollow fiber modules are suitable for a wide range of applications as either final treatment or as pretreatment to reverse osmosis (RO) and nanofiltration (NF).

    HYDRAcap® MAX offers combined benefits of high recovery and low footprint due to its optimized membrane area and novel cleaning regimes. High strength PVDF membrane minimises fibre breakage rate and ensures consistently superior filtrate quality. This enables RO and NF systems to be operated at higher fluxes while maintaining longer intervals between cleanings. No backwash pump is required for HYDRAcap® MAX systems. Physical cleaning is performed with air scouring thanks to a unique and patented air diffuser design.

    The HYDRAcap® MAX modules are compatible with the HYDRAcube system: A pre-engineered and standardised rack system where all modules connections are integrated within a single header piece. This system allows HYDRAcap® MAX modules to operate in robust conditions and in an optimized footprint environment. The HYDRAcube system is available separately and is not supplied with an individual module.



    ADDITIONAL FEATURES
    • No backwash pump is required for HYDRAcap® MAX systems
    • High strength PVDF membrane minimises fibre breakage rate



    APPLICATIONS
    • Commonly used in a range of commercial water treatment systems, including in industrial or municipal waste water, sea water, surface water and ground water related applications.



    PRODUCT PACKAGE INCLUDES
    • Hydranautics HYDRAcap® MAX60, Capillary Ultrafiltration (UF) Module



      SPECIFICATIONS
      Brand Hydranautics
      Model HYDRAcap® MAX60
      Weight  52 kg
      Length 1,832.6 mm (72.15")
      Width 250.0 mm (9.84")
      Depth 250.0 mm (9.84")
      Membrane Type
      TIPS PVDF
      Filtrate Flow Rate 2.7 - 8.6 m³/h
      Filtrate Turbidity ≤ 0.10 NTU
      Bacteria Removal ≥ 4 log
      Max Operating Temperature 40°C
      Max Operating Pressure 73 psig (5 bar)
      pH Range - Operating 2 - 11
      Additional Details Refer to the Product Data Sheet



      The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.


      All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.


      ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.




      ADDITIONAL RESOURCES
      PRODUCT INFORMATION SHEET (PIS)

      Technical details regarding the Hydranautics HYDRAcap® MAX60, Capillary Ultrafiltration (UF) Module, are outlined in the product information sheet (PIS).

      DOWNLOAD
