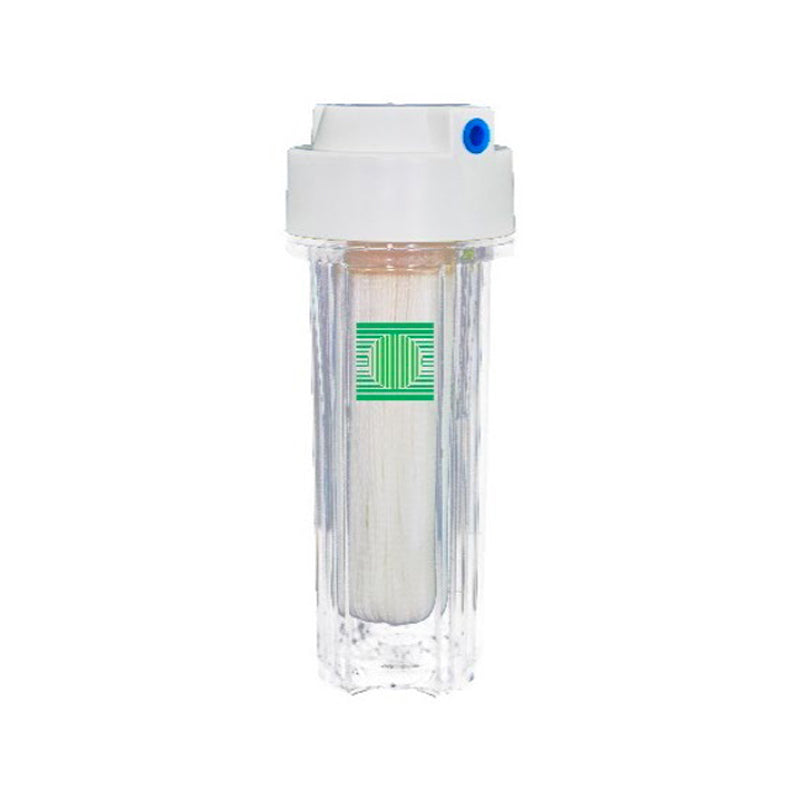

AQUADYN® UA420-BT Hollow Fiber Ultrafiltration (UF) Module, with Transparent Housing
AQUADYN® UA420-BT Hollow Fiber Ultrafiltration (UF) Module, with Transparent Housing
The AQUADYN® UA420 UF modules feature a 0.025-micron pore size Polyacrylonitrile (PAN) hollow fiber membrane potted in a U- shaped arrangement. These modules are most suitable for POU (Point-of-Use), POE (Point-of-Entry), and commercial water and wastewater treatment systems.
Vendor: Mann+Hummel
Available
KEY FEATURES
- Suitable for wide range of applications as either final treatment or as pretreatment to RO
- High recovery and low footprint due to optimised membrane area
- Operates at a very low feed pressure, resulting in energy savings
The AQUADYN® UA420 UF modules feature a 0.025-micron pore size Polyacrylonitrile (PAN) hollow fiber membrane potted in a U- shaped arrangement. These modules are most suitable for POU (Point-of-Use), POE (Point-of-Entry), and commercial water and wastewater treatment systems. They operate at a very low feed pressure due to the high hydrophilicity of PAN membrane, which leads to energy savings. The attached product specification sheet provides an overview of relevant technical data regarding AQUADYN® UA420 modules.
ADDITIONAL FEATURES
- Robust housing material ensures durability, as well as convenience of easy membrane inspection as a result of transparent housing
APPLICATIONS
- The AQUADYN® UA420 UF modules are most suitable for POU (Point-of-Use), POE (Point-of-Entry), and commercial water and wastewater treatment systems.
PRODUCT PACKAGE INCLUDES
- AQUADYN® UA420-BT Hollow Fiber Ultrafiltration (UF) Module, with Transparent Housing
SPECIFICATIONS
| Brand | AQUADYN® Mann+Hummel |
| Model | MAN-UA420-BT |
| Weight | 8 kg (17.6 lb) |
| Length | 604 mm (23.8") |
| Width | 160 mm (6.3") |
| Depth | 160 mm (6.3") |
| Feed Port | 1" NPT |
| Permeate Port | 1" NPT |
| Membrane Type |
Polyacrylonitrile (PAN) |
| Nominal Membrane Area | 6 m² |
| Membrane Type | Hollow Fibre (2.1 mm / 1.1 mm, OD / ID) |
| Nominal Pore Size | 0.025 micron |
| Filtration Flow Path | Outside - In |
| Operating Mode | Dead-End |
| Housing Material | Reinforced PP |
| Filtrate Flow Rate | 0.72 m³/h (max) |
| Max Operating Temperature | 45°C |
| Max Operating Pressure | 4 bar |
| pH Range - Operating | 2 - 10 |
| Additional Details | Refer to the Product Data Sheet |
The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.
All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.
ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.
ADDITIONAL RESOURCES
PRODUCT BROCHURE
General information about the AQUADYN® UA420-BT Hollow Fiber Ultrafiltration (UF) Module is outlined in the AQUADYN® Hollow Fiber Ultrafiltration Modules brochure.
PRODUCT INFORMATION SHEET (PIS)
Technical details regarding the AAQUADYN® UA420-BT Hollow Fiber Ultrafiltration (UF) Module, are outlined in the product information sheet (PIS).
