KEY FEATURES

• Fewer moving parts (no limit switches or pistons reversing the cleaning mechanism)
• Simpler controls and no power required (or can be integrated with external controller)
• Lowest flush flow rates and volumes

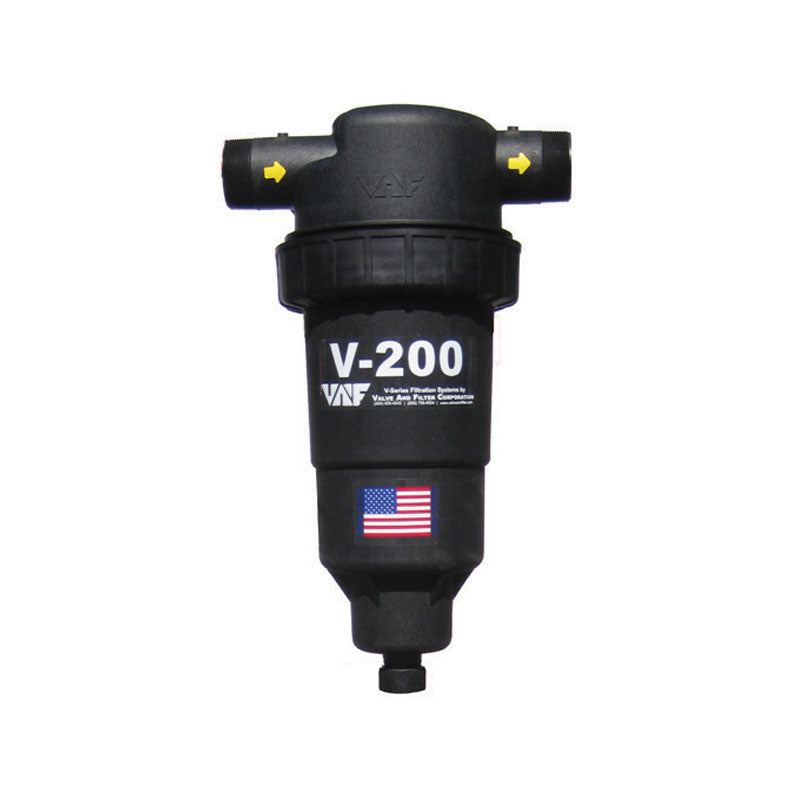

The VAF Filtration Systems V-200P filter features the most advanced and cost effective self-cleaning screen filtration technology available. Ideal for flow rates from 7 to 50 m3/hr (30 to 220 gpm), the V-200P filter offers the best value solution for automatic filtration down to 10 micron rating. The actual particulate filtration size cut-off is determined by the screen size, which is typically 100 micron, but also available in other sizes from 10 to 1500 micron (contact Parkway to confirm availability of a given micron rating).

The 10 to 15 second flush cycle is automatically initiated when a pressure differential across the screen increases to 0.5 bar (7 psi). The filter remains on-line and the filtration process is uninterrupted during the brief cleaning process. The flush discharge is among the lowest available resulting in minimal waste.

Constructed using glass reinforced nylon and 316L stainless steel, the inherently corrosion resistant materials of the V-200P filter ensure a long service life under a wide range of water quality conditions including seawater, process water, cooling tower filtration, pre-filtration to membrane, and irrigation.

ADDITIONAL FEATURES

• No power required
• Multiple pass cleaning
• Limited maintenance requirements

APPLICATIONS

• Range of water treatment related filtration options, including as a pre-treatment for downstream membrane base processes, including ultrafiltration (UF) and reverse osmosis (RO) based systems.

PRODUCT PACKAGE INCLUDES

• Evoqua VAF Filtration Systems V-200P Automatic Screen Filter
• The specific screen rating (10 - 1500 micron) will be confirmed at the time of ordering.

Additional options include a flush valve and controller, are available separately. For further details, refer to the attached data sheet.

SPECIFICATIONS

The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.

All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.

ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.

ADDITIONAL RESOURCES

PRODUCT INFORMATION SHEET (PIS)

Technical details regarding Evoqua VAF Filtration Systems V-200P Automatic Screen Filter are outlined in the product information sheet (PIS).

DOWNLOAD

PRODUCT OPERATION - TECHNICAL OVERVIEW

Further technical details regarding operating principles of the Evoqua VAF Filtration Systems V-200P Automatic Screen Filter is outlined in the following Technical Overview.

DOWNLOAD
