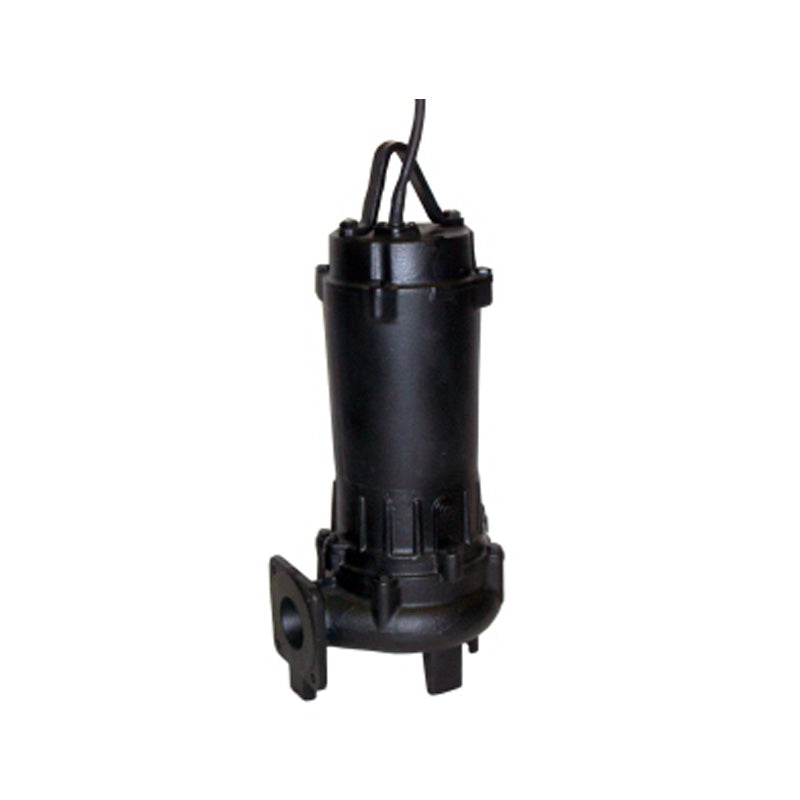

Ebara DVS 1.5kW Three Phase (Manual) Submersible Semi-Vortex Pump (EBA-50DVS51.5)

Ebara DVS 1.5kW Three Phase (Manual) Submersible Semi-Vortex Pump (EBA-50DVS51.5)

Product Code: EBA-50DVS51.5

The Ebara DVS series of submersible semi-vortex pumps are a robust cast iron pump suitable for a diverse range of industrial dewatering applications, including wastewater, dairy and sewage related applications.

$1,710.00 Excl. GST
$1,881.00 Incl. GST
Enquire about availability
Vendor: Ebara

Unavailable

KEY FEATURES
  • Robust cast iron construction, with semi vortex impeller.
  • 2900 RPM, Class F, air filled submersible motor.
  • Double mechanical seal in oil chamber with SiC/SiC lower faces and Carbon/Ceramic upper faces.
  • Built in overload protection.



The Ebara DVS series of submersible semi-vortex pumps are a robust cast iron pump suitable for a diverse range of industrial applications.



ADDITIONAL FEATURES
  • Robust cast iron construction, with semi vortex impeller.
  • 2900 RPM, Class F, air filled submersible motor.
  • Double mechanical seal in oil chamber with SiC/SiC lower faces and Carbon/Ceramic upper faces.
  • Built in overload protection.



APPLICATIONS

The Ebara DVS submersible semi-vortex pump range is suitable for range of dewatering related applications including:

  • Wastewater applications with soft or fibrous material.
  • Dairy and agricultural wash down.
  • Septic effluent.
  • Food processing plants.


PRODUCT PACKAGE INCLUDES
  • Ebara DVS 1.5kW Three Phase (Manual) Submersible Semi-Vortex Pump (EBA-50DVS51.5)



    Brand Ebara
    Model EBA-50DVS51.5
    Dimensions
    Weight  30 kg
    Length 230 mm
    Width 460 mm
    Depth 260 mm
    Maximum Flow Rate 310 L/min
    Maximum Head 21 m
    Float Switch

    No float switch option for the DVS model.

    If a float switch is required, an alternate model, the DVSA range, incorporating a float switch may be the best option.



    Power Rating - Max Output 1.5 kW (3 phase, 50 Hz Power Supply)
    Electrical Cable Length 6 m
    Maximum Solids Handling 32 mm
    Discharge Connection Supplied with screwed companion flange, gaskets & fasteners



    The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.


    All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.


    ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.




    PRODUCT BROCHURE

    Additional information about the Ebara pump range is outlined in the Ebara Australia product range brochure.

    DOWNLOAD
    KEY FEATURES
    • Robust cast iron construction, with semi vortex impeller.
    • 2900 RPM, Class F, air filled submersible motor.
    • Double mechanical seal in oil chamber with SiC/SiC lower faces and Carbon/Ceramic upper faces.
    • Built in overload protection.



    The Ebara DVS series of submersible semi-vortex pumps are a robust cast iron pump suitable for a diverse range of industrial applications.



    ADDITIONAL FEATURES
    • Robust cast iron construction, with semi vortex impeller.
    • 2900 RPM, Class F, air filled submersible motor.
    • Double mechanical seal in oil chamber with SiC/SiC lower faces and Carbon/Ceramic upper faces.
    • Built in overload protection.



    APPLICATIONS

    The Ebara DVS submersible semi-vortex pump range is suitable for range of dewatering related applications including:

    • Wastewater applications with soft or fibrous material.
    • Dairy and agricultural wash down.
    • Septic effluent.
    • Food processing plants.


    PRODUCT PACKAGE INCLUDES
    • Ebara DVS 1.5kW Three Phase (Manual) Submersible Semi-Vortex Pump (EBA-50DVS51.5)



      SPECIFICATIONS
      Brand Ebara
      Model EBA-50DVS51.5
      Dimensions
      Weight  30 kg
      Length 230 mm
      Width 460 mm
      Depth 260 mm
      Maximum Flow Rate 310 L/min
      Maximum Head 21 m
      Float Switch

      No float switch option for the DVS model.

      If a float switch is required, an alternate model, the DVSA range, incorporating a float switch may be the best option.



      Power Rating - Max Output 1.5 kW (3 phase, 50 Hz Power Supply)
      Electrical Cable Length 6 m
      Maximum Solids Handling 32 mm
      Discharge Connection Supplied with screwed companion flange, gaskets & fasteners



      The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.


      All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.


      ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.




      ADDITIONAL RESOURCES
      PRODUCT BROCHURE

      Additional information about the Ebara pump range is outlined in the Ebara Australia product range brochure.

      DOWNLOAD
