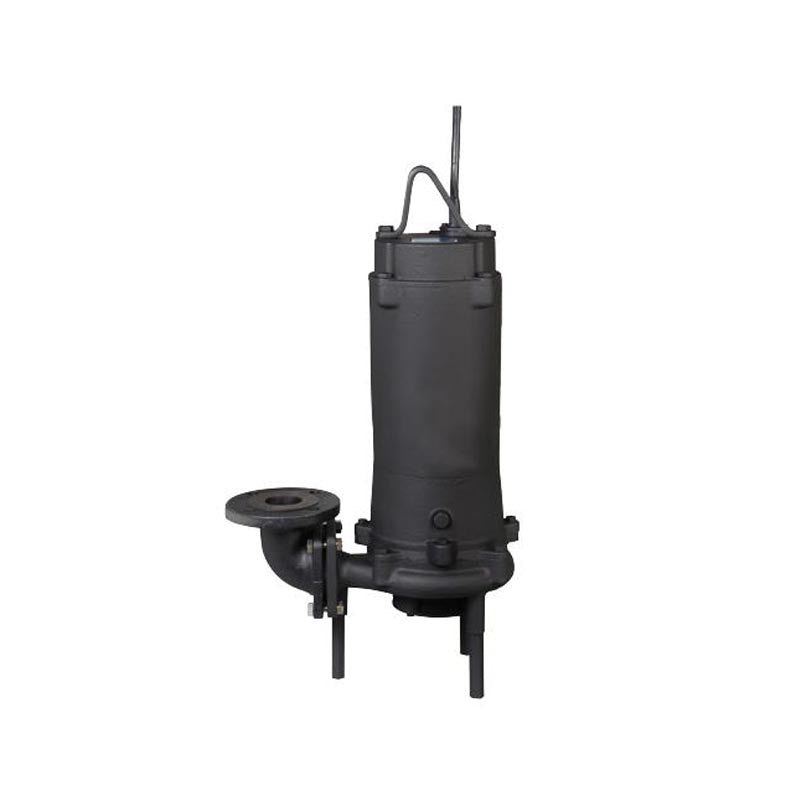

Ebara DG 1.5kW Three Phase (Manual) Submersible Grinder Pump (EBA-40DG51.5)
Ebara DG 1.5kW Three Phase (Manual) Submersible Grinder Pump (EBA-40DG51.5)
The Ebara three Phase (Manual) DG series submersible grinder pumps of high quality and reliability; of robust cast iron construction are suitable for domestic sewage, small scale pressure sewage systems and grey wastewater containing soft solids applications.
Vendor: Ebara
Unavailable
KEY FEATURES
- Powerful grinder mechanism
- Vortex impeller
- Robust cast iron construction
- High torque motor with double row lower bearing
- 2900 RPM, Class F, air-filled submersible motor
- Double mechanical seal in oil chamber with SiC/SiC lower faces and Carbon/Ceramic upper faces
- Built-in overload protection
- Screwed companion flanges
The Ebara three Phase (Manual) DG series submersible grinder pumps of high quality and reliability; of robust cast iron construction are suitable for domestic sewage, small scale pressure sewage systems and grey wastewater containing soft solids applications.
ADDITIONAL FEATURES
- High torque motor
- Double row lower bearing
- Powerful grinding mechanism
- Non clogging vortex impeller
APPLICATIONS
- Domestic sewage
- Small scale pressure sewage systems
- Grey wastewater containing soft solids
PRODUCT PACKAGE INCLUDES
- Ebara DG 1.5kW Three Phase (Manual) Submersible Grinder Pump (EBA-40DG51.5)
SPECIFICATIONS
| Brand | Ebara |
| Model | EBA-40DG51.5 |
| Dimensions | |
| Weight | 48 kg |
| Length | 800 mm |
| Width | 360 mm |
| Depth | 320 mm |
| Maximum Flow Rate | 110 L/min |
| Maximum Head | 24 m |
| Float Switch | No float switch option for the DG model. |
| Power Rating - Max Output | 1.5 kW (3 phase, 50 Hz Power Supply) |
| Electrical Cable Length | 10 m |
| Maximum Solids Handling | - |
| Discharge Connection | Discharge elbow kit is not included. |
The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.
All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.
ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.
ADDITIONAL RESOURCES
PRODUCT BROCHURE
Additional information about the Ebara pump range is outlined in the Ebara Australia product range brochure.
DOWNLOAD
Additional information about the Ebara DG Submersible Grinder Pump product range is outlined in the following brochure.
Technical information about the Ebara DG Submersible Grinder Pump product range is outlined in the following brochure.
DOWNLOAD
