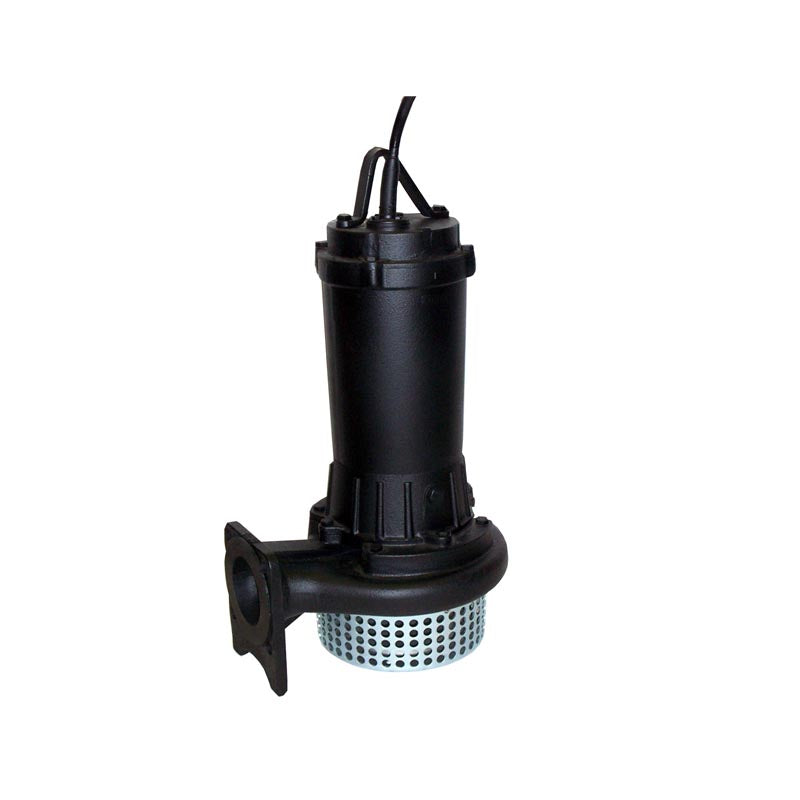

Ebara DS 7.5kW Three Phase (Manual) Submersible Sump Pump (EBA-100DS57.5)

Ebara DS 7.5kW Three Phase (Manual) Submersible Sump Pump (EBA-100DS57.5)

Product Code: EBA-100DS57.5

The Ebara DS series of submersible sump pumps are robust cast iron pumps suitable for purification tank drainage, rain and spring water drainage, and water supply applications.

$5,685.00 Excl. GST
$6,253.50 Incl. GST
Enquire about availability
Vendor: Ebara

Unavailable

KEY FEATURES
  • Robust cast iron construction, with open impeller and strainer.
  • 2900 RPM, Class F, air-filled submersible motor.
  • Double mechanical seal in oil chamber with SiC/SiC lower faces and Carbon/Ceramic upper faces.
  • Built in overload protection.
  • Discharge elbow kit included.



The Ebara DS series of submersible sump pumps are a robust cast iron pump suitable for purification tank drainage, rain and spring water drainage and water supply applications.



ADDITIONAL FEATURES
  • Double mechanical seal in oil chamber
  • Robust construction and compact design
  • In built motor protection
  • High Heads



APPLICATIONS
  • Purification tank drainage
    Rain and spring water drainage
    Water supply

PRODUCT PACKAGE INCLUDES
  • Ebara DS 7.5kW Three Phase (Manual) Submersible Sump Pump (EBA-100DS57.5)



    Brand Ebara
    Model EBA-100DS57.5
    Dimensions
    Weight  112 kg
    Length 890 mm
    Width 470 mm
    Depth 380 mm
    Maximum Flow Rate 1500 L/min
    Maximum Head 39 m
    Float Switch No float switch option for the DS model.
    Power Rating - Max Output 7.5 kW (3 phase, 50 Hz Power Supply)
    Electrical Cable Length 10 m
    Maximum Solids Handling 8 mm
    Discharge Connection Discharge elbow kit included.



    The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.


    All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.


    ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.




    PRODUCT BROCHURE

    Additional information about the Ebara pump range is outlined in the Ebara Australia product range brochure.

    DOWNLOAD

    Additional information about the Ebara DS Submersible Sump Pump product range is outlined in the following brochure.

    DOWNLOAD

    Technical information about the Ebara DS Submersible Sump Pump product range  is outlined in the following brochure.

    DOWNLOAD



    KEY FEATURES
    • Robust cast iron construction, with open impeller and strainer.
    • 2900 RPM, Class F, air-filled submersible motor.
    • Double mechanical seal in oil chamber with SiC/SiC lower faces and Carbon/Ceramic upper faces.
    • Built in overload protection.
    • Discharge elbow kit included.



    The Ebara DS series of submersible sump pumps are a robust cast iron pump suitable for purification tank drainage, rain and spring water drainage and water supply applications.



    ADDITIONAL FEATURES
    • Double mechanical seal in oil chamber
    • Robust construction and compact design
    • In built motor protection
    • High Heads



    APPLICATIONS
    • Purification tank drainage
      Rain and spring water drainage
      Water supply

    PRODUCT PACKAGE INCLUDES
    • Ebara DS 7.5kW Three Phase (Manual) Submersible Sump Pump (EBA-100DS57.5)



      SPECIFICATIONS
      Brand Ebara
      Model EBA-100DS57.5
      Dimensions
      Weight  112 kg
      Length 890 mm
      Width 470 mm
      Depth 380 mm
      Maximum Flow Rate 1500 L/min
      Maximum Head 39 m
      Float Switch No float switch option for the DS model.
      Power Rating - Max Output 7.5 kW (3 phase, 50 Hz Power Supply)
      Electrical Cable Length 10 m
      Maximum Solids Handling 8 mm
      Discharge Connection Discharge elbow kit included.



      The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.


      All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.


      ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.




      ADDITIONAL RESOURCES
      PRODUCT BROCHURE

      Additional information about the Ebara pump range is outlined in the Ebara Australia product range brochure.

      DOWNLOAD

      Additional information about the Ebara DS Submersible Sump Pump product range is outlined in the following brochure.

      DOWNLOAD

      Technical information about the Ebara DS Submersible Sump Pump product range  is outlined in the following brochure.

      DOWNLOAD
