Ebara DMLV 15kW Three Phase (Manual) Submersible Vortex Pump (EBA-100DMLV515L)

Ebara DMLV 15kW Three Phase (Manual) Submersible Vortex Pump (EBA-100DMLV515L)

Product Code: EBA-100DMLV515L

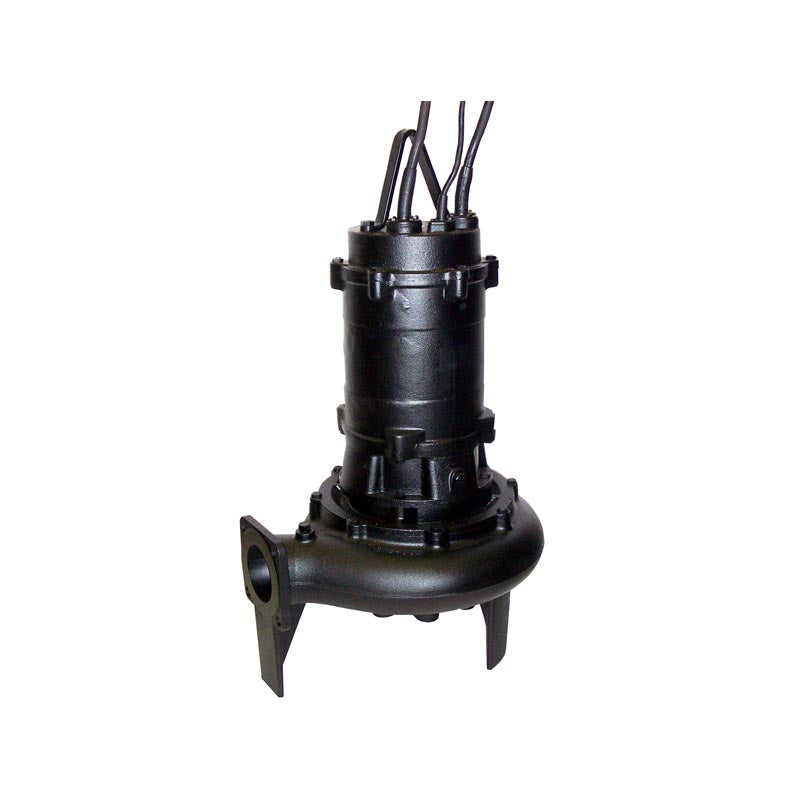

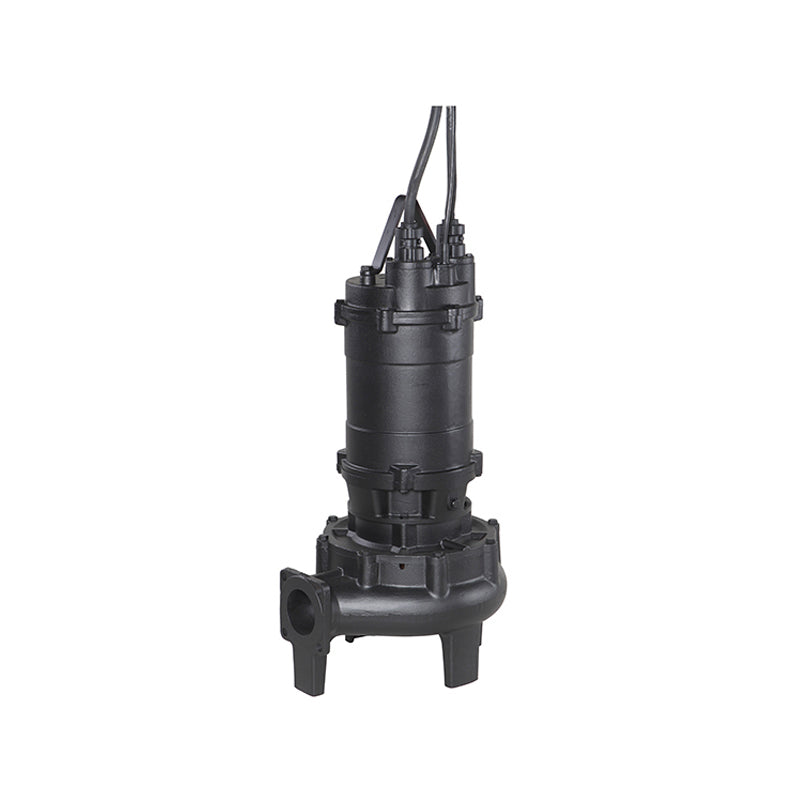

The Ebara DMLV series of submersible vortex pumps are a robust cast iron pump suitable for sewage, waste water and storm water drainage applications.

$11,730.00 Excl. GST
$12,903.00 Incl. GST
Enquire about availability
Vendor: Ebara

Unavailable

KEY FEATURES
  • Robust cast iron construction, with vortex impeller.
  • Double row lower bearing.
  • 1450 RPM, Class F,air filled submersible motor.
  • Double mechanical seal in oil chamber with SiC/SiC lower faces and Carbon/Ceramic upper faces.
  • Built in overload protection.



The Ebara DMLV series of submersible vortex pumps are a robust cast iron pump suitable for sewage, waste water and storm water drainage applications.



ADDITIONAL FEATURES
  • Robust cast iron construction, with vortex impeller.
  • Double row lower bearing.
  • 1450 RPM, Class F,air filled submersible motor.
  • Double mechanical seal in oil chamber with SiC/SiC lower faces and Carbon/Ceramic upper faces.
  • Built in overload protection.



APPLICATIONS
  • Sewage
  • Waste water
  • Storm water drainage

PRODUCT PACKAGE INCLUDES
  • Ebara DMLV 15kW Three Phase (Manual) Submersible Vortex Pump (EBA-100DMLV515L)



    Brand Ebara
    Model EBA-100DMLV515L
    Dimensions
    Weight  203 kg
    Length 1190 mm
    Width 660 mm
    Depth 570 mm
    Maximum Flow Rate 2800 L/min
    Maximum Head 24 m
    Float Switch No float switch option for the DMLV model.
    Power Rating - Max Output 15 kW (3 phase, 50 Hz Power Supply)
    Electrical Cable Length 10 m
    Maximum Solids Handling 100 mm
    Discharge Connection Discharge elbow kit included.



    The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.


    All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.


    ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.




    PRODUCT BROCHURE

    Additional information about the Ebara pump range is outlined in the Ebara Australia product range brochure.

    DOWNLOAD

    Additional information about the Ebara DMLV Three Phase (Manual) Submersible Vortex Pump product range is outlined in the following brochure.

    DOWNLOAD

    Technical information about the Ebara DMLV Three Phase (Manual) Submersible Vortex Pump product range is outlined in the following brochure.

    DOWNLOAD



    KEY FEATURES
    • Robust cast iron construction, with vortex impeller.
    • Double row lower bearing.
    • 1450 RPM, Class F,air filled submersible motor.
    • Double mechanical seal in oil chamber with SiC/SiC lower faces and Carbon/Ceramic upper faces.
    • Built in overload protection.



    The Ebara DMLV series of submersible vortex pumps are a robust cast iron pump suitable for sewage, waste water and storm water drainage applications.



    ADDITIONAL FEATURES
    • Robust cast iron construction, with vortex impeller.
    • Double row lower bearing.
    • 1450 RPM, Class F,air filled submersible motor.
    • Double mechanical seal in oil chamber with SiC/SiC lower faces and Carbon/Ceramic upper faces.
    • Built in overload protection.



    APPLICATIONS
    • Sewage
    • Waste water
    • Storm water drainage

    PRODUCT PACKAGE INCLUDES
    • Ebara DMLV 15kW Three Phase (Manual) Submersible Vortex Pump (EBA-100DMLV515L)



      SPECIFICATIONS
      Brand Ebara
      Model EBA-100DMLV515L
      Dimensions
      Weight  203 kg
      Length 1190 mm
      Width 660 mm
      Depth 570 mm
      Maximum Flow Rate 2800 L/min
      Maximum Head 24 m
      Float Switch No float switch option for the DMLV model.
      Power Rating - Max Output 15 kW (3 phase, 50 Hz Power Supply)
      Electrical Cable Length 10 m
      Maximum Solids Handling 100 mm
      Discharge Connection Discharge elbow kit included.
