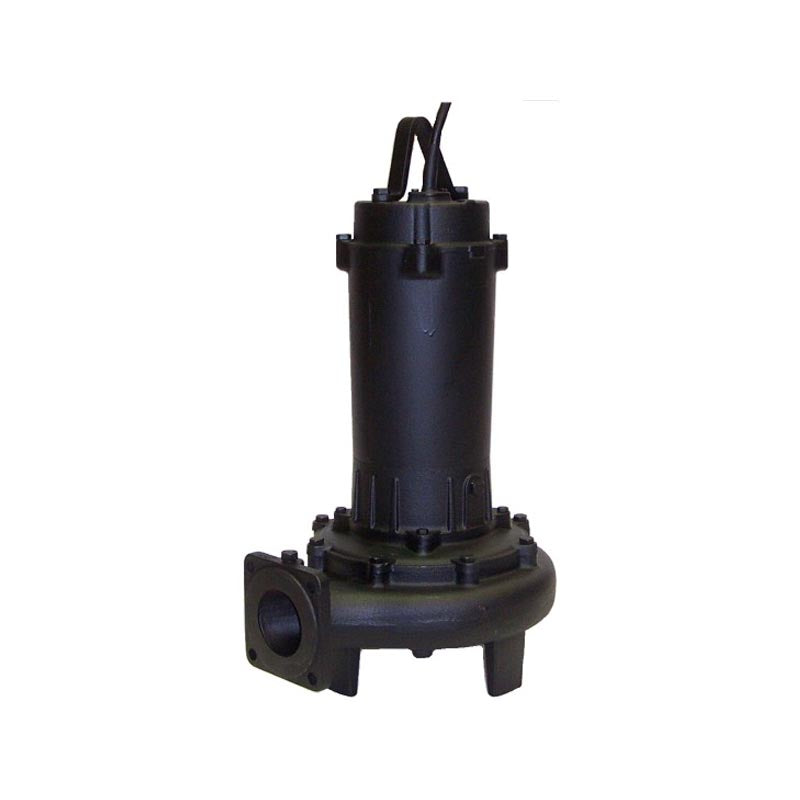

Ebara DF 1.5kW Three Phase (Manual) Submersible Sewage Pump (EBA-65DF51.5)

Ebara DF 1.5kW Three Phase (Manual) Submersible Sewage Pump (EBA-65DF51.5)

Product Code: EBA-65DF51.5

The Ebara DF series hree Phase (Manual) submersible sewage pumps with non-clog semi open impeller, with “cutting effect”, to prevent clogging by fibrous matter are suitable for sewage, wastewater, storm water drainage, etc.

$2,780.00 Excl. GST
$3,058.00 Incl. GST
Enquire about availability
Vendor: Ebara

Unavailable

KEY FEATURES
  • Robust cast iron construction, with non-clog semi open impeller with "cutting" effect.
  • 1450 RPM, Class F, air-filled submersible motor.
  • Double mechanical seal in oil chamber with SiC/SiC lower faces and Carbon/Ceramic upper faces.
  • Built in overload protection.
  • Discharge elbow kit included.



The Ebara DF series hree Phase (Manual) submersible sewage pumps with non-clog semi open impeller, with “cutting effect”, to prevent clogging by fibrous matter are suitable for sewage, wastewater, storm water drainage, etc.



ADDITIONAL FEATURES
  • Non-clog operation with "cutting" action.
  • Robust construction
  • Double mechanical seal in oil chamber
  • In built motor protection



APPLICATIONS
  • Sewage
  • Waste water
  • Storm water drainage

PRODUCT PACKAGE INCLUDES
  • Ebara DF 1.5kW Three Phase (Manual) Submersible Sewage Pump (EBA-65DF51.5)



    Brand Ebara
    Model EBA-65DF51.5
    Dimensions
    Weight  61 kg
    Length 820 mm
    Width 340 mm
    Depth 410 mm
    Maximum Flow Rate 400 L/min
    Maximum Head 39 m
    Float Switch No float switch option for the DS model.
    Power Rating - Max Output 1.5 kW (3 phase, 50 Hz Power Supply)
    Electrical Cable Length 10 m
    Maximum Solids Handling 40 mm
    Discharge Connection Discharge elbow kit included.



    The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.


    All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.


    ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.




    PRODUCT BROCHURE

    Additional information about the Ebara pump range is outlined in the Ebara Australia product range brochure.

    DOWNLOAD

    Additional information about the Ebara DF Submersible Sewage Pump product range is outlined in the following brochure.

    DOWNLOAD

    Technical information about the Ebara DF Submersible Sewage Pump product range  is outlined in the following brochure.

    DOWNLOAD



    KEY FEATURES
    • Robust cast iron construction, with non-clog semi open impeller with "cutting" effect.
    • 1450 RPM, Class F, air-filled submersible motor.
    • Double mechanical seal in oil chamber with SiC/SiC lower faces and Carbon/Ceramic upper faces.
    • Built in overload protection.
    • Discharge elbow kit included.



    The Ebara DF series hree Phase (Manual) submersible sewage pumps with non-clog semi open impeller, with “cutting effect”, to prevent clogging by fibrous matter are suitable for sewage, wastewater, storm water drainage, etc.



    ADDITIONAL FEATURES
    • Non-clog operation with "cutting" action.
    • Robust construction
    • Double mechanical seal in oil chamber
    • In built motor protection



    APPLICATIONS
    • Sewage
    • Waste water
    • Storm water drainage

    PRODUCT PACKAGE INCLUDES
    • Ebara DF 1.5kW Three Phase (Manual) Submersible Sewage Pump (EBA-65DF51.5)



      SPECIFICATIONS
      Brand Ebara
      Model EBA-65DF51.5
      Dimensions
      Weight  61 kg
      Length 820 mm
      Width 340 mm
      Depth 410 mm
      Maximum Flow Rate 400 L/min
      Maximum Head 39 m
      Float Switch No float switch option for the DS model.
      Power Rating - Max Output 1.5 kW (3 phase, 50 Hz Power Supply)
      Electrical Cable Length 10 m
      Maximum Solids Handling 40 mm
      Discharge Connection Discharge elbow kit included.



      The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.


      All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.


      ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.




      ADDITIONAL RESOURCES
      PRODUCT BROCHURE

      Additional information about the Ebara pump range is outlined in the Ebara Australia product range brochure.

      DOWNLOAD

      Additional information about the Ebara DF Submersible Sewage Pump product range is outlined in the following brochure.

      DOWNLOAD

      Technical information about the Ebara DF Submersible Sewage Pump product range  is outlined in the following brochure.

      DOWNLOAD
