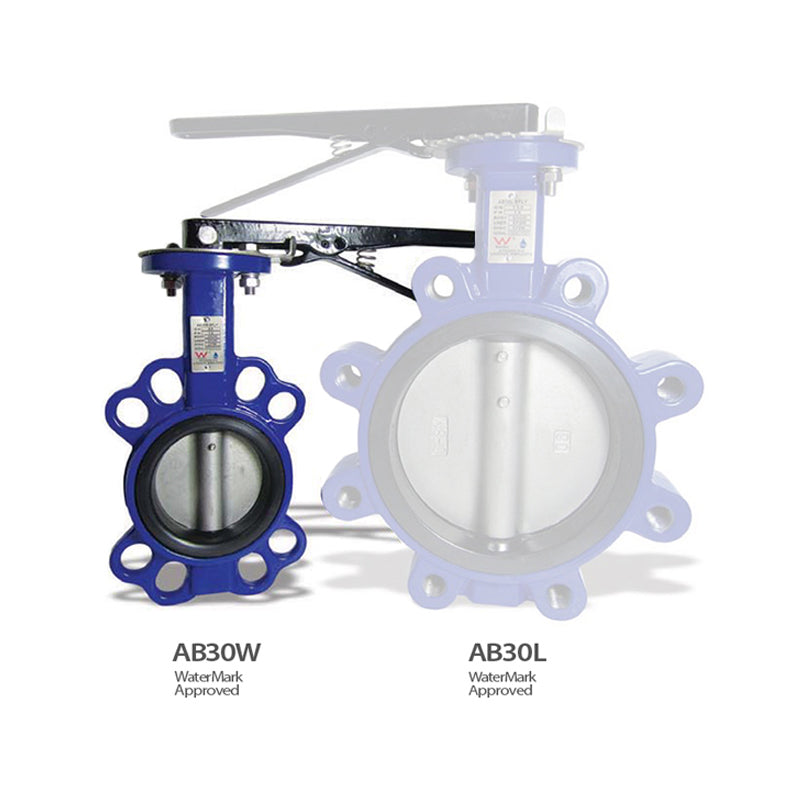

AVFI 50 mm (DN50) Butterfly Valve - Wafer Type

AVFI 50 mm (DN50) Butterfly Valve - Wafer Type

Product Code: AVF-AB30W-050-WM

The 50 mm WaterMark approved butterfly valve has an ISO top mounting flange for easy actuation as well as a phenolically backed replaceable liner.

$124.80 Excl. GST
$137.28 Incl. GST
In Stock - Available for Fast Delivery
Vendor: AVFI

Available

KEY FEATURES
  • Practical WaterMark approved butterfly valve
  • ISO top mounting flange for easy actuation
  • Bi-directional bubble tight sealing, with no leakage under pressure



The 50 mm WaterMark approved butterfly valve has an ISO top mounting flange for easy actuation as well as a phenolically backed replaceable liner. This practical butterfly valve design is commonly utilised in a range of water and wastewater treatment related applications.



ADDITIONAL FEATURES
  • Phenolically backed replaceable liner
  • Stainless steel fasteners (in valve assembly)
  • Dimensions and leakage test follow AS4795
  • Fusion bonded epoxy coating of ductile iron bodied valve



APPLICATIONS
  • Water pumping and transfer related applications



PRODUCT PACKAGE INCLUDES
  • AVFI 50 mm (DN50) Butterfly Valve - Wafer Type



    Brand AVFI
    Weight  2,780 g
    Length 317 mm
    Width 235 mm
    Depth 112 mm
    Material Specification & Parts List
    Body Ductile iron (fusion bonded epoxy coated)
    Bushing PTFE
    O-Ring NBR
    Stem Stainless steel
    Disc Stainless steel 316
    Seat EPDM
    Notch Plate & Fasteners Stainless steel
    Nominal Pressure PN16
    Test (strength test) 24 bar
    Pressure (strength test) 17.6 bar
    Working Temperature -25oC to +100oC



    The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.


    All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.


    ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.




    PRODUCT INFORMATION SHEET (PIS)

    Additional information about the 50 mm (DN50) Butterfly Valve, is outlined in the AVF-AB30W butterfly valve range, product information sheet (PIS).

    DOWNLOAD

    KEY FEATURES
    • Practical WaterMark approved butterfly valve
    • ISO top mounting flange for easy actuation
    • Bi-directional bubble tight sealing, with no leakage under pressure



    The 50 mm WaterMark approved butterfly valve has an ISO top mounting flange for easy actuation as well as a phenolically backed replaceable liner. This practical butterfly valve design is commonly utilised in a range of water and wastewater treatment related applications.



    ADDITIONAL FEATURES
    • Phenolically backed replaceable liner
    • Stainless steel fasteners (in valve assembly)
    • Dimensions and leakage test follow AS4795
    • Fusion bonded epoxy coating of ductile iron bodied valve



    APPLICATIONS
    • Water pumping and transfer related applications



    PRODUCT PACKAGE INCLUDES
    • AVFI 50 mm (DN50) Butterfly Valve - Wafer Type



      SPECIFICATIONS
      Brand AVFI
      Weight  2,780 g
      Length 317 mm
      Width 235 mm
      Depth 112 mm
      Material Specification & Parts List
      Body Ductile iron (fusion bonded epoxy coated)
      Bushing PTFE
      O-Ring NBR
      Stem Stainless steel
      Disc Stainless steel 316
      Seat EPDM
      Notch Plate & Fasteners Stainless steel
      Nominal Pressure PN16
      Test (strength test) 24 bar
      Pressure (strength test) 17.6 bar
      Working Temperature -25oC to +100oC



      The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.


      All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.


      ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.




      ADDITIONAL RESOURCES
      PRODUCT INFORMATION SHEET (PIS)

      Additional information about the 50 mm (DN50) Butterfly Valve, is outlined in the AVF-AB30W butterfly valve range, product information sheet (PIS).

      DOWNLOAD
