KEY FEATURES

• High performance booster pump set supplied on stainless steel base frame

• Supplied as a complete system with all fittings, instrumentation and controls

• Versatile pump set with compact footprint allowing rapid installation

THE PREMIUM CHOICE FOR ANY JOB

The Hydro MPC is Grundfos’ premium product in the Hydro Booster portfolio. A long list of special features makes it able to handle the operational challenges of any water boosting application. Its easy BMS integration makes it the preferred choice for complex systems and highly technological applications.

The Grundfos Hydro MPC-E Packaged Pump System is a complete pump set with pumps, valves, suction and discharge manifolds, mounted on a common base. The pump system includes a Control panel designed to Grundfos specification. The Pressure booster system is supplied as compact assembly according to DIN standard 1988/T5.

The Grundfos Hydro MPC-E boosting Package is comprised of the following components:

• Pump parts in contact with the pumped liquid are manufactured in stainless steel EN DIN 1.4301.
• Pump bases and heads are stainless steel (CRI).
• The pumps are equipped with a service-friendly cartridge shaft seal, HQQE (Silicon Carbide/Silicon Carbide/ EPDM).
• Pumps are fitted motors, the Grundfos MGE IE5 premium efficiency permanent magnet motors.
• Manifolds - Two manifolds of stainless steel EN DIN 1.4301 and incorporate loose-ring, epoxy coated, aluminium inlet/outlet flanges to DIN dimension.
• Modular base frame - Pumps are mounted to a common base frame manufactured in either folded and welded stainless steel or hot dip galvanized fabricated mild steel (system size dependant).
• One non-return valve (POM) and two isolating valves for each pump.

ADDITIONAL FEATURES

• The Grundfos Hydro MPC-E maintains a constant pressure through continuous adjustment of the speed of the pumps irrespective of the flow rate
• The system performance is adapted to the demand through cutting in/out the required number of pumps and through parallel control of the pumps in operation i.e. cascade.
• Pump changeover is automatic and depends on load, time and fault.

APPLICATIONS

• Drip/Micro Spray

• Frost protection

• Pivot

• Agricultural Surface Water

• Commercial heating

• Commercial water pressure boosting

• District cooling

• District heating

• Drinking water treatment

• Irrigation

• Cooling

• Desalination

• Industrial heating

• Wash and clean

• Industrial water supply

• Water distribution

• Wastewater treatment

PRODUCT PACKAGE INCLUDES

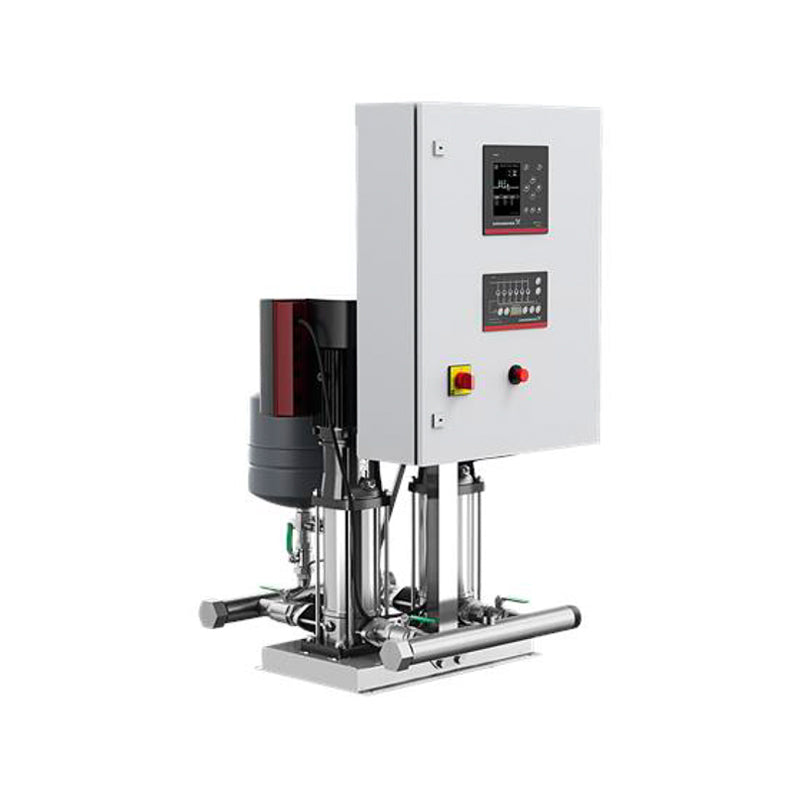

• Grundfos Hydro MPC E 2 CRIE 20-4 Booster Pump Set
• Incorporates all instrumentation, controls and fittings, including, pressure transmitters, pressure gauge, isolating valve, non-return valve, pressure tank and a stainless steel discharge manifold (for full details of inclusions refer to the product information sheet) to form complete system
• Grundfos pump set is supplied mounted on a common base frame made of stainless steel

SPECIFICATIONS

The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.

All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.

ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.

ADDITIONAL RESOURCES

PRODUCT BROCHURE

General information about the Grundfos Hydro MPC E Booster Pump Set range is outlined in the Grundfos Hydro MPC E Booster Pump Set brochure.

DOWNLOAD

PRODUCT INFORMATION SHEET (PIS)

Detailed information about the Grundfos Hydro MPC E 2 CRIE 20-4 Booster Pump Set is outlined in the product information sheet.

DOWNLOAD

USER MANUAL

The installation and operating instructions for this product are detailed in the below user manual.

DOWNLOAD
