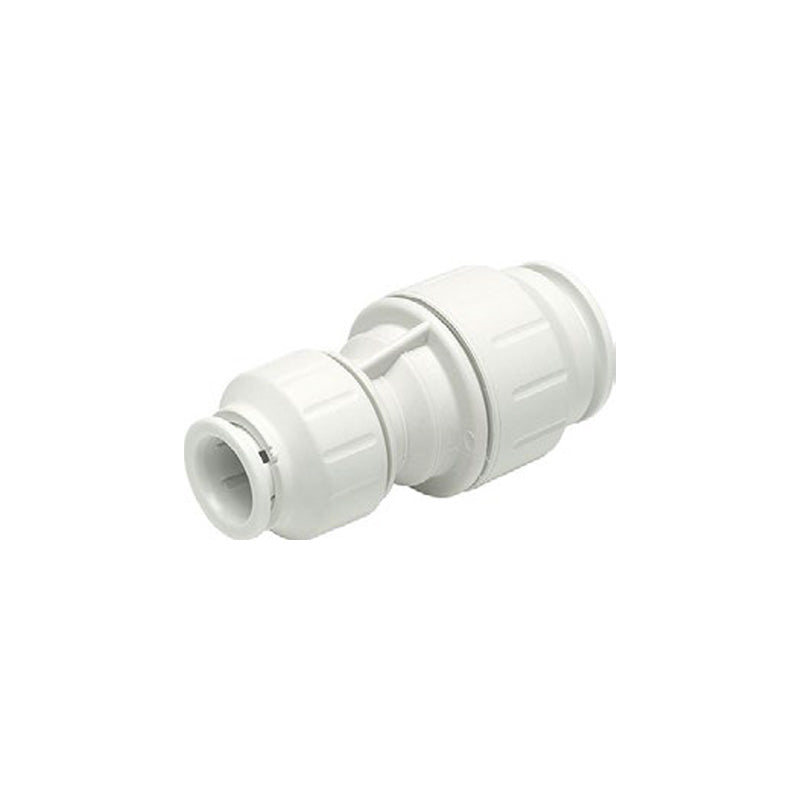

John Guest 22mm x 15mm Reducing Straight Connector - White
John Guest 22mm x 15mm Reducing Straight Connector - White
John Guest Speedfit Twist and Lock fittings have a unique grip-then-seal construction, made up of a collet with stainless steel teeth to grip the pipe, and an O-Ring to provide a permanent leak proof seal.
Vendor: John Guest
Available
KEY FEATURES
- State-of-art push-fit technology from John Guest
- Quick disconnection without the need for tools
- Full product range including fittings, tubing & accessories stocked in Australia by Parkway
John Guest reducing straight connector push-fit fitting for the connection of two equal pipe sizes. Simply push the push-fit fitting fully onto the pipe and twist the plastic nut clockwise to lock in place. To demount the connection, unlock the nut by hand and push the collet towards the body of the push-fit fitting and pull the pipe to release.
The JG Speedfit reducing straight connector push-fit fitting is up to 40% faster to install than traditional methods and is easier to use in confined spaces by removing the need for hot works and tools.
ADDITIONAL FEATURES
- Instant push-fit connection
- Install and demount in seconds without tools
- Safe flame-free installation, with no hot works, glue or flux
- Grip & Seal collet with stainless steel teeth and main O-Ring seal
- Twist & Lock mechanism secures fitting and adds compression
- Non-toxic, resists corrosion and no scale build-up
- Compatible with Speedfit PEX and polybutylene plastic pipe (inserts required) and copper pipe
- Suitable for hot and cold water and central heating systems
APPLICATIONS
- Hot and cold water and central heating systems
PRODUCT PACKAGE INCLUDES
- John Guest 22mm x 15mm Reducing Straight Connector - White
INSTALLATION INSTRUCTIONS
SPECIFICATIONS
| Brand | John Guest |
| Model | JGU-PEM202215W |
| Size | 22mm x 15mm outside diameter (OD) pipe. |
| Weight | - g |
| Length | - mm |
| Width | - mm |
| Depth | - mm |
| Material | Plastic |
The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.
All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.
ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.
ADDITIONAL RESOURCES
PRODUCT INFORMATION SHEET (PIS)
Additional information about the John Guest range of specialty fittings, valves, tube and accessories is outlined in the John Guest Technical Manual.
DOWNLOAD
