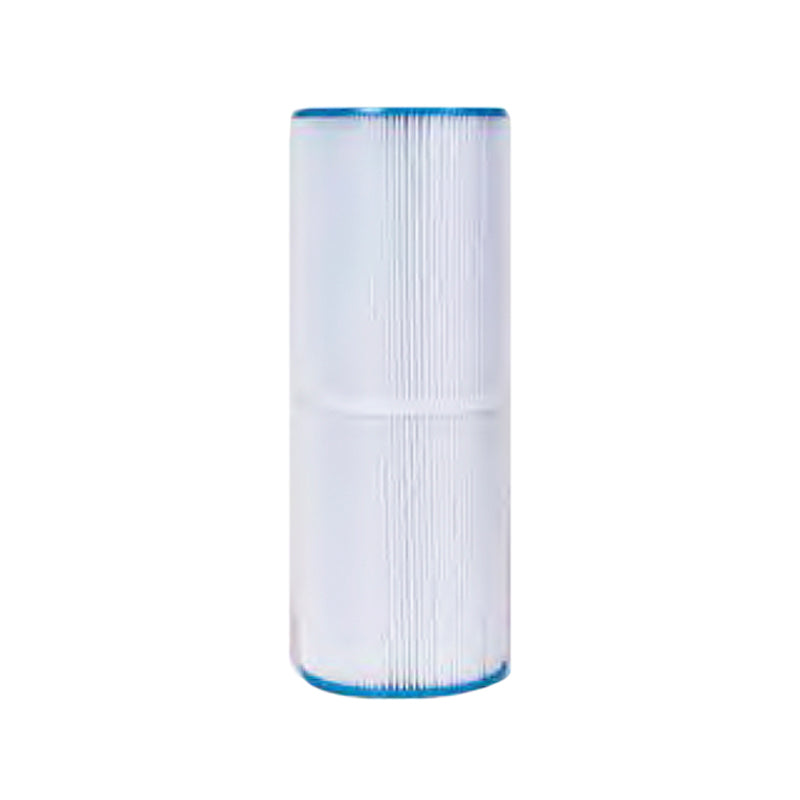

Waterco Trimline 740 mm Pleated Polyester Filter Cartridge (30 micron), for C75 Housing
Waterco Trimline 740 mm Pleated Polyester Filter Cartridge (30 micron), for C75 Housing
The Waterco Trimline pleated filter cartridges are fabricated from pleated reusable polyester fabric which effectively filters out suspended solids from a range of process streams in water treatment related applications.
Vendor: Waterco
Available
KEY FEATURES
- Washable pleated polyester filter cartridge
- Suitable for high flow rate with minimal pressure loss while maintaining a high quality of filtration
- Nominally rated at 30 μm, micron
The Waterco Trimline pleated filter cartridges are fabricated from pleated reusable polyester fabric which effectively filters out suspended solids from a range of process streams in water treatment related applications. The filter media has been pleated to provide a large surface area in order to maximise the cartridge dirt holding capacity and extend the time between cleaning.
The Waterco Trimline pleated filter cartridges are designed for exceptional sediment loading capacity with the ability to be rinsed and reused in most applications thus extending the usable life of the cartridge. They are well suited for sediment removal in low pressure applications and in general domestic, rural, commercial and light industrial uses.
ADDITIONAL FEATURES
- Higher flow with lower pressure loss
- Exceptional dirt holding capacity
- Reusable cartridge resulting in significant savings
- Excellent filtering performance
APPLICATIONS
- Commonly used in a range of conventional water treatment systems predominantly for sediment removal in low pressure applications and in general domestic, rural, commercial and light industrial uses.
- Suitable for use with the Waterco TCF Commandomatic Trimline C75 Cartridge Filter Housing (WTC-2150753)
PRODUCT PACKAGE INCLUDES
- Waterco Trimline 740 mm Pleated Polyester Filter Cartridge (30 micron)
SPECIFICATIONS
Brand | Waterco |
Model | Trimline C75 30 Micron (WTC-62044) |
Gross Dimensions | |
Weight | 7 kg |
Length | 740 mm |
Diameter - Outside | 185 mm |
Diameter - Inside |
185 mm |
Cartridge Type |
Pleated Polyester |
Filter Surface Area | 6.9 m2 |
Max Operating Temperature | 50 °C |
Pressure Differential | 20 kPa max change in pressure, before cartridge clean or change is required |
Additional Details | Refer to the Product Data Sheet |
The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.
All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.
ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.
ADDITIONAL RESOURCES
PRODUCT INFORMATION SHEET (PIS)
Technical details regarding the Waterco Trimline 740 mm Pleated Polyester Filter Cartridge (30 micron), are outlined in the product information sheet (PIS).
DOWNLOAD
