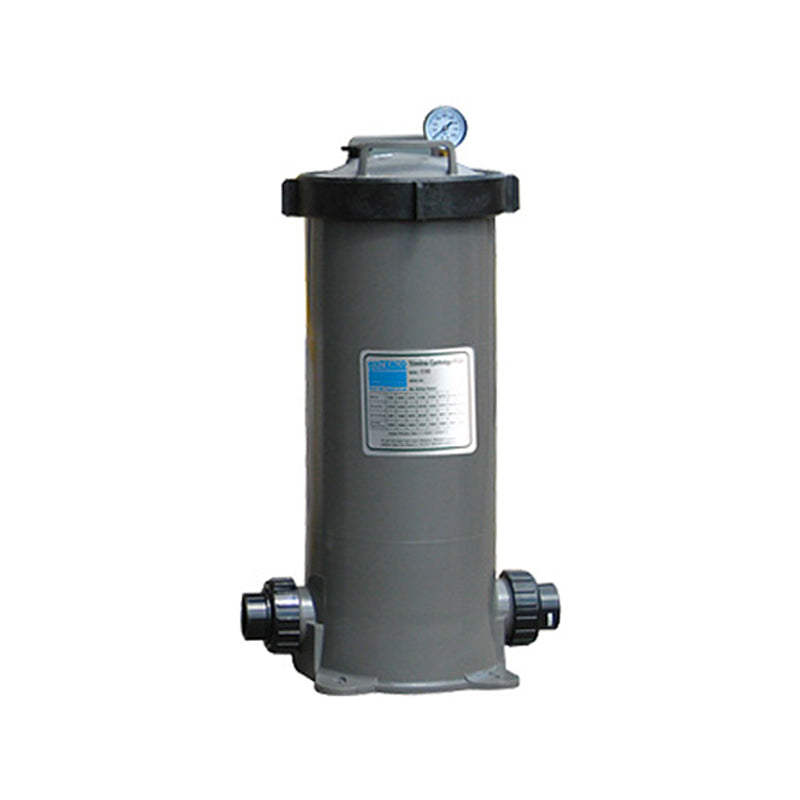

Waterco Commandomatic TCF Series C75 Cartridge Filter Housing, Top Loading

Waterco Commandomatic TCF Series C75 Cartridge Filter Housing, Top Loading

Product Code: WTC-2150753

The Waterco TCF Commandomatic Trimline cartridge filters are compact, economical filters designed to effectively filter out suspended solids from a range of process streams in water treatment related applications.

$POA
In Stock - Enquire about latest price
Vendor: Waterco

Available

KEY FEATURES
  • Effectively filters out suspended solids from range of process streams
  • Fabricated from high impact polypropylene to be compatible with a wide range of fluids
  • Designed to house either a pleated filter cartridge or a granular media cartridge



The Waterco TCF Commandomatic Trimline cartridge filters are compact, economical filters designed to effectively filter out suspended solids from a range of process streams in water treatment related applications. The Trimline cartridge filters utilise a specially treated synthetic fabric which is pleated into a cartridge. Cartridge filters are ideal for applications where backwashing may not be practical.

The TCF series housings are designed for top loading with an easy locking ring system requiring no additional tools for simple cartridge removal and replacement. The TCF series housings are fabricated from high impact polypropylene to be compatible with a wide range of fluids.

Rugged Construction - Constructed from high impact polypropylene and designed for easy maintenance, Trimline cartridge filters will give years of trouble free service.



ADDITIONAL FEATURES
  • One piece mould construction
  • Easy locking ring system
  • Easy to read pressure gauge

APPLICATIONS
  • Commonly used in a range of residential, commercial and industrial conventional water treatment applications due to the excellent chemical resistance of the housing

PRODUCT PACKAGE INCLUDES
  • Waterco Commandomatic TCF Series C75 Cartridge Filter Housing with pressure gauge
  • Cartridges filters are not included (available separately)



    Brand Waterco
    Model  Commandomatic TCF Series C75 (WTC-2150753)
    Weight  15 kg
    Length 970 mm
    Width
    384 mm
    Depth 259 mm
    Filter Type
    High-Impact Polypropylene Housing
    Cartridge Type Suitable for use with C75 (185 mm x 740 mm) large capacity Trimline Cartridges, including WTC-620431 (not included with housing)
    Operating Temperature 50 °C (max)
    Operating Pressure 50 psi
    Flow Rate - max 275 L/min (16.5 m3/hr)
    Inlet 40 mm half union
    Outlet 40 mm half union
    Additional Details Refer to the Product Data Sheet
