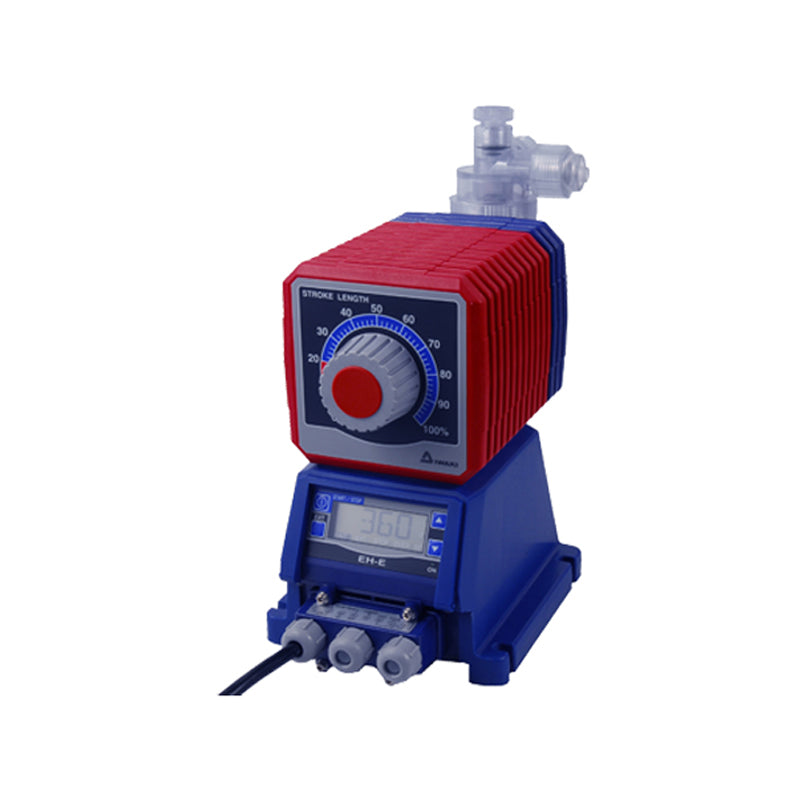

Walchem (Iwaki) EHE (E31) Metering Pump with Tubing Pack, 75 L / hr

Walchem (Iwaki) EHE (E31) Metering Pump with Tubing Pack, 75 L / hr

Product Code: IWA-EH-E31VC-20EE5-AU

The Walchem EHE is the workhorse of the E-Series metering pumps. EHE Series pumps have outputs up to 20 GPH (75 l/h) and pressure capabilities to 150 PSI (10 bar).

$2,685.00 Excl. GST
$2,953.50 Incl. GST
In Stock - Available for Fast Delivery
Vendor: Walchem

Available

KEY FEATURES
  • Turndown ratio of 1800:1 yields one of the most versatile pumps in water treatment
  • The 360 stroke per-minute operation results in high resolution chemical feed and long service life.
  • Versatile control features enable integration into virtually any chemical feed application



The Walchem EHE is the workhorse of the E-Series metering pumps. EHE Series pumps have outputs up to 20 GPH (75 l/h) and pressure capabilities to 150 PSI (10 bar). Combining the EHE performance with a turndown ratio of 1800:1 yields one of the most versatile pumps in the water treatment industry today. Superior mechanical design and quality manufacturing merge to create a pump better than the sum of its parts. The versatile control features enable the EHE to be integrated into virtually any chemical feed application. The 360 strokeper- minute operation results in high resolution chemical feed and long service life. EHE pumps prime in seconds and hold prime reliably.



ADDITIONAL FEATURES
  • E-Class pumps operate at 360 strokes-per-minute, providing high resolution chemical feed. Most competitive products operate at slower speeds, resulting in slug feeding, accelerated diaphragm wear and poor feed control.

APPLICATIONS
  • Provides a high performance and precise chemical injection function, suitable in a range of high value water treatment related applications.



PRODUCT PACKAGE INCLUDES
  • Walchem (Iwaki) EHE (E31) Metering Pump with Tubing Pack, 20 L / hr
  • 9 x 12 mm tubing pack (IWA-TUBEPACKVC3)

Brand Walchem (An Iwaki brand)
Model IWA-EH-E31VC-20EE5-AU
Weight  xx g
Length xx mm
Width xx mm
Depth xx mm
Maximum Capacity 340 mL / min (20 L / hr)
Maximum Discharge Pressure 1.0 MPa
Stroke Rage 1 to 360 spm
Power Consumption 48 W
Current Input 0.8 A
Control

Microprocessor based control circuitry

Allows operator adjustment of pump speed and external input settings via 4-button keypad.

Additional Specifications Refer to the product brochure, or contact Parkway



The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.


All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.


ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.




PRODUCT BROCHURE

Additional information about the Walchem (Iwaki) EHE (E31) Metering Pump, is outlined in the Walchem (Iwaki) EHE (E31) Metering Pump brochure.

DOWNLOAD



USER MANUAL

Instructions for the Walchem (Iwaki) EHE (E31) Metering Pump are outlined in the Walchem (Iwaki) EHE (E31) Metering Pump instruction manual.

DOWNLOAD

KEY FEATURES
  • Turndown ratio of 1800:1 yields one of the most versatile pumps in water treatment
  • The 360 stroke per-minute operation results in high resolution chemical feed and long service life.
  • Versatile control features enable integration into virtually any chemical feed application



The Walchem EHE is the workhorse of the E-Series metering pumps. EHE Series pumps have outputs up to 20 GPH (75 l/h) and pressure capabilities to 150 PSI (10 bar). Combining the EHE performance with a turndown ratio of 1800:1 yields one of the most versatile pumps in the water treatment industry today. Superior mechanical design and quality manufacturing merge to create a pump better than the sum of its parts. The versatile control features enable the EHE to be integrated into virtually any chemical feed application. The 360 strokeper- minute operation results in high resolution chemical feed and long service life. EHE pumps prime in seconds and hold prime reliably.



ADDITIONAL FEATURES
  • E-Class pumps operate at 360 strokes-per-minute, providing high resolution chemical feed. Most competitive products operate at slower speeds, resulting in slug feeding, accelerated diaphragm wear and poor feed control.

APPLICATIONS
  • Provides a high performance and precise chemical injection function, suitable in a range of high value water treatment related applications.



PRODUCT PACKAGE INCLUDES
  • Walchem (Iwaki) EHE (E31) Metering Pump with Tubing Pack, 20 L / hr
  • 9 x 12 mm tubing pack (IWA-TUBEPACKVC3)

SPECIFICATIONS
Brand Walchem (An Iwaki brand)
Model IWA-EH-E31VC-20EE5-AU
Weight  xx g
Length xx mm
Width xx mm
Depth xx mm
Maximum Capacity 340 mL / min (20 L / hr)
Maximum Discharge Pressure 1.0 MPa
Stroke Rage 1 to 360 spm
Power Consumption 48 W
Current Input 0.8 A
Control

Microprocessor based control circuitry

Allows operator adjustment of pump speed and external input settings via 4-button keypad.

Additional Specifications Refer to the product brochure, or contact Parkway



The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.


All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.


ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.




ADDITIONAL RESOURCES
PRODUCT BROCHURE

Additional information about the Walchem (Iwaki) EHE (E31) Metering Pump, is outlined in the Walchem (Iwaki) EHE (E31) Metering Pump brochure.

DOWNLOAD



USER MANUAL

Instructions for the Walchem (Iwaki) EHE (E31) Metering Pump are outlined in the Walchem (Iwaki) EHE (E31) Metering Pump instruction manual.

DOWNLOAD
