KEY FEATURES

• Designed for use in potentially explosive atmospheres, including mining, oil and gas environments
• ATEX and IECEx certified for hazardous industrial applications
• Suitable for potentially explosive atmospheres across Groups I, II and III
• Three selectable airflow settings: 170, 190 and 210 L/min
• Pre-calibrated airflow system automatically maintains stable airflow as operating conditions change
• Digital display provides real-time battery level, filter loading and airflow information
• Audible, visual and vibration alarms alert the wearer to low airflow, low battery and filter status
• Up to 11 hours operating time at 170 L/min

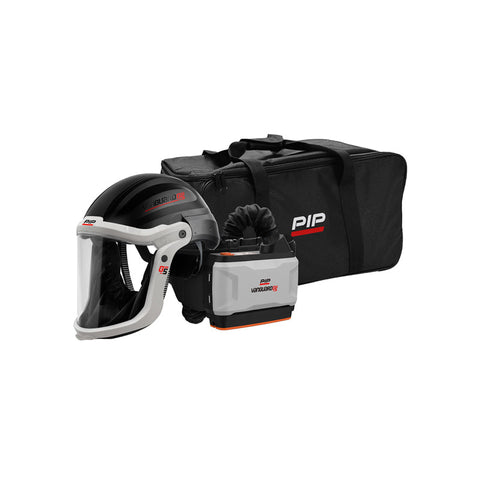

The Vanguard G5 EX Powered Air Purifying Respirator (PAPR) Complete Kit (PRK-G5ATX-1) is an advanced powered respiratory protection system designed for demanding industrial applications and potentially explosive atmospheres. With ATEX and IECEx certification, the G5 EX is suitable for hazardous environments across Groups I, II and III, including mining, oil and gas applications.

The system provides three selectable airflow rates of 170, 190 and 210 L/min, allowing airflow to be adjusted to suit the task and wearer comfort. Its pre-calibrated airflow system maintains stable airflow as conditions change, while the digital display provides real-time information on battery level, filter loading and airflow settings.

Powered by an intrinsically safe 6400 mAh battery, the Vanguard G5 EX provides up to 11 hours of operation at 170 L/min and charges in approximately 2.5 hours. The lightweight, balanced headtop and high-impact visor provide comfort, protection and a wide field of vision for extended use.

ADDITIONAL FEATURES

• Intrinsically safe 6400 mAh battery
• Battery charges in approximately 2.5 hours
• Battery-status indicator for convenient monitoring
• Supports P3 particulate, A1B1E1K1P3 and A2P3 filters
• Lightweight and balanced headtop designed for extended wear
• High-impact visor provides a wide field of vision and excellent peripheral visibility
• Robust construction with enhanced sealing for demanding industrial environments
• Dust-tight and protected against water ingress when fitted with decontamination plugs
• Complies with AS/NZS 1716, AS/NZS 1801 Type 1 and AS/NZS 1337.1 standards

APPLICATIONS

Mining, oil and gas, industrial maintenance, chemical handling, dust and particulate environments, hazardous-area operations and extended-duration respiratory protection tasks.

PRODUCT PACKAGE INCLUDES

• Vanguard G5 EX headtop
• Quick-connection hose
• G5 EX PAPR blower
• Intrinsically safe 6400 mAh battery
• Battery attachment tool
• Single battery charger kit
• P3 particulate filter
• Pre-filter
• Flow meter
• Shoulder strap
• Standard belt
• Tear-off visor film
• Decontamination cleaning plug kit
• Carry/storage bag

SPECIFICATIONS

ADDITIONAL RESOURCES

PRODUCT DATASHEET

Additional information about the Vanguard G5 EX Powered Air Purifying Respirator is available in the product datasheet.
