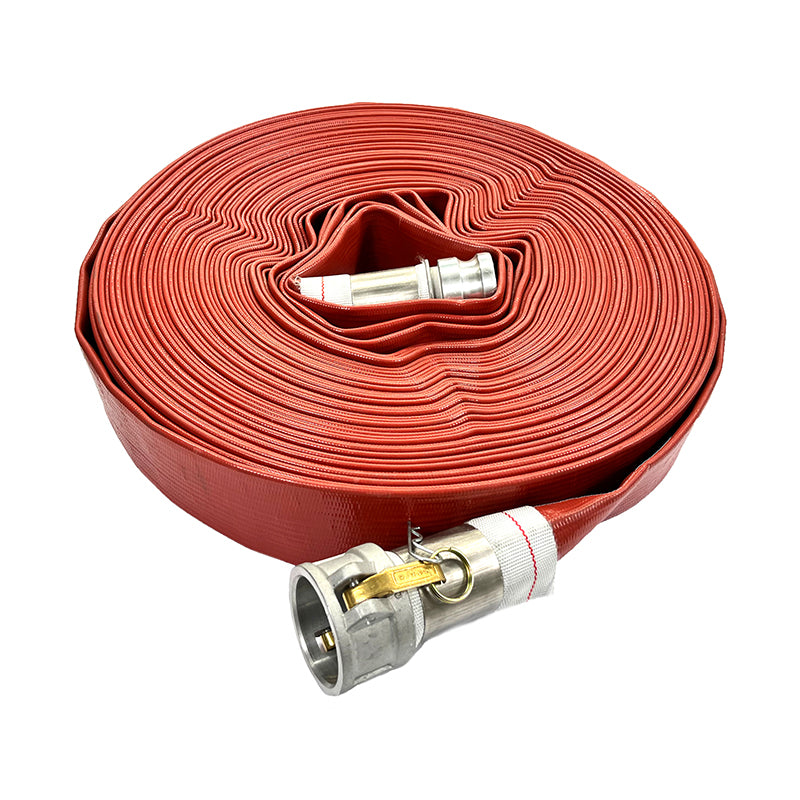

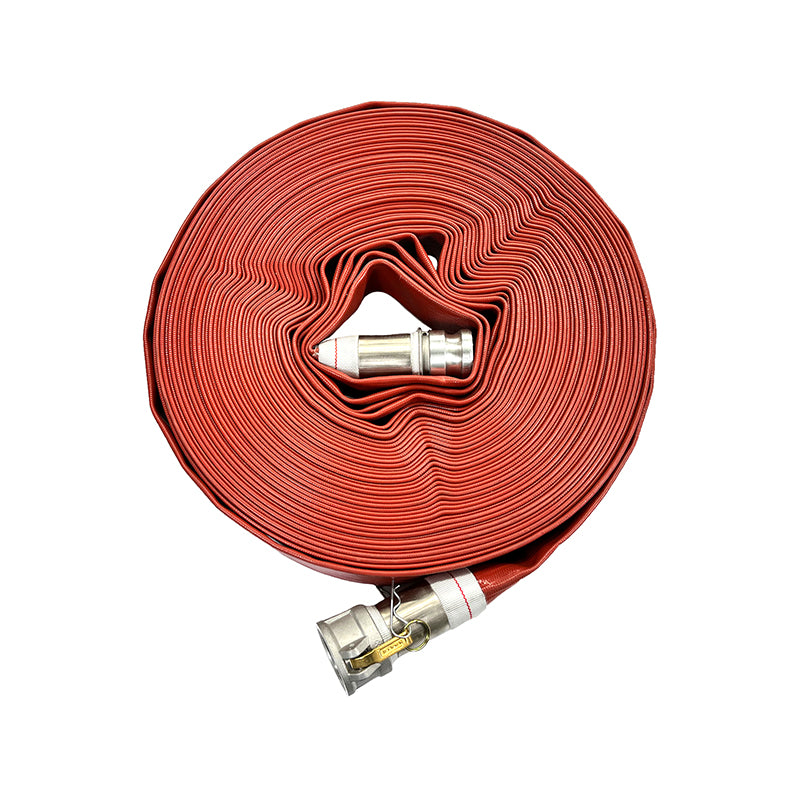

Sunnyflo Red 50 mm Layflat Hose Assembly with Type C & E Camlock Couplings
Sunnyflo Red 50 mm Layflat Hose Assembly with Type C & E Camlock Couplings
The Sunnyflo® Red layflat hose assembly is supplied complete with alloy Type C & Type E Camlock fittings pre-installed and tested, ensuring the hose assembly can be rapidly deployed on your next project.
Vendor: Sunnyflo
Available
KEY FEATURES
- Complete layflat hose assembly with installed Camlock Type C & E fittings
- Layflat hose assembly suitable for rapid installation and deployment
- Braided layflat hose ideal for range of industrial, mining and agriculture applications
The Sunnyflo® Red layflat hose assembly is supplied complete with alloy Type C & Type E Camlock fittings pre-installed and tested, ensuring the hose assembly can be rapidly deployed on your next project. If additional fittings are required to connect the layflat hose to your specific pump or connection outlet, check out the large range of fittings, including the rest of the Camlock range, available at our online store.

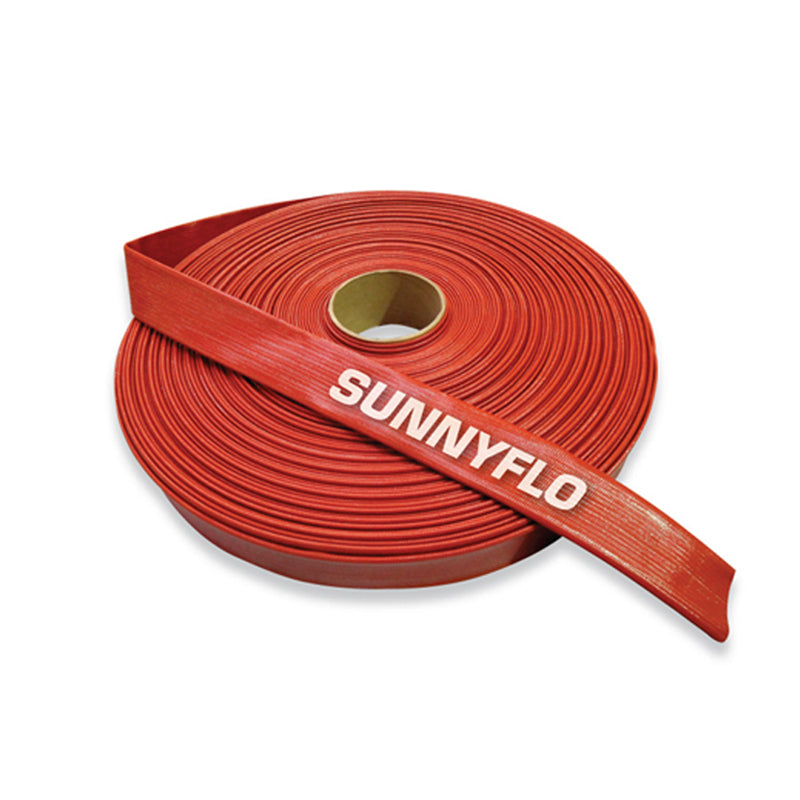

The Sunnyflo® Red layflat hose itself, is a braided layflat hose, which is suitable for a range of pumping applications in the industrial, agriculture and mining industries. Its textile reinforcement is made of thicker braided polyester yarns and has a PVC cover and inner lining. The Sunnyflo® Red range has a working pressure of up to 10 bar (1,000 kPa) and is considered substantially more durable than the Sunnyflo® blue range, and significantly more robust than most common lay flat hoses.
ADDITIONAL FEATURES
- Supplied with alloy Type C & Type E Camlock fittings pre-installed and tested
- Textile reinforcement made of braided polyester yarns
-
PVC cover for increased hose durability
APPLICATIONS
- Irrigation related uses in the agriculture sector
- Light duty industrial pumping related applications
- Rapid deployments in mining sector
PRODUCT PACKAGE INCLUDES
-
Sunnyflo® Red 50 mm Layflat Hose Assembly with Type C & E Camlock Couplings
- Length of hose based on selection (25 m, 50 m or 100 m)
SPECIFICATIONS
| Brand | Sunnyflo |
| Model | 50 mm Red |
| Hose Diamater - Inner |
50 mm (2") |
| Hose Wall Thickness |
2.20 mm |
| Hose Length | 25, 50 or 100 metres, based on selection |
| Material | Hose incorporates textile reinforcement made up of braided polyester yarns and has a PVC cover and inner lining |
| Colour | Red |
| Operating Pressure - Max | 1000 kPa |
| Max Burst Pressure | 3100 kPa |
| Couplings Installed - End 1 | Light alloy Type C Camlock fitting |
| Couplings Installed - End 2 | Light alloy Type E Camlock fitting |
The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.
All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.
ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.
ADDITIONAL RESOURCES
PRODUCT INFORMATION SHEET (PIS)
Additional information about the Sunnyflo Red Layflat Hose Assembly is outlined in the product information sheet (PIS).
