Sunnyflo Blue 50 mm Layflat Hose Assembly with Type C & E Camlock Couplings

Sunnyflo Blue 50 mm Layflat Hose Assembly with Type C & E Camlock Couplings

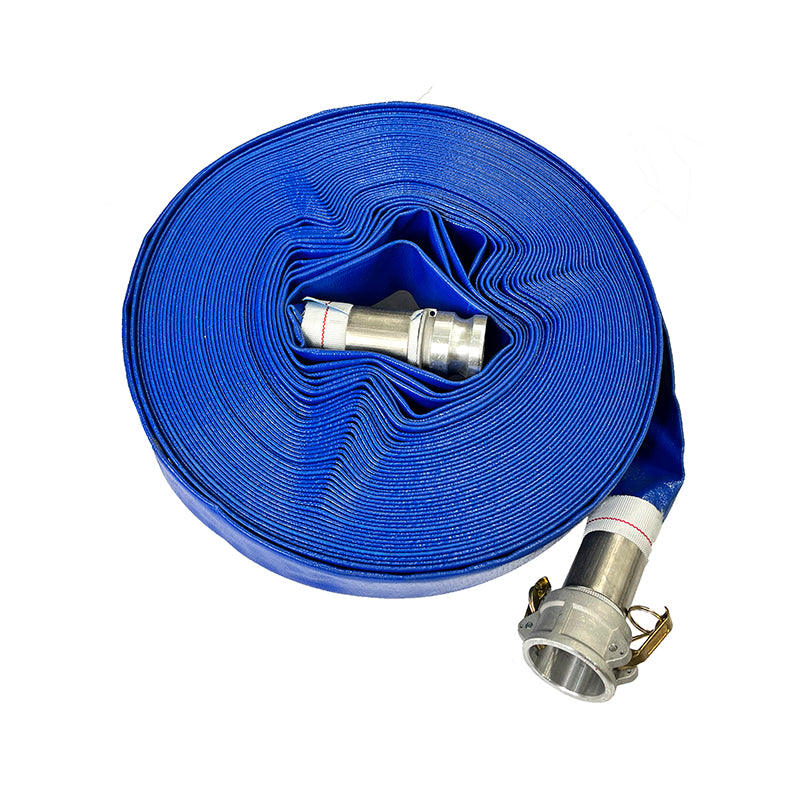

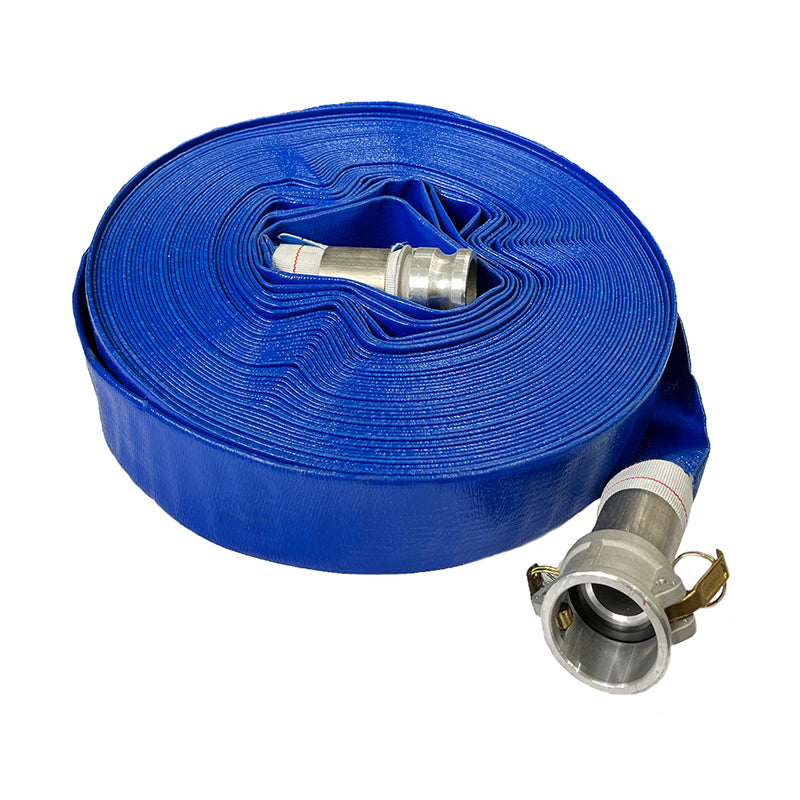

The Sunnyflo® Blue layflat hose assembly is supplied complete with alloy Type C & Type E Camlock fittings pre-installed and tested, ensuring the hose assembly can be rapidly deployed on your next project.

In Stock - Available for Fast Delivery
Vendor: Sunnyflo

Available

KEY FEATURES
  • Complete layflat hose assembly with installed Camlock Type C & E fittings
  • Layflat hose assembly suitable for rapid installation and deployment
  • Braided layflat hose ideal for range of industrial, mining and agriculture applications



The Sunnyflo® Blue layflat hose assembly is supplied complete with alloy Type C & Type E Camlock fittings pre-installed and tested, ensuring the hose assembly can be rapidly deployed on your next project. If additional fittings are required to connect the layflat hose to your specific pump or connection outlet, check out the large range of fittings, including the rest of the Camlock range, available at our online store.

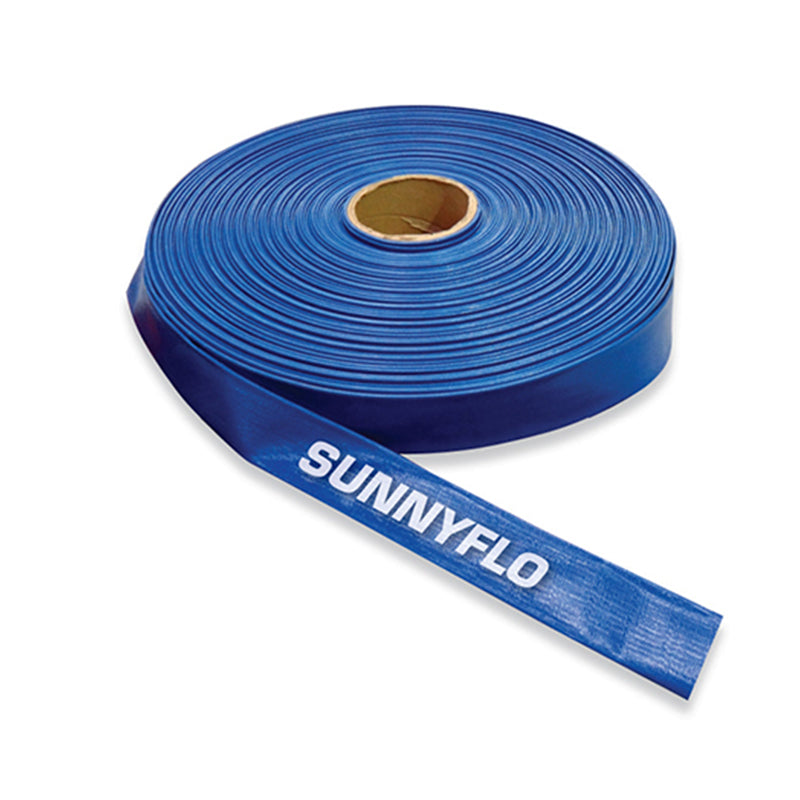

The Sunnyflo® Blue layflat hose itself, is a braided layflat hose, which is ideal for lighter duty pumping applications in the industrial, agriculture and mining industries. Its textile reinforcement is made of braided polyester yarns and has a PVC cover and inner lining.



ADDITIONAL FEATURES
  • Supplied with alloy Type C & Type E Camlock fittings pre-installed and tested
  • Textile reinforcement made of braided polyester yarns
  • PVC cover for increased hose durability



APPLICATIONS
  • Irrigation related uses in the agriculture sector
  • Light duty industrial pumping related applications
  • Rapid deployments in mining sector



PRODUCT PACKAGE INCLUDES
  • Sunnyflo Blue 50 mm Layflat Hose Assembly with Type C & E Camlock Couplings
  • Length of hose based on selection (25 m, 50 m or 100 m)

    Brand Sunnyflo
    Model 50 mm Blue
    Hose Diamater - Inner
    50 mm (2")
    Hose Wall Thickness
    1.5 mm
    Hose Length 25, 50 or 100 metres, based on selection
    Material Hose incorporates textile reinforcement made up of braided polyester yarns and has a PVC cover and inner lining
    Colour Blue
    Operating Pressure - Max 550 kPa
    Max Burst Pressure 1700 kPa
    Couplings Installed - End 1 Light alloy Type C Camlock fitting
    Couplings Installed - End 2 Light alloy Type E Camlock fitting



    The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.


    All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.


    ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.




    PRODUCT INFORMATION SHEET (PIS)

    Additional information about the Sunnyflo Blue Layflat Hose Assembly is outlined in the product information sheet (PIS).

    DOWNLOAD

    KEY FEATURES
    • Complete layflat hose assembly with installed Camlock Type C & E fittings
    • Layflat hose assembly suitable for rapid installation and deployment
    • Braided layflat hose ideal for range of industrial, mining and agriculture applications



    The Sunnyflo® Blue layflat hose assembly is supplied complete with alloy Type C & Type E Camlock fittings pre-installed and tested, ensuring the hose assembly can be rapidly deployed on your next project. If additional fittings are required to connect the layflat hose to your specific pump or connection outlet, check out the large range of fittings, including the rest of the Camlock range, available at our online store.

    The Sunnyflo® Blue layflat hose itself, is a braided layflat hose, which is ideal for lighter duty pumping applications in the industrial, agriculture and mining industries. Its textile reinforcement is made of braided polyester yarns and has a PVC cover and inner lining.



    ADDITIONAL FEATURES
    • Supplied with alloy Type C & Type E Camlock fittings pre-installed and tested
    • Textile reinforcement made of braided polyester yarns
    • PVC cover for increased hose durability



    APPLICATIONS
    • Irrigation related uses in the agriculture sector
    • Light duty industrial pumping related applications
    • Rapid deployments in mining sector



    PRODUCT PACKAGE INCLUDES
    • Sunnyflo Blue 50 mm Layflat Hose Assembly with Type C & E Camlock Couplings
    • Length of hose based on selection (25 m, 50 m or 100 m)

      SPECIFICATIONS
      Brand Sunnyflo
      Model 50 mm Blue
      Hose Diamater - Inner
      50 mm (2")
      Hose Wall Thickness
      1.5 mm
      Hose Length 25, 50 or 100 metres, based on selection
      Material Hose incorporates textile reinforcement made up of braided polyester yarns and has a PVC cover and inner lining
      Colour Blue
      Operating Pressure - Max 550 kPa
      Max Burst Pressure 1700 kPa
      Couplings Installed - End 1 Light alloy Type C Camlock fitting
      Couplings Installed - End 2 Light alloy Type E Camlock fitting



      The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.


      All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.


      ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.




      ADDITIONAL RESOURCES
      PRODUCT INFORMATION SHEET (PIS)

      Additional information about the Sunnyflo Blue Layflat Hose Assembly is outlined in the product information sheet (PIS).

      DOWNLOAD
