KEY FEATURES

• Comprehensive master flooring kit optimized for ASTM F2170 in-situ concrete relative humidity testing
• Includes 5 Mini Hygrostick probes, 20 adjustable sleeves, insertion/extraction tool, and 19 mm masonry drill
• Advanced wireless Bluetooth connectivity links measurements seamlessly with the Protimeter Connect app
• Invasive pin mode accurately measures wood and surface moisture conditions from 6% to 100% WME
• Non-invasive RF search mode scans deep sub-surface moisture matrices up to 12 cm (5") below floor coverings
• Non-contact Infrared (IR) surface thermometer with a 12:1 laser pointer monitors dew point thresholds
• Supplied with an advanced salt calibration test bottle setup to ensure precise on-site verification checks

The Protimeter MMS3 BLD9800-FL Flooring Kit is purpose-built to eliminate moisture-related floor failures by providing definitive quantitative assessment data for subfloor readiness. When laying modern resilient floors, wood planks, or decorative screeds over concrete, trapped excessive moisture can cause rapid adhesive blistering, warping, and devastating mold formation. By incorporating a complete suite of professional in-situ testing sleeves and deep-reaching relative humidity sensors, this kit enables specialists to drill, clean, insert, and record equilibrium relative humidity (ERH) values safely at exact slab depths. Detailed datasets broadcast to the app effortlessly, empowering compliance teams to generate undeniable, photo-annotated validation records for clients and insurance underwriters.

ADDITIONAL FEATURES

• Rugged hard-plastic custom tool case keeps high-precision sensors and heavy drill bits organized on site
• Full psychrometric processor computes ambient air parameters, dew point proximity, and grains per pound
• Onboard sensitivity adjustability profile provides quick, straightforward field calibrations
• Sub-surface radio frequency scan path is completely unaffected by lingering ambient surface water film
• Fully compatible with professional desktop Protimeter PC software for corporate data processing
• Vibrant 2.4-inch color LCD display relies on a clear tri-color visual matrix to isolate structural wet zones
• Upgradable internal instrument firmware provides a future-proof technology investment for field fleets

APPLICATIONS

• Concrete slab in-situ relative humidity (RH) monitoring and ASTM F2170 compliance testing
• Subfloor moisture assessment and structural drying verification
• Wood flooring moisture condition monitoring and asset protection
• Carpet, vinyl, laminate, and resilient floor covering installation assessments
• Commercial flooring warranty compliance and documentation
• Building moisture investigations and remediation projects
• Flooring contractor quality assurance and pre-installation inspections

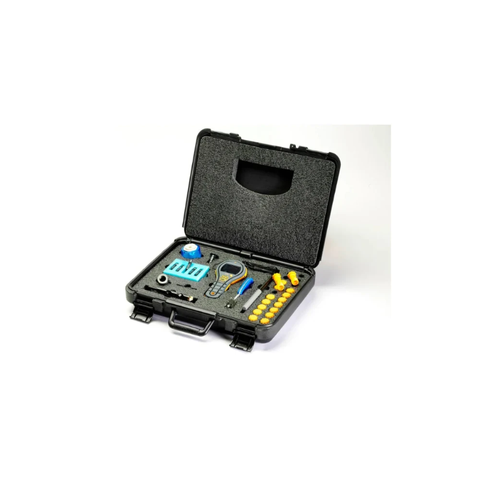

PRODUCT PACKAGE INCLUDES

• 1 x Protimeter MMS3 Diagnostic Instrument (SKU: PRO-BLD9800-FL)
• 5 x Mini Hygrostick Relative Humidity Probes (BLD4755-5)
• 1 x Mini Hygrostick Probe Insertion/Extraction Tool
• 20 x Adjustable Humidity Testing Sleeves (BLD4650-20)
• 1 x Quickstick ST Humidity/Temperature Sensor (POL8751)
• 1 x Mini Hygrostick Extension Lead Connection Cable
• 1 x Carbide-Tipped 19 mm Spiral Masonry Drill Bit
• 1 x Steel Wire Hole-Cleaning Brush
• 1 x Salts Calibration Test Bottle and Adapter Set
• 1 x Rugged Hard Plastic Carrying Case & Wrist Strap
• 2 x AA Alkaline Batteries
• 1 x Quick Start User Instructions
