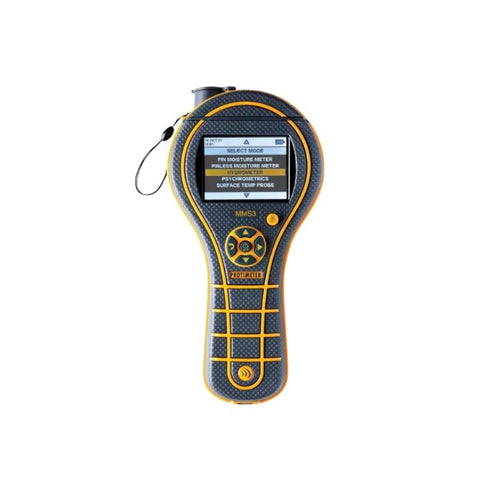

Protimeter BLD9800-C PROTIMETER MMS3 Instrument in hard case
Protimeter BLD9800-C PROTIMETER MMS3 Instrument in hard case
The Protimeter MMS3 Instrument in hard case is a professional, industrial-grade 4-in-1 diagnostic instrument engineered for advanced building inspection, flood restoration, and concrete moisture mapping. Combining precise pin-type measurements up to ten millimeters deep with an enhanced non-invasive radio frequency sensor capable of scanning up to twelve centimeters behind surface coverings, this wireless-enabled tool delivers immediate sub-surface analysis without damage. Outfitted with an integrated infrared laser thermometer for non-contact surface temperature checks and a high-performance psychrometric hygrometer, it simultaneously tracks environmental air quality variables. It features a ten thousand reading data logger and a direct Bluetooth interface to transmit live reports via a mobile application framework.
Vendor: PROTIMETER
Available
KEY FEATURES
- 4-in-1 moisture measurement system with Pin, Pinless Scan, Hygrometer, and Infrared Thermometer modes
- Pin mode measures moisture from 6% to 100% WME with up to 10 mm probe penetration
- Pinless Scan mode detects subsurface moisture up to 120 mm (5") deep
- Integrated infrared thermometer with laser targeting for surface temperature measurement
- Bluetooth connectivity with Protimeter Connect App for live data, logging, and reporting
- Stores up to 10,000 readings with manual or automatic logging
- Large backlit colour display with intuitive navigation
- Ideal for building inspections, water damage restoration, flooring, and moisture investigations
The Protimeter MMS3 Instrument BLD9800-C is a professional all-in-one moisture and environmental diagnostic instrument designed for building inspections, restoration, flooring, and construction applications. Combining pin moisture measurement, deep pinless scanning, hygrometry, and infrared surface temperature measurement into a single portable instrument, the MMS3 enables rapid identification of moisture intrusion, condensation risks, and hidden water damage. Bluetooth connectivity allows live data streaming, job management, photographic reporting, and measurement storage through the Protimeter Connect App, making documentation and reporting simple while improving inspection efficiency both on-site and in the office.
ADDITIONAL FEATURES
- Non-invasive radio frequency scanning detects hidden moisture behind tiles, drywall, flooring, and wall coverings
- Quickstick ST humidity probe measures ambient humidity and temperature for complete psychrometric analysis
- Integrated infrared thermometer features a 12:1 distance-to-spot ratio for fast surface temperature measurements
- Bluetooth Low Energy connectivity enables wireless data transfer and cloud-ready reporting using the Protimeter Connect App
- Internal memory stores up to 10,000 measurements for comprehensive moisture inspection records
APPLICATIONS
- Ideal for water damage restoration, building inspections, flooring installation, concrete moisture testing, timber inspections, condensation analysis, mould investigations, property surveys, insurance assessments, and HVAC moisture diagnostics.
PRODUCT PACKAGE INCLUDES
- 1 x Protimeter MMS3 Moisture Measurement Instrument (SKU: PRO-BLD9800-C)
- 1 x Heavy Duty Moisture Probe (BLD5060)
- 1 x Quickstick ST Humidity Probe (POL8751)
- 1 x Hard Carry Case
- 1 x Wrist Strap
- 2 x AA Batteries
- 1 x Quick Start Guide
- 1 x 2-Year Manufacturer Warranty
SPECIFICATIONS
| Brand | Protimeter |
| SKU | PRO-BLD9800-C |
| Instrument Type | 4-in-1 Moisture Measurement & Environmental Diagnostic Instrument |
| Pin Moisture Range | 6% to 100% WME |
| Maximum Pin Depth | 10 mm (0.4") |
| Pinless Measurement Range | 60 to 1000 Relative |
| Pinless Scan Depth | 19 mm to 120 mm (¾" to 5") |
| Infrared Temperature Range | -20°C to +80°C |
| Infrared Temperature Accuracy | ±2°C |
| Distance-to-Spot Ratio | 12:1 |
| Surface Probe Temperature Range | 0°C to +70°C |
| Surface Probe Accuracy | ±0.7°C at 25°C |
| Quickstick ST Humidity Range | 0% to 100% RH |
| Quickstick ST Accuracy | ±2% RH (10% to 90% RH), ±3% RH outside this range |
| Hygrostick Humidity Range | 30% to 98% RH |
| Air Temperature Range | -10°C to +50°C |
| Air Temperature Accuracy | ±0.3°C |
| Calculated Parameters | Dew Point, Relative Humidity, Air Temperature, Surface Condensation, Grains per Pound |
| Data Storage | 10,000 Readings |
| Connectivity | Bluetooth Low Energy (Protimeter Connect App) |
| Display | 2.4" High-Contrast Colour Backlit LCD |
| Power Supply | 2 × AA Batteries |
| Warranty | 2 Years |
