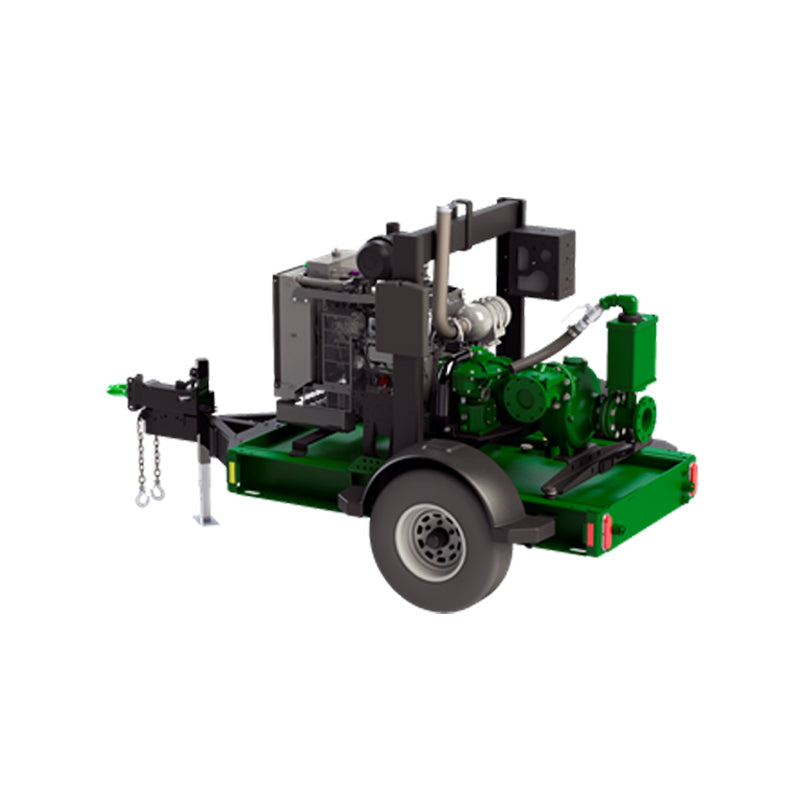

Pioneer Prime Diesel-Driven Centrifugal Pump Trailer Package (345 m³/h max flow)

Pioneer Prime Diesel-Driven Centrifugal Pump Trailer Package (345 m³/h max flow)

Product Code: PIO-PP44S10L71-D2.9L4

Pioneer offers a comprehensive range of diesel-driven pump package options for fixed and portable installations, suitable for versatile industrial applications, including any rugged industrial, municipal, agricultural, mining, dewatering and rental application.

$POA
Enquire about price
Vendor: Pioneer Pump

Unavailable

KEY FEATURES
  • Indefinite run-dry capability
  • Extreme flow technology
  • Environmentally safe priming system - Pioneer Prime
  • Auto-start controls
  • Skid options available



The Pioneer Pump Packages move large volumes of water in nearly any rugged industrial, municipal, agricultural, mining, dewatering, or rental application. This robust, diesel-driven pump package features a solids-handling pump which passes up to 76mm solids and reaches a maximum flow of 345 m³/h and a max head of 50 metres.



    ADDITIONAL FEATURES
    • For full features of this Pioneer Diesel-Driven Pump Package, refer to the Product Information Sheet, available in the Additional Resources section.



    APPLICATIONS
    • Suitable for moving large volumes of water in nearly any rugged industrial, municipal, agricultural, mining, dewatering or rental application.



    PRODUCT PACKAGE INCLUDES
    • Pioneer Prime Diesel-Driven Centrifugal Pump Trailer Package (345 m³/h max flow)
    • These industrial-grade diesel-driven packages are built for the toughest environments and are available in a range of configurations, enclosures, controls, as well as options including, but not limited to vacuum-assisted priming, self-priming and standard centrifugal pump ends.
    • To discuss your specific requirements, speak to a Parkway process specialist, today.



      Brand Pioneer Pump
      Model PIO-PP44S10L71-D2.9L4
      Gross Dimensions
      Weight  1452 kg (net weight)
      Length 3309 mm
      Width 1768 mm
      Height
      1864 mm
      Pump Size
      100 x 100mm (4 x 4")
      Flow Rate - Max 345 m³/hr
      Rated Head - Max 50 m
      Solids Size 76 mm
      Engine Type Deutz D2.9L, 4-Cylinder Diesel FT4 (other engine options available)
      Max Speed 2200 rpm
      Continuous Power 36 HP
      Fuel Consumption 7.83l/h
      Tank Size 95 litres



      The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.


      All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.


      ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.





      PRODUCT INFORMATION SHEET (PIS)

      Detailed information about the Pioneer Prime Diesel-Driven Centrifugal Pump Trailer Package is outlined in the product information sheet.

      DOWNLOAD



      PRODUCT BROCHURE

      General information about the Pioneer Diesel-Driven Centrifugal Pump Package range is outlined in the Pioneer Pump brochure.

      DOWNLOAD



      PRODUCT SERVICE MANUAL

      Detailed service related information regarding the Pioneer Pump range is outlined in the Pioneer Centrifugal Pump Service Manual.

      DOWNLOAD

      KEY FEATURES
      • Indefinite run-dry capability
      • Extreme flow technology
      • Environmentally safe priming system - Pioneer Prime
      • Auto-start controls
      • Skid options available



      The Pioneer Pump Packages move large volumes of water in nearly any rugged industrial, municipal, agricultural, mining, dewatering, or rental application. This robust, diesel-driven pump package features a solids-handling pump which passes up to 76mm solids and reaches a maximum flow of 345 m³/h and a max head of 50 metres.



        ADDITIONAL FEATURES
        • For full features of this Pioneer Diesel-Driven Pump Package, refer to the Product Information Sheet, available in the Additional Resources section.



        APPLICATIONS
        • Suitable for moving large volumes of water in nearly any rugged industrial, municipal, agricultural, mining, dewatering or rental application.



        PRODUCT PACKAGE INCLUDES
        • Pioneer Prime Diesel-Driven Centrifugal Pump Trailer Package (345 m³/h max flow)
        • These industrial-grade diesel-driven packages are built for the toughest environments and are available in a range of configurations, enclosures, controls, as well as options including, but not limited to vacuum-assisted priming, self-priming and standard centrifugal pump ends.
        • To discuss your specific requirements, speak to a Parkway process specialist, today.



          SPECIFICATIONS
          Brand Pioneer Pump
          Model PIO-PP44S10L71-D2.9L4
          Gross Dimensions
          Weight  1452 kg (net weight)
          Length 3309 mm
          Width 1768 mm
          Height
          1864 mm
          Pump Size
          100 x 100mm (4 x 4")
          Flow Rate - Max 345 m³/hr
          Rated Head - Max 50 m
          Solids Size 76 mm
          Engine Type Deutz D2.9L, 4-Cylinder Diesel FT4 (other engine options available)
          Max Speed 2200 rpm
          Continuous Power 36 HP
          Fuel Consumption 7.83l/h
          Tank Size 95 litres



          The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.


          All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.


          ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.




          ADDITIONAL RESOURCES

          PRODUCT INFORMATION SHEET (PIS)

          Detailed information about the Pioneer Prime Diesel-Driven Centrifugal Pump Trailer Package is outlined in the product information sheet.

          DOWNLOAD



          PRODUCT BROCHURE

          General information about the Pioneer Diesel-Driven Centrifugal Pump Package range is outlined in the Pioneer Pump brochure.

          DOWNLOAD



          PRODUCT SERVICE MANUAL

          Detailed service related information regarding the Pioneer Pump range is outlined in the Pioneer Centrifugal Pump Service Manual.

          DOWNLOAD
