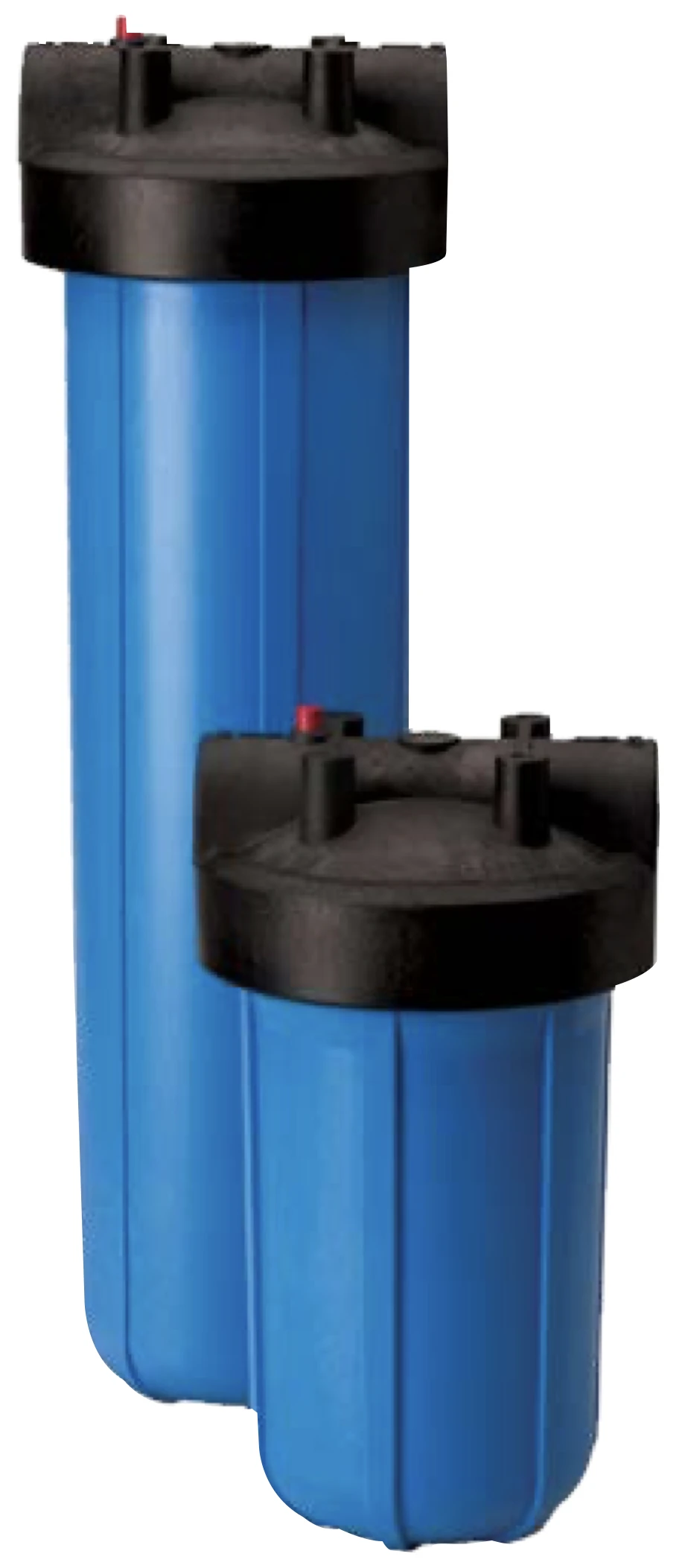

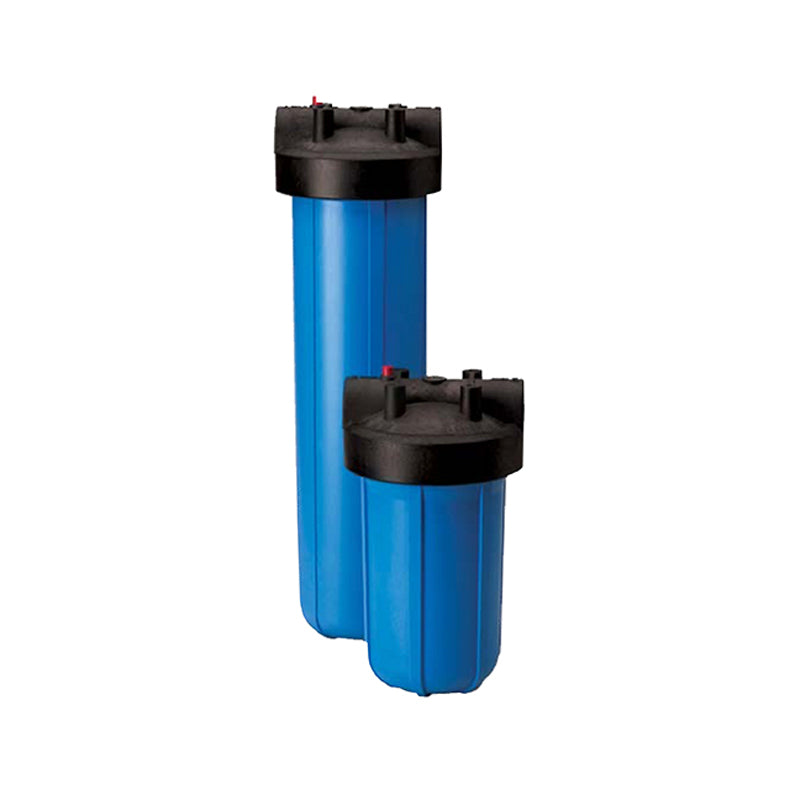

Pentek 20" Large Diameter, Big Blue Filter Housing, High Flow Applications, Pressure Relief, 1" BSP
Pentek 20" Large Diameter, Big Blue Filter Housing, High Flow Applications, Pressure Relief, 1" BSP
The Pentair Big Blue Heavy Duty Filter Housings offer the versatility to meet all of your large-capacity filtration needs, including high-flow and heavy-sediment applications. The extra large housing allows for greater cartridge capacity, reducing the number of vessels required for high flow-rate applications.
Vendor: Pentek
Available
KEY FEATURES
- Large capacity housing suitable for high flow applications
- Outstanding chemical compatibility ensures maximum flexibility
- Pressure relief/bleed on inlet side of cap
Β
The Pentair Big Blue Heavy Duty Filter Housings offer the versatility to meet all of your large-capacity filtration needs, including high-flow and heavy-sediment applications. The extra large housing allows for greater cartridge capacity, reducing the number of vessels required for high flow-rate applications. Sumps are available in both 10" and 20" lengths. The High-Flow Polypropylene (HFPP) cap is available with 3/4", 1" or 1-1/2" BSPΒ inlet and outlet ports. The 1-1/2" internal port allows a greater volume of liquid to pass through the HFPP cap more rapidly. Big Blue Housings are compatible with a broad range of chemicals and are available with or without a pressure relief button. They accept a wide variety of 4-1/2" diameter cartridges.
Β
ADDITIONAL FEATURES
- Suitable in a broad range of applications
- IncorporatesΒ pressure-relief/bleed button
- Leak-proof seal
APPLICATIONS
- Commonly used in a range of large capacity high flowΒ commercial and industrial conventionalΒ water treatment applications
PRODUCT PACKAGE INCLUDES
- Pentek 20" Big Blue Heavy Duty Filter Housing for High Flow Applications, Pressure Relief/Bleed, 1"Β BSP
SPECIFICATIONS
| Brand | Pentek |
| Model - Pentek | 150383 |
| Model - Supplier | WH150273 |
| WeightΒ | xxxΒ gΒ |
| Length | 590 mm (23.22") |
| Diameter | 189 mm (7.45") |
| FilterΒ Type |
Polypropylene Housing |
| Max Operating Temperature | 37.8Β Β°C |
| Mex Operating Pressure | 125 psi (8.6 bar) |
| Additional Details | Refer to the Product Data Sheet |
Β
The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the βCompanyβ) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.
All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.
ALL INFORMATION OUTLINED HEREINΒ IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.
Β
ADDITIONAL RESOURCES
PRODUCTΒ INFORMATION SHEET (PIS)
Technical details regardingΒ the Pentek 20" Big Blue Heavy Duty Filter Housing for High Flow Applications, Pressure Relief/Bleed, 1" BSP,Β are outlined in the product information sheet (PIS).
