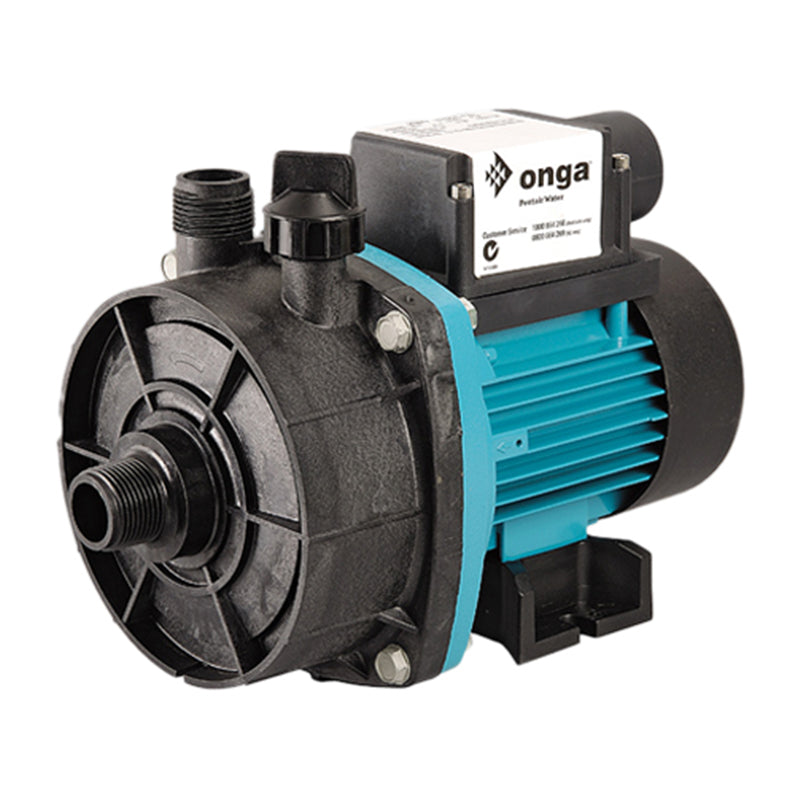

Pentair Onga 415 Moulded Water Transfer Pump (270 L/min max flow)

Pentair Onga 415 Moulded Water Transfer Pump (270 L/min max flow)

Product Code: PEN-341500

The Pentair Onga Moulded Water Transfer Pump is a horizontal, single-stage, surface mounted centrifugal pump with closed impeller for pumping water, coupled to a cool running totally enclosed fan cooled 2 pole motor with thermal overload protection.

In Stock - Available for Fast Delivery
Vendor: Pentair Onga

Available

KEY FEATURES
  • Made of high grade corrosion resistant materials
  • Robust design ensures reliability and quiet operation
  • Award winning high flow impeller



The Pentair Onga 415 Moulded Water Transfer Pump is a horizontal, single-stage, surface mounted centrifugal pump with closed impeller for pumping debris free water coupled to a cool running totally enclosed fan cooled 2 pole motor with thermal overload protection.



ADDITIONAL FEATURES
  • Highly versatile pump given robust construction
  • Liquid temperatures to 70 °C



APPLICATIONS
  • A multipurpose transfer pump, suitable for industrial, rural and domestic applications, with typical uses including hose down, tank filling and general water transfer, hydroponics, sprinklers and garden watering.



    PRODUCT PACKAGE INCLUDES
    • Pentair Onga 415 Moulded Water Transfer Pump



      Brand Onga
      Gross Dimensions
      Weight  9.7 kg
      Length 351 mm
      Width 178 mm
      Depth 225 mm
      Maximum Flow Rate 270 L/min
      Maximum Head 24 m
      Max Operating Pressure 410 kPa
      Max Liquid Temperature  70 °C
      Power Rating 750 W (230 V AC, 50 Hz Power Supply)
      Rated Current
      4.3 A
      Size of Inlet Connection 1.25" BSPM
      Size of Outlet Connection 1.25" BSPM



      The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.


      All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.


      ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.




      PRODUCT BROCHURE

      General information about the Pentair Onga 415 Moulded Water Transfer Pump range is outlined in the Pentair Water Transfer brochure.

      DOWNLOAD



      PRODUCT INFORMATION SHEET (PIS)

      Additional technical information about the Pentair Onga 415 Moulded Water Transfer Pump is outlined in the Pentair Onga 415 Moulded Water Transfer Pump, data sheet.

      DOWNLOAD



      USER MANUAL

      Additional information about operating the Pentair Onga 415 Moulded Water Transfer Pump is outlined in the Pentair Onga 415 Moulded Water Transfer Pump, instruction manual.

      DOWNLOAD


      KEY FEATURES
      • Made of high grade corrosion resistant materials
      • Robust design ensures reliability and quiet operation
      • Award winning high flow impeller



      The Pentair Onga 415 Moulded Water Transfer Pump is a horizontal, single-stage, surface mounted centrifugal pump with closed impeller for pumping debris free water coupled to a cool running totally enclosed fan cooled 2 pole motor with thermal overload protection.



      ADDITIONAL FEATURES
      • Highly versatile pump given robust construction
      • Liquid temperatures to 70 °C



      APPLICATIONS
      • A multipurpose transfer pump, suitable for industrial, rural and domestic applications, with typical uses including hose down, tank filling and general water transfer, hydroponics, sprinklers and garden watering.



        PRODUCT PACKAGE INCLUDES
        • Pentair Onga 415 Moulded Water Transfer Pump



          SPECIFICATIONS
          Brand Onga
          Gross Dimensions
          Weight  9.7 kg
          Length 351 mm
          Width 178 mm
          Depth 225 mm

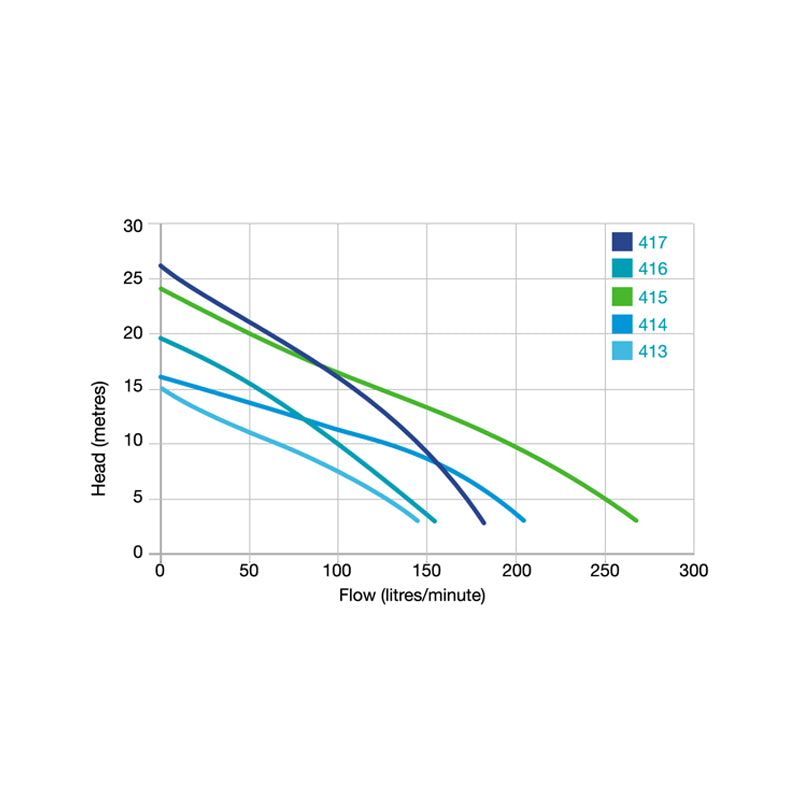

          Maximum Flow Rate 270 L/min
          Maximum Head 24 m
          Max Operating Pressure 410 kPa
          Max Liquid Temperature  70 °C
          Power Rating 750 W (230 V AC, 50 Hz Power Supply)
          Rated Current
          4.3 A
          Size of Inlet Connection 1.25" BSPM
          Size of Outlet Connection 1.25" BSPM



          The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.


          All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.


          ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.




          ADDITIONAL RESOURCES
          PRODUCT BROCHURE

          General information about the Pentair Onga 415 Moulded Water Transfer Pump range is outlined in the Pentair Water Transfer brochure.

          DOWNLOAD



          PRODUCT INFORMATION SHEET (PIS)

          Additional technical information about the Pentair Onga 415 Moulded Water Transfer Pump is outlined in the Pentair Onga 415 Moulded Water Transfer Pump, data sheet.

          DOWNLOAD



          USER MANUAL

          Additional information about operating the Pentair Onga 415 Moulded Water Transfer Pump is outlined in the Pentair Onga 415 Moulded Water Transfer Pump, instruction manual.

          DOWNLOAD
