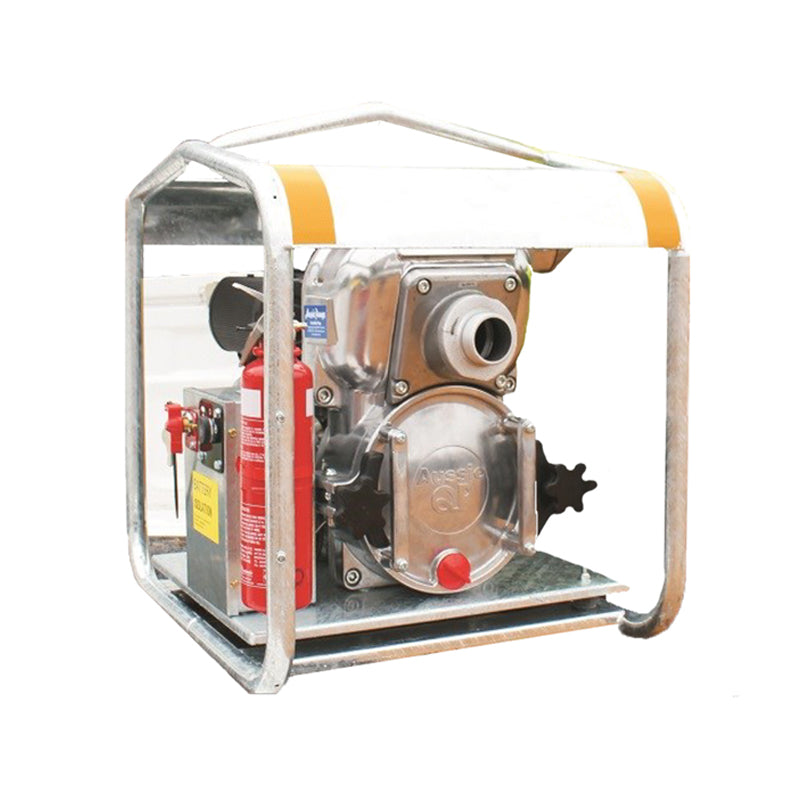

Aussie Mine Boss Trash Pump, 2" Ports (600 L/min max flow), 4.8 HP Yanmar Diesel

Aussie Mine Boss Trash Pump, 2" Ports (600 L/min max flow), 4.8 HP Yanmar Diesel

Product Code: AUS-QP203T/L48EMS2

The Aussie Mine Boss Trash Pumps are high specification diesel powered pumps specifically designed for rugged mining related applications where safe and reliable performance is of utmost importance, with the pumps also able to handle a reasonable amount of suspended solids.

In Stock - Enquire about delivery options
Vendor: Aussie Pumps

Available

KEY FEATURES
  • Open impeller design allows for high solids passage (up to 19mm)
  • Self-priming action allows the pump to prime without the need to fill the pipe
  • Robust cast iron casing with thick walls for longer pump life



The Aussie Mine Boss Trash Pumps are high specification diesel powered pumps specifically designed for rugged mining related applications where safe and reliable performance is of utmost importance, with the pumps also able to handle a reasonable amount of suspended solids.

The Yanmar powered trash pumps also feature unique mechanical seals that outlast conventional seals by up to six times, ensuring long-lasting performance. A big front mounted clean-out port also enables pumps to be purged of debris without disconnecting pipe work. The high density, cast iron, non-clog style, open impeller and volute system is designed to enable the pumping of solids and resistance to operational wear.



ADDITIONAL FEATURES
  • Big non clog open style impeller, enables pumping of solids in suspension
  • High SG grade cast iron impeller volute, resists wear and abrasion
  • Front mounted clean out port, makes pump chamber clearance easy, no dismantling of pump body or pipe work
  • Super robust aluminium body, provides corrosion resistant, long life
  • Full carry frame, protects pump and facilitates transport on site
  • Yanmar diesel engine (two year engine warranty), is a tried and proven engine with an established service networks throughout the world
  • Coupling & strainer kit included as standard options, prevents oversized material entering pump
  • Five year pump warranty, supports high quality pump, providing complete confidence



APPLICATIONS

Ideal for pumping water containing solids in suspension, such as:

  • Mine site dewatering
  • Waste water handling
  • Effluent pump out
  • Livestock waste water disposal
  • Solid laden mine waste pump out



PRODUCT PACKAGE INCLUDES
  • Aussie Mine Boss Trash Pump, 2" Ports (600 L/min max flow), 4.8 HP Yanmar Diesel Drive
  • Electric start kit, with gel battery and emergency stop
  • Lockable battery isolation to prevent unauthorised use
  • Coupling kit and strainer
  • Full carry frame, incorporating balancing bar
  • Integrated fire extinguisher



    Brand Aussie Pumps
    Model AUS-QP203T/L48EMS2
    Engine Yanmar L48E diesel (4.8 HP)
    Engine Start Mode Electric Start
    Gross Dimensions
    Weight  95 kg
    Length 630 mm
    Width 544 mm
    Depth 681 mm

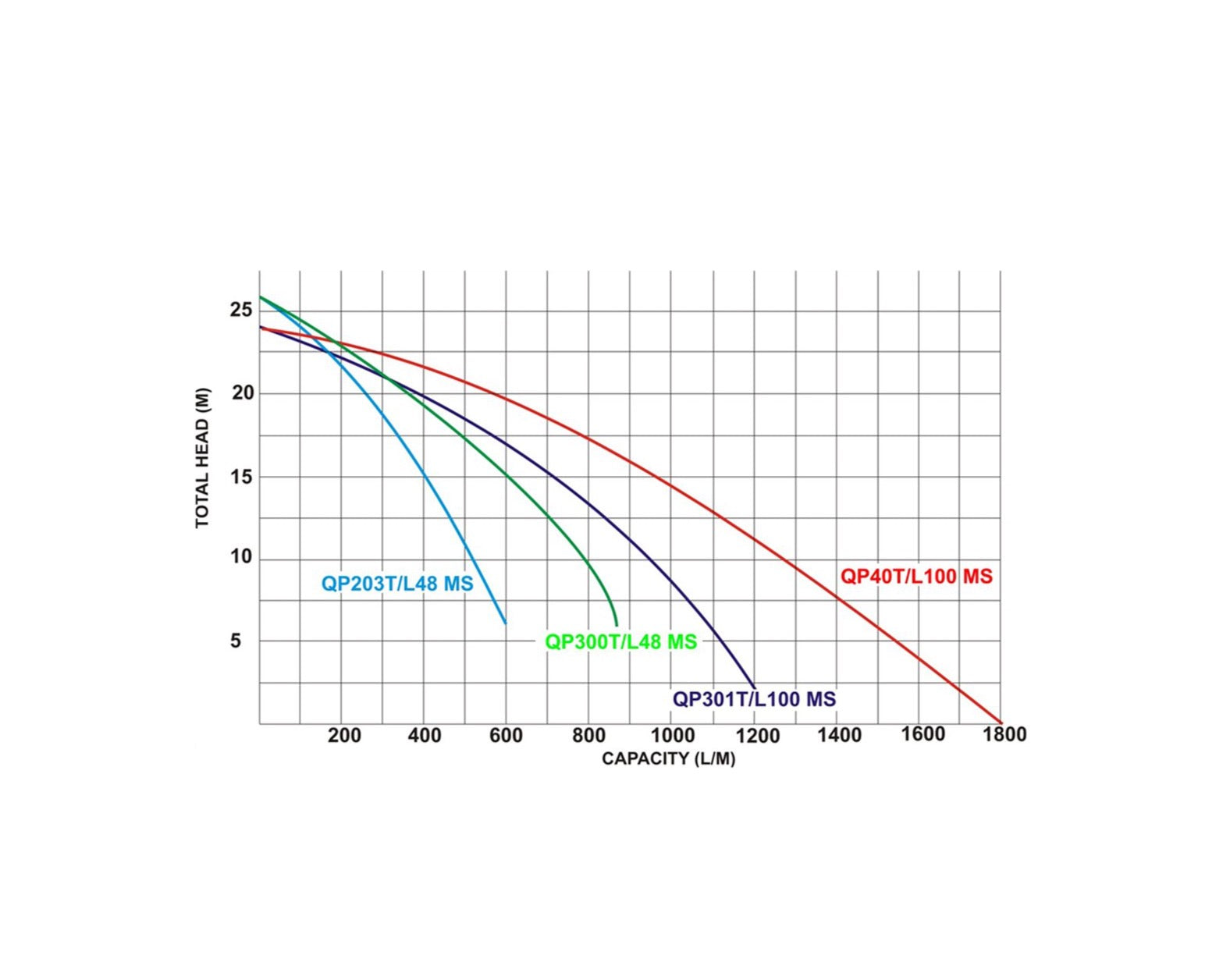

    Maximum Flow Rate 600 L/min @ 6 m total head
    Max Total Head 27 m
    Self-Prime Height 7.3 m
    Nominal Solids (max) 0.75"
    Size of Suction Port 2" BSPM
    Size of Outlet Connection 2" BSPM
    Materials of Construction
    Front Case Marine grade aluminum
    Volute High SG grade cast iron
    Impeller High SG grade cast iron, non clog, open type
    Back Plate Marine grade aluminum
    Mechanical Seal Silicon Carbide
    Outlet Marine grade aluminum
    Casing Bolts Zinc plated steel
    Check Valve Nitrile rubber
    Priming & Drain Plugs Polycarbonate
    Casing, Priming & Drain Plug O-Rings Nitrile Rubber
    Finish Brushed Aluminium



    The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.


    All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.


    ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.




    PRODUCT BROCHURE

    General information about the Aussie Mine Boss Trash Pump is outlined in the product brochure.

    DOWNLOAD



    INSTRUCTION MANUAL

    Instructions for the Aussie Mine Boss Trash Pump are outlined in the instruction manual.

    DOWNLOAD
