John Guest 15mm Superseal Pipe Insert

John Guest 15mm Superseal Pipe Insert

Product Code: JGU-STS15

John Guest Speedfit Twist and Lock fittings have a unique grip-then-seal construction, made up of a collet with stainless steel teeth to grip the pipe, and an O-Ring to provide a permanent leak proof seal.

$0.83 Excl. GST
$0.91 Incl. GST
In Stock - Available for Fast Delivery
Vendor: John Guest

Available

KEY FEATURES
  • State-of-art push-fit technology from John Guest
  • Quick disconnection without the need for tools
  • Full product range including fittings, tubing & accessories stocked in Australia by Parkway



Always use a John Guest Speedfit superseal pipe insert when connecting Speedfit pipe to a Speedfit push-fit fitting. Inserts play a vital role in providing extra support to pipework, ensuring that the ends of the pipe are kept nice and round, and minimising any loss of shape that can occur when cutting.

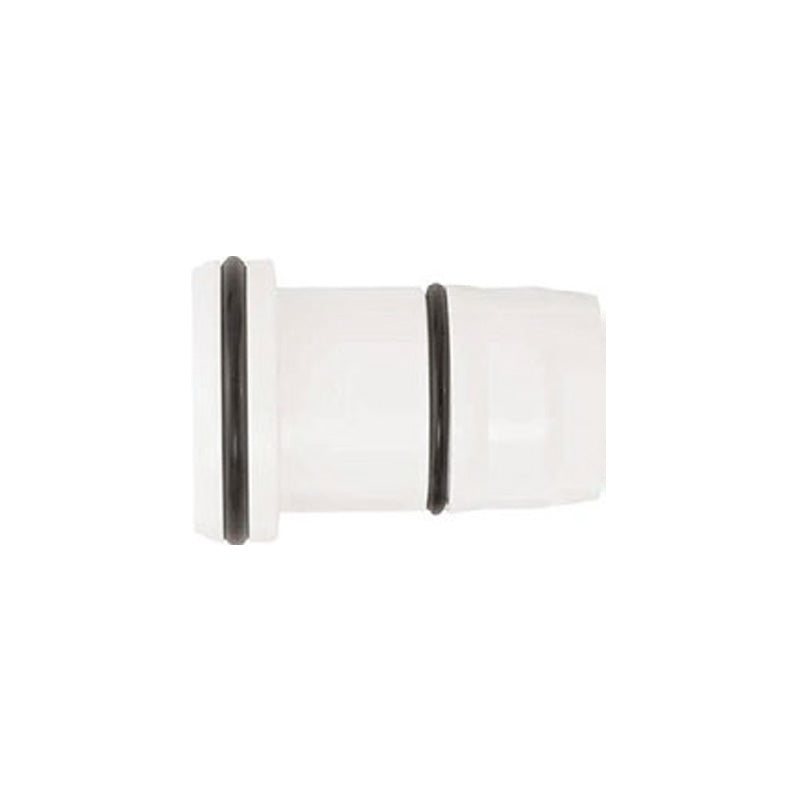

John Guest Speedfit superseal pipe insert contains dual O-Rings to provide even greater sealing security than a standard insert. The first O-Ring is on the stem that is pushed into the pipe to prevent water from inside the pipe passing between the inside of the pipe wall and the outside surface of the insert. The second O-Ring sits on the end of the insert and seals inside the push-fit fitting, becoming a seal between the main pipe and push-fit fitting. When superseal Inserts are used with Speedfit push-fit fittings a multi-seal is formed as all push-fit fittings also include a main O-Ring seal.



ADDITIONAL FEATURES
  • 2 extra O-Rings provide enhanced sealing (10mm version features one o-ring only)
  • Maintains structural integrity of the pipe connection
  • Helps make the pipe more rigid when a side load is applied
  • Suitable for hot and cold water and central heating systems
  • Suitable for Speedfit pipes and fittings only



APPLICATIONS
  • Hot and cold water and central heating systems



PRODUCT PACKAGE INCLUDES
  • John Guest 15mm Superseal Pipe Insert

    INSTALLATION INSTRUCTIONS


      Brand John Guest
      Model JGU-STS15
      Size 15mm outside diameter (OD) pipe.
      Weight  - g
      Length - mm
      Width - mm
      Depth - mm
      Material Plastic



      The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.


      All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.


      ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.




      PRODUCT INFORMATION SHEET (PIS)

      Additional information about the John Guest range of specialty fittings, valves, tube and accessories is outlined in the John Guest Technical Manual.

      DOWNLOAD

      KEY FEATURES
      • State-of-art push-fit technology from John Guest
      • Quick disconnection without the need for tools
      • Full product range including fittings, tubing & accessories stocked in Australia by Parkway



      Always use a John Guest Speedfit superseal pipe insert when connecting Speedfit pipe to a Speedfit push-fit fitting. Inserts play a vital role in providing extra support to pipework, ensuring that the ends of the pipe are kept nice and round, and minimising any loss of shape that can occur when cutting.

      John Guest Speedfit superseal pipe insert contains dual O-Rings to provide even greater sealing security than a standard insert. The first O-Ring is on the stem that is pushed into the pipe to prevent water from inside the pipe passing between the inside of the pipe wall and the outside surface of the insert. The second O-Ring sits on the end of the insert and seals inside the push-fit fitting, becoming a seal between the main pipe and push-fit fitting. When superseal Inserts are used with Speedfit push-fit fittings a multi-seal is formed as all push-fit fittings also include a main O-Ring seal.



      ADDITIONAL FEATURES
      • 2 extra O-Rings provide enhanced sealing (10mm version features one o-ring only)
      • Maintains structural integrity of the pipe connection
      • Helps make the pipe more rigid when a side load is applied
      • Suitable for hot and cold water and central heating systems
      • Suitable for Speedfit pipes and fittings only



      APPLICATIONS
      • Hot and cold water and central heating systems



      PRODUCT PACKAGE INCLUDES
      • John Guest 15mm Superseal Pipe Insert

        INSTALLATION INSTRUCTIONS


          SPECIFICATIONS
          Brand John Guest
          Model JGU-STS15
          Size 15mm outside diameter (OD) pipe.
          Weight  - g
          Length - mm
          Width - mm
          Depth - mm
          Material Plastic



          The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.


          All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.


          ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.




          ADDITIONAL RESOURCES
          PRODUCT INFORMATION SHEET (PIS)

          Additional information about the John Guest range of specialty fittings, valves, tube and accessories is outlined in the John Guest Technical Manual.

          DOWNLOAD
