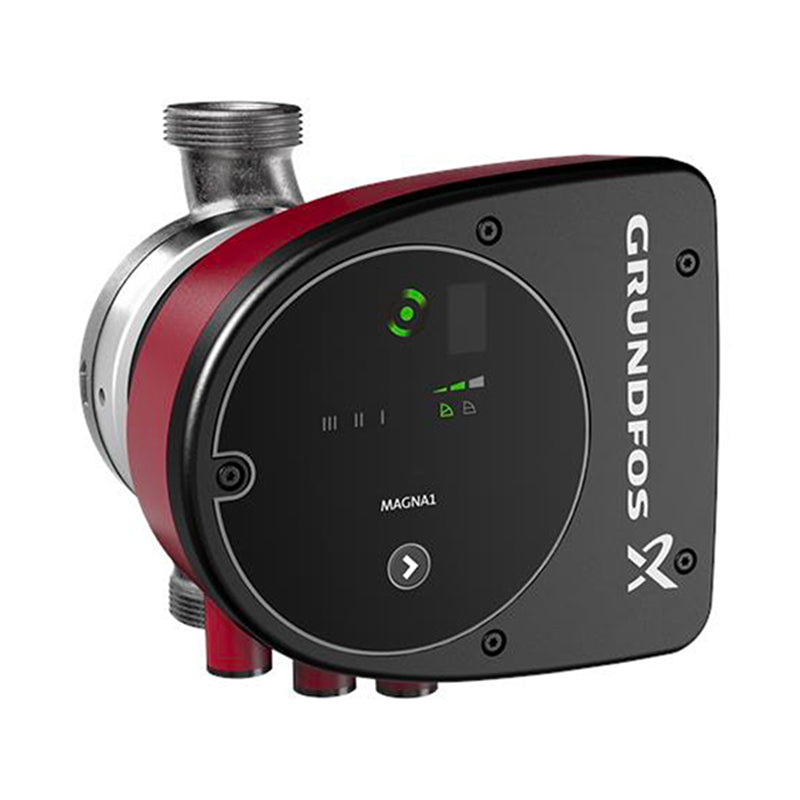

Grundfos MAGNA1 25-120 N Circulator Pump (9.7 m³/h max flow rate)

Grundfos MAGNA1 25-120 N Circulator Pump (9.7 m³/h max flow rate)

Product Code: GRU-99221227

The Grundfos MAGNA1 Circulator Pumps are designed for circulating liquids in heating systems with variable flows where it is desirable to optimise the setting of the pump duty point, thus reducing energy costs.

$2,284.00 Excl. GST
$2,512.40 Incl. GST
Enquire about availability
Vendor: Grundfos

Unavailable

KEY FEATURES
  • High efficiency circulator pump
  • Digital start/stop input available for remote pump control
  • No maintenance due to the canned-rotor type design


The Grundfos MAGNA1 25-1200 N Circulator Pump is designed for circulating liquids in heating systems with variable flows where it is desirable to optimise the setting of the pump duty point, thus reducing energy costs.

The pump range can also be used for air conditioning and cooling systems, ground source heat pump systems and solar-heating systems.

With this range of circulator pumps, everything from setup to basic control and monitoring are made easy. The pump is maintenance-free due to the canned-rotor type design.

The Grundfos MAGNA1 offers the possibility of monitoring the pump via the fault relay output. The digital start/stop input remotely controls the pump. The pump communicates wirelessly with the Grundfos GO Remote app.



ADDITIONAL FEATURES
  • High grade stainless steel pump housing
  • Easy setup and operation via the simple user interface
  • LED indication of the pump setting
  • Low noise level



APPLICATIONS
  • The circulator pumps are designed for circulating liquids in heating systems with variable flows where it is desirable to optimise the setting of the pump duty point, thus reducing energy costs.
  • Applications in heating systems
    • Main pump
    • Mixing loops
    • Domestic hot-water systems
    • Heating surfaces
    • Air-conditioning surfaces
    • Smaller chiller applications



PRODUCT PACKAGE INCLUDES
  • Grundfos MAGNA1 25-120 N Circulator Pump
  • External wiring not included



    Brand Grundfos
    Gross Dimensions
    Weight  5.44 kg
    Length 196 mm
    Width 203 mm
    Depth 190 mm
    Maximum Flow Rate 9.7 m³/hr
    Maximum Head 12 m
    Max Operating Pressure 10 bar
    Liquid Temperature Range -10 - 110 °C
    Power Rating 8 - 188 W (230 V AC, 50 / 60 Hz Power Supply)
    Rated Current
    0.08 - 1.51 A
    Size of Inlet Connection G 1 1/2"
    Size of Outlet Connection G 1 1/2"
    Pressure Rating for Connection PN 10



    The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.


    All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.


    ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.




    PRODUCT BROCHURE

    General information about the Grundfos MAGNA1 25-120 N Circulator Pump range is outlined in the Grundfos MAGNA1 Circulator Pump brochure.

    DOWNLOAD



    PRODUCT INFORMATION SHEET (PIS)

    Detailed information about the Grundfos MAGNA1 25-120 N Circulator Pump is outlined in the Grundfos MAGNA1 25-120 N Circulator Pump product information sheet.

    DOWNLOAD


    USER MANUAL

    Additional information about operating the Grundfos MAGNA1 25-120 N Circulator Pump is outlined in the Grundfos MAGNA1 Circulator Pump range, instruction manual.

    DOWNLOAD


    KEY FEATURES
    • High efficiency circulator pump
    • Digital start/stop input available for remote pump control
    • No maintenance due to the canned-rotor type design


    The Grundfos MAGNA1 25-1200 N Circulator Pump is designed for circulating liquids in heating systems with variable flows where it is desirable to optimise the setting of the pump duty point, thus reducing energy costs.

    The pump range can also be used for air conditioning and cooling systems, ground source heat pump systems and solar-heating systems.

    With this range of circulator pumps, everything from setup to basic control and monitoring are made easy. The pump is maintenance-free due to the canned-rotor type design.

    The Grundfos MAGNA1 offers the possibility of monitoring the pump via the fault relay output. The digital start/stop input remotely controls the pump. The pump communicates wirelessly with the Grundfos GO Remote app.



    ADDITIONAL FEATURES
    • High grade stainless steel pump housing
    • Easy setup and operation via the simple user interface
    • LED indication of the pump setting
    • Low noise level



    APPLICATIONS
    • The circulator pumps are designed for circulating liquids in heating systems with variable flows where it is desirable to optimise the setting of the pump duty point, thus reducing energy costs.
    • Applications in heating systems
      • Main pump
      • Mixing loops
      • Domestic hot-water systems
      • Heating surfaces
      • Air-conditioning surfaces
      • Smaller chiller applications



    PRODUCT PACKAGE INCLUDES
    • Grundfos MAGNA1 25-120 N Circulator Pump
    • External wiring not included



      SPECIFICATIONS
      Brand Grundfos
      Gross Dimensions
      Weight  5.44 kg
      Length 196 mm
      Width 203 mm
      Depth 190 mm
      Maximum Flow Rate 9.7 m³/hr
      Maximum Head 12 m
      Max Operating Pressure 10 bar
      Liquid Temperature Range -10 - 110 °C
      Power Rating 8 - 188 W (230 V AC, 50 / 60 Hz Power Supply)
      Rated Current
      0.08 - 1.51 A
      Size of Inlet Connection G 1 1/2"
      Size of Outlet Connection G 1 1/2"
      Pressure Rating for Connection PN 10



      The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.


      All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.


      ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.




      ADDITIONAL RESOURCES
      PRODUCT BROCHURE

      General information about the Grundfos MAGNA1 25-120 N Circulator Pump range is outlined in the Grundfos MAGNA1 Circulator Pump brochure.

      DOWNLOAD



      PRODUCT INFORMATION SHEET (PIS)

      Detailed information about the Grundfos MAGNA1 25-120 N Circulator Pump is outlined in the Grundfos MAGNA1 25-120 N Circulator Pump product information sheet.

      DOWNLOAD


      USER MANUAL

      Additional information about operating the Grundfos MAGNA1 25-120 N Circulator Pump is outlined in the Grundfos MAGNA1 Circulator Pump range, instruction manual.

      DOWNLOAD
