Grundfos PVDF Injection Unit with Non-Return Valve, suitable for G 1/2" Outlet and 4/6, 6/9, 6/12, 9/12 mm inlet

Grundfos PVDF Injection Unit with Non-Return Valve, suitable for G 1/2" Outlet and 4/6, 6/9, 6/12, 9/12 mm inlet

Product Code: GRU-95730932

The Grundfos Injection unit is an integrated unit that connects the chemical dosing line with the process line, whilst ensuring a minimum counter-pressure exists in order prevent back-flow of the dosing medium.

In Stock - Available for Fast Delivery
Vendor: Grundfos

Available

KEY FEATURES
  • Injection units connect the dosing line with the process line
  • Maintains minimum counter-pressure and avoids back-flow of the dosing medium
  • Suitable for range of chemical dosing systems



The Grundfos Injection unit is an integrated unit that connect the chemical dosing line with the process line, whilst ensuring a minimum counter-pressure exists in order prevent back-flow of the dosing medium.



ADDITIONAL FEATURES
  • Durable and rugged design
  • Incorporates spring-loaded non-return valve with Tantal spring



APPLICATIONS
  • The injection unit is typically used in a range of chemical dosing related applications.

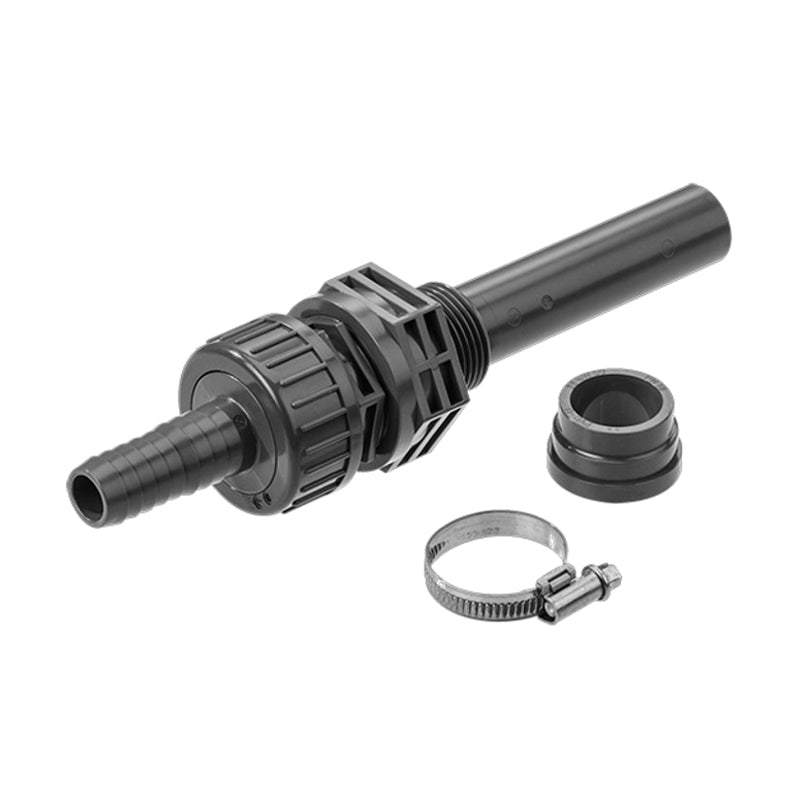

PRODUCT PACKAGE INCLUDES
  • Grundfos Injection Unit with Non-Return Valve
  • Stainless steel hose fastening clamp
  • Threaded fastening fitting



    Brand Grundfos
    Model Injection unit 0200-16 PV/T/C 4U2-20/100
    Gross Dimensions
    Weight  105 g
    Length 232 mm
    Width 166 mm
    Depth 35 mm
    Maximum Flow Rate 60 L/h
    Maximum Operating Pressure 16 bar
    Opening Pressure 0.8 bar
    Inlet Connection Type Hose
    Size of Inlet Connection 4/6 mm, 6/9 mm, 6/12 mm, 9/12 mm
    Size of Outlet Connection G 1/2"
    Material - Housing PVDF
    Material - Ball Valve Ceramic
    Gasket PTFE



    The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.


    All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.


    ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.




    PRODUCT INFORMATION SHEET (PIS)

    Detailed information about the Grundfos Injection Unit with Non-Return Valve is outlined in the Grundfos Injection Unit with Non-Return Valve product information sheet.

    DOWNLOAD

    KEY FEATURES
    • Injection units connect the dosing line with the process line
    • Maintains minimum counter-pressure and avoids back-flow of the dosing medium
    • Suitable for range of chemical dosing systems



    The Grundfos Injection unit is an integrated unit that connect the chemical dosing line with the process line, whilst ensuring a minimum counter-pressure exists in order prevent back-flow of the dosing medium.



    ADDITIONAL FEATURES
    • Durable and rugged design
    • Incorporates spring-loaded non-return valve with Tantal spring



    APPLICATIONS
    • The injection unit is typically used in a range of chemical dosing related applications.



    PRODUCT PACKAGE INCLUDES
    • Grundfos Injection Unit with Non-Return Valve
    • Stainless steel hose fastening clamp
    • Threaded fastening fitting



      SPECIFICATIONS
      Brand Grundfos
      Model Injection unit 0200-16 PV/T/C 4U2-20/100
      Gross Dimensions
      Weight  105 g
      Length 232 mm
      Width 166 mm
      Depth 35 mm
      Maximum Flow Rate 60 L/h
      Maximum Operating Pressure 16 bar
      Opening Pressure 0.8 bar
      Inlet Connection Type Hose
      Size of Inlet Connection 4/6 mm, 6/9 mm, 6/12 mm, 9/12 mm
      Size of Outlet Connection G 1/2"
      Material - Housing PVDF
      Material - Ball Valve Ceramic
      Gasket PTFE



      The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.


      All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.


      ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.




      ADDITIONAL RESOURCES
      PRODUCT INFORMATION SHEET (PIS)

      Detailed information about the Grundfos Injection Unit with Non-Return Valve is outlined in the Grundfos Injection Unit with Non-Return Valve product information sheet.

      DOWNLOAD
