KEY FEATURES

• High quality diaphragm pressure tank with vertical configuration

• Chlorine-resistant  butyl diaphragm with copolymer liner for superior air and water separation.

• Suitable for both drinking water and seawater

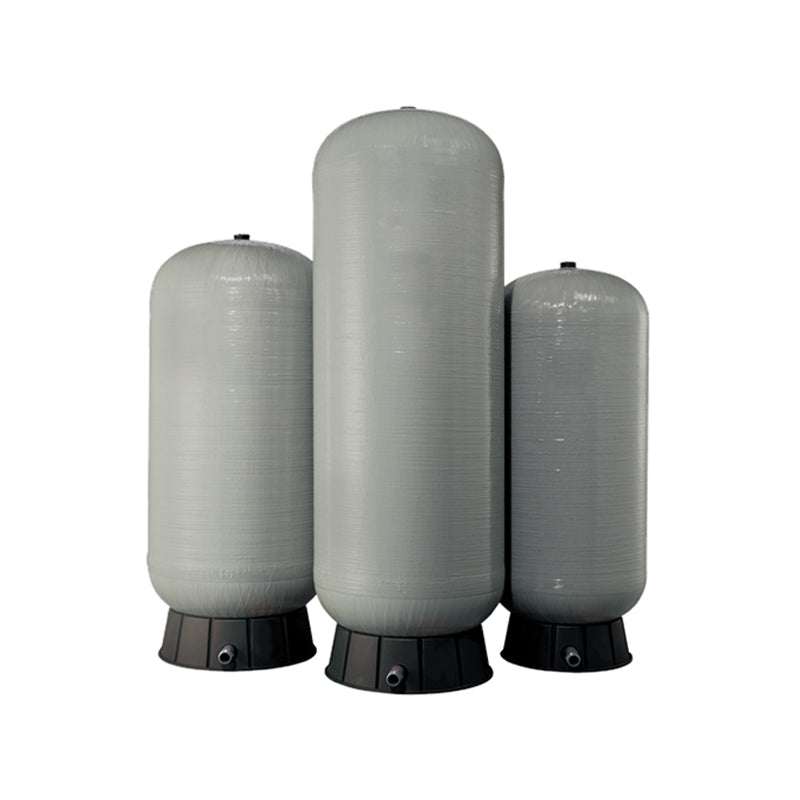

The Grundfos GT-C-130 Composite 130 L Pressure Tank is approved for drinking water applications and suitable for vertical installation. The pressure tanks is designed for a maximum operation pressure of 8.6 bar and a maximum liquid temperature of 50 °C.

The diaphragm is a chlorine-resistant 100 % butyl diaphragm with a precision-moulded copolymer polypropylene liner for superior air and water separation. The tank has a FlowThru connection, which constantly flushes the tank while the pump is running. This ensures that the water in the tank remains fresh and eliminates the risk of stagnant water during normal system operation.

The Grundfos GT-C-130 Composite 130 L Pressure Tank is incorporates a chlorine-resistant 100 % butyl diaphragm with a precision-moulded copolymer polypropylene liner for superior air and water separation. The tank has a FlowThru connection, which constantly flushes the tank while the pump is running. This ensures that the water in the tank remains fresh and eliminates the risk of stagnant water during normal system operation.

The tanks have a non-replaceable diaphragm that is pre-charged with nitrogen (1.5 bar). The tanks have a non-toxic butyl rubber diaphragm, dividing the tank chamber into two compartments. The upper compartment contains compressed nitrogen. The lower compartment has a liner of polypropylene (PP) and is filled with water from the pump.

A pressure tank ensures controlled pressure in the water supply and thereby limits the switching frequency of the pump in case of low water consumption or leakage loss. The result is increased comfort in your installation by limiting the start/stop frequency of your pump, and it increases system comfort by compensating for pressure drops when a tap is opened, while reducing problems with water hammer in the pipework.

ADDITIONAL FEATURES

• Made of durable materials

• Incorporates FlowThru connection

APPLICATIONS

• A wide range of small scale water related applications including both drinking water and seawater related

PRODUCT PACKAGE INCLUDES

• Grundfos GT-C-130 Composite 130 L Pressure Tank

SPECIFICATIONS

The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.

All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.

ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.

ADDITIONAL RESOURCES

PRODUCT BROCHURE

General information about the Grundfos GT-C-130 Composite 130 L Pressure Tank is outlined in the Grundfos GT Pressure Tanks brochure.

DOWNLOAD

PRODUCT INFORMATION SHEET (PIS)

Detailed information about the Grundfos GT-C-130 Composite 130 L Pressure Tank is outlined in the Grundfos GT-C-130 Composite 130 L Pressure Tank product information sheet.

DOWNLOAD

USER MANUAL

Additional information about installing and operating the Grundfos GT-C-130 Composite 130 L Pressure Tank is outlined in the Grundfos GT Pressure Tank range, instruction manual.

DOWNLOAD
