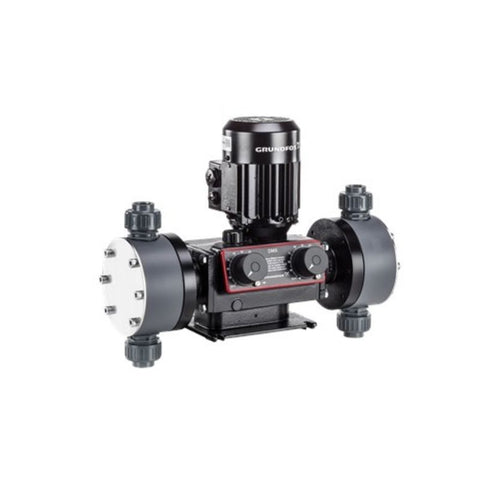

Grundfos DMX 82-5D Dual-Head Dosing Pump 82 L/h 5 Bar
Grundfos DMX 82-5D Dual-Head Dosing Pump 82 L/h 5 Bar
The Grundfos DMX 82-5D is a robust dual-head mechanical diaphragm dosing pump rated at 82 L/h and 5 bar. It features two PVC dosing heads, PTFE-coated diaphragms, ceramic valve balls and manual stroke-length adjustment. Ideal for water treatment, chemical dosing, pH adjustment and industrial process applications.
Vendor: Grundfos
Unavailable
KEY FEATURES
- 82 L/h nominal dosing capacity at 50 Hz
- 5 bar maximum operating pressure
- Robust dual-head positive displacement diaphragm dosing pump
- Two PVC dosing heads
- Mechanically coupled diaphragm drive
- Long-life PTFE-coated diaphragms
- Ceramic (Al₂O₃) valve balls
- PTFE/composite valve seats
- FKM/rubber valve gaskets
- Single ball valve design
- Handles liquids up to 500 mPa·s viscosity
- Manual stroke-length adjustment with 10:1 adjustment ratio
- Robust aluminium pump housing
- Standard inlet and outlet non-return valves
- 19/27 and 20/25 connection size options
- Liquid temperature range from 0 to 40 °C
- 3 × 230/400 V, 50 Hz three-phase motor
- 0.2 kW power input
- IP65 enclosure rating
- CE, EAC and CNROHSEX approvals
The Grundfos DMX 82-5D is a versatile dual-head positive displacement diaphragm dosing pump designed for reliable chemical dosing in demanding industrial and process applications. Featuring two PVC dosing heads, robust aluminium construction and mechanically coupled diaphragm technology, the pump provides dependable dosing performance with straightforward manual capacity adjustment.
The diaphragms are mechanically coupled through a precise gear-eccenter-tappet system to a high-efficiency AC motor. Dosing capacity can be adjusted by varying the stroke length using the stroke adjustment knob, providing an adjustment ratio of 1:10. The dual-head configuration supports chemical metering through two dosing heads, while the single ball valve design and durable construction provide reliable operation in industrial process environments.
This configuration features two PVC dosing heads, long-life PTFE-coated diaphragms, ceramic Al₂O₃ valve balls, PTFE/composite valve seats and FKM/rubber valve gaskets. With a specified nominal dosing capacity of 82 L/h at 50 Hz, maximum operating pressure of 5 bar and compatibility with liquids up to 500 mPa·s viscosity, the pump is suitable for compatible chemical dosing and industrial process applications.
ADDITIONAL FEATURES
- Two PVC dosing heads for dual-head dosing operation
- Long-life PTFE-coated diaphragms
- Mechanically coupled diaphragm design
- Easy-to-install and operate design
- Robust aluminium enclosure
- Optimum capacity and stroke-frequency graduation
- Dosing flow variation ±1.5% (FS)
- Linearity ±4% (FS)
- Single ball valve design
- Standard inlet non-return valve
- Standard outlet non-return valve
- Connection packs for inlet and outlet
- Connection sizes: 19/27 and 20/25
- Maximum permissible inlet pressure of 0 bar
- Liquid temperature range from 0 to 40 °C
- Standard control variant
- Not prepared for VFD operation
- IP65 motor enclosure
APPLICATIONS
- Process engineering, water treatment, wastewater treatment, industrial chemical dosing, chemical treatment, disinfection, pH adjustment and other compatible applications requiring reliable dual-head chemical metering at pressures up to 5 bar.
PRODUCT PACKAGE INCLUDES
- Grundfos DMX 82-5D Dual-Head Mechanical Dosing Pump
SPECIFICATIONS
| Specification | Details |
|---|---|
| Product Name | Grundfos DMX 82-5D |
| Product Number | 99799767 |
| Product SKU | GRU-99799767 |
| Model / Configuration | DMX 82-5D B-PVC/V/C-R-E1U3U3XEMAG |
| EAN Number | 5713834471391 |
| Pump Type | Positive displacement diaphragm dosing pump |
| Diaphragm Drive | Mechanically coupled |
| Nominal Flow Rate | 82 L/h at 50 Hz (approx. 21.66 US GPH) |
| Maximum Operating Pressure | 5 bar (approx. 72.52 psi) |
| Number of Dosing Heads | 2 |
| Maximum Viscosity | 500 mPa·s |
| Pump Housing | Aluminium |
| Dosing Head Material - Pump 1 | PVC |
| Dosing Head Material - Pump 2 | PVC |
| Diaphragm | PTFE-coated |
| Valve Ball Material | Ceramic (Al₂O₃) |
| Valve Seat Material | PTFE / Composite |
| Valve Gasket Material | FKM / Rubber |
| Valve Configuration | Single ball valves |
| Inlet Non-Return Valve | Standard |
| Outlet Non-Return Valve | Standard |
| Inlet Connection | Connection pack |
| Outlet Connection | Connection pack |
| Connection Sizes | 19/27, 20/25 |
| Maximum Permissible Inlet Pressure | 0 bar |
| Liquid Temperature Range | 0 to 40 °C |
| Power Input (P1) | 0.2 kW (approx. 0.268 HP) |
| Rated Voltage | 3 × 230/400 V |
| Mains Frequency | 50 Hz |
| Maximum Frequency | 50 Hz |
| Enclosure Class | IP65 |
| Control Variant | Standard |
| Frequency Converter | Not prepared for VFD |
| Cable Included | No |
| Power Plug | No plug |
| Diaphragm Leakage Detection | No |
| Net Weight | 20.2 kg (approx. 44.5 lb) |
| Gross Weight | 31.4 kg (approx. 69.2 lb) |
| Shipping Volume | 0.156 m³ |
| Approvals | CE, EAC, CNROHSEX |
ADDITIONAL RESOURCES
PRODUCT BROCHURE
Additional information about Grundfos DMH Mechanical Dosing Pumps are outlined in the DMH product brochure.
x
PRODUCT INFORMATION SHEET (PIS)
Detailed information about the product, is provided in the product information sheet below.
