KEY FEATURES

• 67 L/h nominal dosing capacity at 50 Hz
• 10 bar maximum operating pressure
• Robust dual-head positive displacement diaphragm dosing pump
• Two PVDF dosing heads
• Mechanically coupled diaphragm drive
• Long-life PTFE-coated diaphragms
• PTFE/composite valve balls
• PTFE/composite valve seats
• PTFE/composite valve gaskets
• Single ball valve design
• Handles liquids up to 700 mPa·s viscosity
• Manual stroke-length adjustment with 10:1 adjustment ratio
• Robust aluminium pump housing
• Standard inlet and outlet non-return valves
• 19/27 and 20/25 connection size options
• Liquid temperature range from -10 to 60 °C
• 3 × 230/400 V, 50 Hz three-phase motor
• 0.4 kW power input
• IP65 enclosure rating
• CE, EAC and CNROHSEX approvals

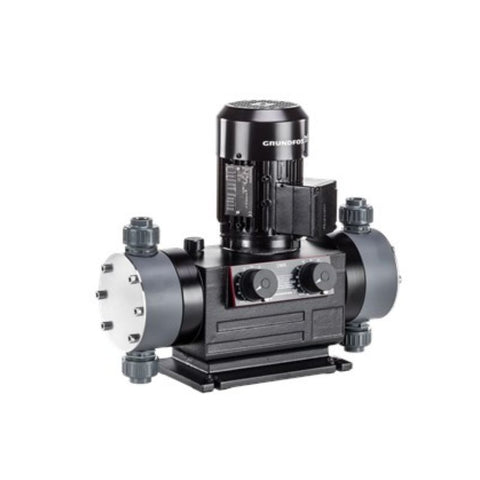

The Grundfos DMX 67-10D is a versatile dual-head positive displacement diaphragm dosing pump designed for reliable chemical dosing in demanding industrial and process applications. Featuring two PVDF dosing heads, robust aluminium construction and mechanically coupled diaphragm technology, the pump provides dependable dosing performance with straightforward manual capacity adjustment.

The diaphragms are mechanically coupled through a precise gear-eccenter-tappet system to a high-efficiency AC motor. Dosing capacity can be adjusted by varying the stroke length using the stroke adjustment knob, providing an adjustment ratio of 1:10. The dual-head configuration supports chemical metering through two dosing heads, while the single ball valve design and durable construction provide reliable operation in industrial process environments.

This configuration features two PVDF dosing heads, long-life PTFE-coated diaphragms, PTFE/composite valve balls, PTFE/composite valve seats and PTFE/composite valve gaskets. With a specified nominal dosing capacity of 67 L/h at 50 Hz, maximum operating pressure of 10 bar and compatibility with liquids up to 700 mPa·s viscosity, the pump is suitable for compatible chemical dosing and industrial process applications.

ADDITIONAL FEATURES

• Two PVDF dosing heads for dual-head dosing operation
• Long-life PTFE-coated diaphragms
• Mechanically coupled diaphragm design
• Easy-to-install and operate design
• Robust aluminium enclosure
• Optimum capacity and stroke-frequency graduation
• Dosing flow variation ±1.5% (FS)
• Linearity ±4% (FS)
• Single ball valve design
• Standard inlet non-return valve
• Standard outlet non-return valve
• Connection packs for inlet and outlet
• Connection sizes: 19/27 and 20/25
• Maximum permissible inlet pressure of 0 bar
• Liquid temperature range from -10 to 60 °C
• Standard control variant
• Not prepared for VFD operation
• IP65 motor enclosure

APPLICATIONS

• Process engineering, water treatment, wastewater treatment, industrial chemical dosing, chemical treatment, disinfection, pH adjustment and other compatible applications requiring reliable dual-head chemical metering at pressures up to 10 bar.

PRODUCT PACKAGE INCLUDES

• Grundfos DMX 67-10D Dual-Head Mechanical Dosing Pump
