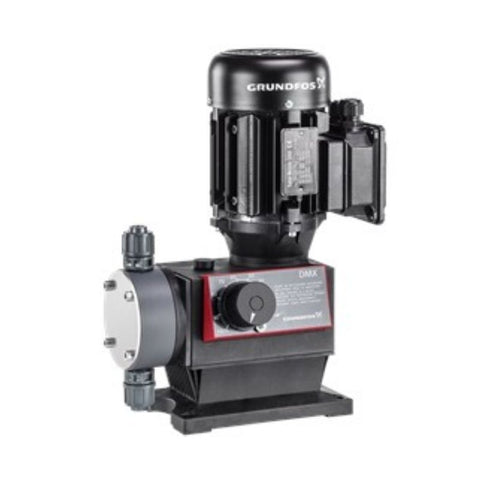

Grundfos DMX 16-12 Mechanical Dosing Pump 16 L/h 12 Bar
Grundfos DMX 16-12 Mechanical Dosing Pump 16 L/h 12 Bar
The Grundfos DMX 16-12 is a robust mechanical diaphragm dosing pump delivering up to 16 L/h at 12 bar. It features a PVC dosing head, PTFE-coated diaphragm, ceramic valve balls and manual stroke-length adjustment. Ideal for water treatment, chemical dosing, disinfection, pH adjustment and industrial process applications.
Vendor: Grundfos
Unavailable
KEY FEATURES
- Approx. 16 L/h nominal dosing capacity at 50 Hz
- 12 bar maximum operating pressure
- Robust positive displacement diaphragm dosing pump
- Mechanically coupled diaphragm drive
- PVC dosing head
- Long-life PTFE-coated diaphragm
- Ceramic (Al₂O₃) valve balls
- FKM valve seats
- FKM valve gaskets
- Double ball valve design for this flow range
- Handles liquids up to 200 mPa·s viscosity
- Manual stroke-length adjustment with 10:1 adjustment ratio
- Standard inlet and outlet non-return valves
- Multiple inlet and outlet connection size options
- Maximum suction lift during operation of 4 m
- 3 × 230/400 V, 50 Hz three-phase motor
- 0.09 kW power input
- IP65 enclosure rating
- CE, EAC and CNROHSEX approvals
The Grundfos DMX 16-12 is a versatile positive displacement diaphragm dosing pump designed for reliable chemical dosing in industrial and process applications. The DMX 221 series combines robust construction with straightforward mechanical capacity adjustment for dependable dosing performance.
The diaphragm is mechanically coupled through a precise gear-eccenter-tappet system to a high-efficiency AC motor. Dosing capacity can be adjusted by varying the stroke length using the stroke adjustment knob, providing an adjustment ratio of 1:10. The DMX 221 design uses double ball valves for capacities up to 50 L/h, supporting reliable dosing performance across this flow range.
This configuration features a PVC dosing head, long-life PTFE-coated diaphragm, ceramic Al₂O₃ valve balls, FKM valve seats and FKM valve gaskets. With a nominal dosing capacity of 16 L/h, maximum operating pressure of 12 bar and compatibility with liquids up to 200 mPa·s viscosity, the pump provides a robust solution for compatible industrial and chemical dosing applications.
ADDITIONAL FEATURES
- Long-life PTFE-coated diaphragm
- Mechanically coupled diaphragm design
- Easy-to-install and operate design
- Chemically resistant thermoplastic pump housing
- Optimum capacity and stroke-frequency graduation
- Dosing flow variation ±1.5% (FS)
- Linearity ±4% (FS)
- Double ball valve design for capacities up to 50 L/h
- Standard inlet non-return valve
- Standard outlet non-return valve
- Connection pack for inlet and outlet
- Connection sizes: 4/6, 6/9, 6/12 and 9/12
- Maximum suction lift during operation of 4 m
- Liquid temperature range from 0 to 40 °C
- Standard control variant
- Not prepared for VFD operation
- IP65 motor enclosure
APPLICATIONS
- Process engineering, water treatment, wastewater treatment, industrial chemical dosing, chemical treatment, disinfection, pH adjustment and other applications requiring reliable chemical metering at pressures up to 12 bar.
PRODUCT PACKAGE INCLUDES
- Grundfos DMX 16-12 Mechanical Dosing Pump
SPECIFICATIONS
| Specification | Details |
|---|---|
| Product Name | Grundfos DMX 16-12 |
| Product Number | 99205916 |
| Model / Configuration | DMX 16-12 B-PVC/V/C-X-E1U2U2XEMNG |
| EAN Number | 5712608669392 |
| Pump Type | Positive displacement diaphragm dosing pump |
| Diaphragm Drive | Mechanically coupled |
| Nominal Flow Rate | 16 L/h at 50 Hz (approx. 4.23 US GPH) |
| Maximum Operating Pressure | 12 bar (approx. 174.0 psi) |
| Number of Dosing Heads | 1 |
| Maximum Viscosity | 200 mPa·s |
| Pump Housing | Thermoplastic |
| Dosing Head Material | PVC |
| Diaphragm | PTFE-coated |
| Valve Ball Material | Ceramic (Al₂O₃) |
| Valve Seat Material | FKM / Rubber |
| Valve Gasket Material | FKM / Rubber |
| Valve Configuration | Double ball valves |
| Inlet Non-Return Valve | Standard |
| Outlet Non-Return Valve | Standard |
| Inlet Connection | Connection pack |
| Outlet Connection | Connection pack |
| Connection Sizes | 4/6, 6/9, 6/12, 9/12 |
| Maximum Permissible Inlet Pressure | 0 bar |
| Maximum Suction Lift During Operation | 4 m |
| Liquid Temperature Range | 0 to 40 °C |
| Power Input (P1) | 0.09 kW (approx. 0.121 HP) |
| Rated Voltage | 3 × 230/400 V |
| Mains Frequency | 50 Hz |
| Maximum Frequency | 50 Hz |
| Enclosure Class | IP65 |
| Control Variant | Standard |
| Frequency Converter | Not prepared for VFD |
| Cable Included | No |
| Power Plug | No plug |
| Diaphragm Leakage Detection | No |
| Net Weight | 7 kg (approx. 15.4 lb) |
| Gross Weight | 9.55 kg (approx. 21.1 lb) |
| Shipping Volume | 0.04 m³ |
| Approvals | CE, EAC, CNROHSEX |
| Country of Origin | Germany (DE) |
| Custom Tariff Number | 8413509060 |
