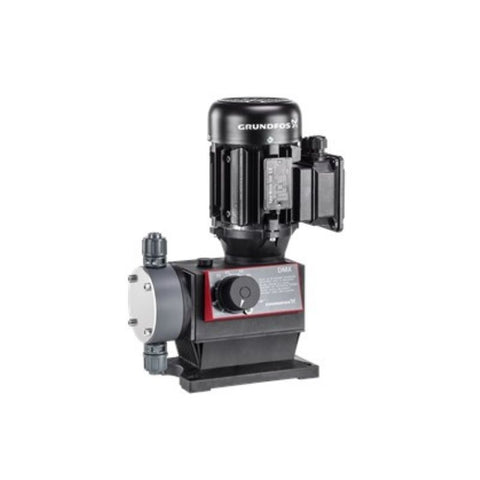

Grundfos DMX 115-3 Stainless Steel Dosing Pump 115 L/h 3 Bar
Grundfos DMX 115-3 Stainless Steel Dosing Pump 115 L/h 3 Bar
The Grundfos DMX 115-3 is a robust mechanical diaphragm dosing pump delivering up to 115 L/h at 3 bar. It features a stainless steel dosing head, PTFE-coated diaphragm, stainless steel valve components and manual stroke-length adjustment. Ideal for water treatment, chemical dosing, pH adjustment and industrial process applications.
Vendor: Grundfos
Unavailable
KEY FEATURES
- Approx. 115 L/h nominal dosing capacity at 50 Hz
- 3 bar maximum operating pressure
- Robust positive displacement diaphragm dosing pump
- Mechanically coupled diaphragm drive
- Stainless steel EN 1.4571 dosing head
- Long-life PTFE-coated diaphragm
- Stainless steel EN 1.4401 valve balls
- Stainless steel EN 1.4571 valve seats
- FKM/rubber valve gaskets
- Single ball valve design for this flow range
- Handles liquids up to 100 mPa·s viscosity
- Manual stroke-length adjustment with 10:1 adjustment ratio
- Standard inlet and outlet non-return valves
- Rp 3/4-inch inlet and outlet connections
- Liquid temperature range from -10 to 70 °C
- 3 × 230/400 V, 50 Hz three-phase motor
- 0.09 kW power input
- IP65 enclosure rating
- CE, EAC and CNROHSEX approvals
The Grundfos DMX 115-3 is a versatile positive displacement diaphragm dosing pump designed for reliable chemical dosing in demanding industrial and process applications. The DMX 221 series combines robust construction with straightforward mechanical capacity adjustment for dependable dosing performance.
The diaphragm is mechanically coupled through a precise gear-eccenter-tappet system to a high-efficiency AC motor. Dosing capacity can be adjusted by varying the stroke length using the stroke adjustment knob, providing an adjustment ratio of 1:10. The DMX 221 design uses single ball valves from 60 L/h, making this 115 L/h configuration suitable for higher-flow dosing duties.
This configuration features a stainless steel EN 1.4571 dosing head, long-life PTFE-coated diaphragm, stainless steel EN 1.4401 valve balls, stainless steel EN 1.4571 valve seats and FKM/rubber valve gaskets. With a nominal dosing capacity of 115 L/h, maximum operating pressure of 3 bar and compatibility with liquids up to 100 mPa·s viscosity, the pump provides dependable performance for compatible industrial and chemical dosing applications.
ADDITIONAL FEATURES
- Long-life PTFE-coated diaphragm
- Mechanically coupled diaphragm design
- Easy-to-install and operate design
- Chemically resistant thermoplastic pump housing
- Stainless steel liquid-end components
- Optimum capacity and stroke-frequency graduation
- Dosing flow variation ±1.5% (FS)
- Linearity ±4% (FS)
- Single ball valve design for capacities from 60 L/h
- Standard inlet non-return valve
- Standard outlet non-return valve
- Rp threaded inlet and outlet connections
- 3/4-inch inlet and outlet connection size
- Maximum permissible inlet pressure of 0 bar
- Liquid temperature range from -10 to 70 °C
- Standard control variant
- Not prepared for VFD operation
- IP65 motor enclosure
APPLICATIONS
- Process engineering, water treatment, wastewater treatment, industrial chemical dosing, chemical treatment, disinfection, pH adjustment and other compatible applications requiring reliable chemical metering at pressures up to 3 bar.
PRODUCT PACKAGE INCLUDES
- Grundfos DMX 115-3 Stainless Steel Mechanical Dosing Pump
SPECIFICATIONS
| Specification | Details |
|---|---|
| Product Name | Grundfos DMX 115-3 |
| Product Number | 99592028 |
| Model / Configuration | DMX 115-3 B-SS/V/SS-X-E1A1A1XEMNG |
| EAN Number | 5713831566373 |
| Pump Type | Positive displacement diaphragm dosing pump |
| Diaphragm Drive | Mechanically coupled |
| Nominal Flow Rate | 115 L/h at 50 Hz (approx. 30.38 US GPH) |
| Maximum Operating Pressure | 3 bar (approx. 43.5 psi) |
| Number of Dosing Heads | 1 |
| Maximum Viscosity | 100 mPa·s |
| Pump Housing | Thermoplastic |
| Dosing Head Material | Stainless steel EN 1.4571 |
| Diaphragm | PTFE-coated |
| Valve Ball Material | Stainless steel EN 1.4401 |
| Valve Seat Material | Stainless steel EN 1.4571 |
| Valve Gasket Material | FKM / Rubber |
| Valve Configuration | Single ball valves |
| Inlet Non-Return Valve | Standard |
| Outlet Non-Return Valve | Standard |
| Inlet Connection Type | Rp |
| Outlet Connection Type | Rp |
| Inlet Connection Size | 3/4 inch |
| Outlet Connection Size | 3/4 inch |
| Maximum Permissible Inlet Pressure | 0 bar |
| Liquid Temperature Range | -10 to 70 °C |
| Power Input (P1) | 0.09 kW (approx. 0.121 HP) |
| Rated Voltage | 3 × 230/400 V |
| Mains Frequency | 50 Hz |
| Maximum Frequency | 50 Hz |
| Enclosure Class | IP65 |
| Control Variant | Standard |
| Frequency Converter | Not prepared for VFD |
| Cable Included | No |
| Power Plug | No plug |
| Diaphragm Leakage Detection | No |
| Net Weight | 15 kg (approx. 33.1 lb) |
| Gross Weight | 17.6 kg (approx. 38.8 lb) |
| Shipping Volume | 0.04 m³ |
| Approvals | CE, EAC, CNROHSEX |
| Country of Origin | Germany (DE) |
| Custom Tariff Number | 8413709062 |
