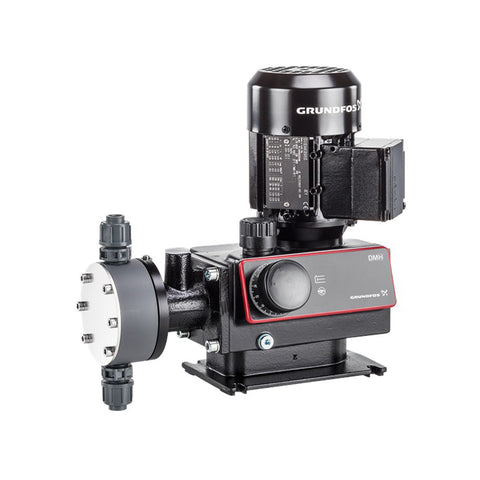

Grundfos DMH 50-200 High Pressure Dosing Pump 50 L/h 200 Bar
Grundfos DMH 50-200 High Pressure Dosing Pump 50 L/h 200 Bar
Vendor: Grundfos
Unavailable
KEY FEATURES
- Approx. 50 L/h nominal dosing capacity at 50 Hz
- 200 bar maximum operating pressure
- Designed specifically for high-pressure dosing applications
- Robust positive displacement diaphragm dosing pump
- Stainless steel EN 1.4571 dosing head
- Stainless steel EN 1.4401 valve ball
- Stainless steel EN 1.4571 valve seat
- FKM valve gasket
- Long-life PTFE diaphragm
- Spring-loaded inlet and outlet ball valves
- Handles liquids up to 5 mPa·s viscosity
- Manual stroke-length adjustment with 10:1 adjustment ratio
- 8/10 cutting-ring inlet and outlet connections
- 3 × 230/400 V, 50 Hz three-phase motor
- 1 kW power input
- IP55 enclosure rating
- CE, EAC and CNROHSEX approvals
The Grundfos DMH 50-200 is a robust positive displacement diaphragm dosing pump designed specifically for demanding high-pressure industrial and process applications. This DMH high-pressure configuration provides a nominal dosing capacity of 50 L/h at 50 Hz while supporting operating pressures up to 200 bar.
The diaphragm is hydraulically coupled through a precise gear-eccenter-tappet system to a high-efficiency AC motor. Dosing capacity can be adjusted by varying the stroke length using the stroke adjustment knob, providing an adjustment ratio of 1:10. The high-pressure DMH design provides dependable and precise chemical metering for applications where elevated operating pressures are required.
This configuration features an EN 1.4571 stainless steel dosing head and valve seat, EN 1.4401 stainless steel valve ball, FKM valve gasket and long-life PTFE diaphragm. Spring-loaded inlet and outlet ball valves support reliable operation at elevated pressures. With a nominal dosing capacity of 50 L/h and maximum operating pressure of 200 bar, the pump is suited to demanding high-pressure industrial and chemical dosing environments.
ADDITIONAL FEATURES
- High-pressure design for applications up to 200 bar
- Long-life PTFE diaphragm
- Easy-to-install and operate design
- Aluminium pump housing
- Optimum capacity and stroke-frequency graduation
- Dosing flow variation ±1% (FS)
- Linearity ±1% (FS)
- Spring-loaded inlet non-return ball valve
- Spring-loaded outlet non-return ball valve
- 8/10 cutting-ring inlet connection
- 8/10 cutting-ring outlet connection
- Maximum permissible inlet pressure of 5 bar
- Liquid temperature range from -10 to 90 °C
- Standard control variant
- Not prepared for VFD operation
- IP55 motor enclosure
APPLICATIONS
- High-pressure chemical dosing, process engineering, industrial chemical injection, water treatment, chemical treatment and other applications requiring precise and reliable chemical metering at operating pressures up to 200 bar.
PRODUCT PACKAGE INCLUDES
- Grundfos DMH 50-200 High Pressure Mechanical Dosing Pump
SPECIFICATIONS
| Specification | Details |
|---|---|
| Product Name | Grundfos DMH 50-200 |
| Product Number | 99823639 |
| Model / Configuration | DMH 50-200 B-SS/V/SS-X-E2C2C2XMPAG |
| EAN Number | 5713834806100 |
| Pump Type | Positive displacement diaphragm dosing pump |
| Nominal Flow Rate | 50 L/h at 50 Hz (approx. 13.21 US GPH) |
| Maximum Operating Pressure | 200 bar (approx. 2,901 psi) |
| Number of Dosing Heads | 1 |
| Maximum Viscosity | 5 mPa·s |
| Pump Housing | Aluminium |
| Dosing Head Material | Stainless steel EN 1.4571 |
| Diaphragm | PTFE |
| Valve Ball Material | Stainless steel EN 1.4401 |
| Valve Seat Material | Stainless steel EN 1.4571 |
| Valve Gasket Material | FKM / Rubber |
| Inlet Non-Return Valve | Spring-loaded ball valve |
| Outlet Non-Return Valve | Spring-loaded ball valve |
| Inlet Connection Type | Cutting ring |
| Outlet Connection Type | Cutting ring |
| Inlet Connection Size | 8/10 |
| Outlet Connection Size | 8/10 |
| Maximum Permissible Inlet Pressure | 5 bar (approx. 72.5 psi) |
| Liquid Temperature Range | -10 to 90 °C |
| Power Input (P1) | 1 kW (approx. 1.34 HP) |
| Rated Voltage | 3 × 230/400 V |
| Mains Frequency | 50 Hz |
| Maximum Frequency | 50 Hz |
| Enclosure Class | IP55 |
| Control Variant | Standard |
| Frequency Converter | Not prepared for VFD |
| Cable Included | No |
| Power Plug | No plug |
| Diaphragm Leakage Detection | No |
| Net Weight | 58 kg (approx. 127.9 lb) |
| Gross Weight | 66.7 kg (approx. 147.0 lb) |
| Shipping Volume | 0.995 m³ |
| Approvals | CE, EAC, CNROHSEX |
| Country of Origin | Germany (DE) |
| Custom Tariff Number | 841370140512938 |
ADDITIONAL RESOURCES
PRODUCT BROCURE
Additional information about Grundfos DMH Mechanical Dosing Pumps are available in the DMH product leaflet.
DATASHEET
Detailed specifications for the Grundfos DMH 50-200 High Pressure Dosing Pump 50 L/h 200 Bar are available in the datasheet below.
Additional technical data about the Grundfos DMH Mechanical Dosing Pumps are available in the product datasheet.
