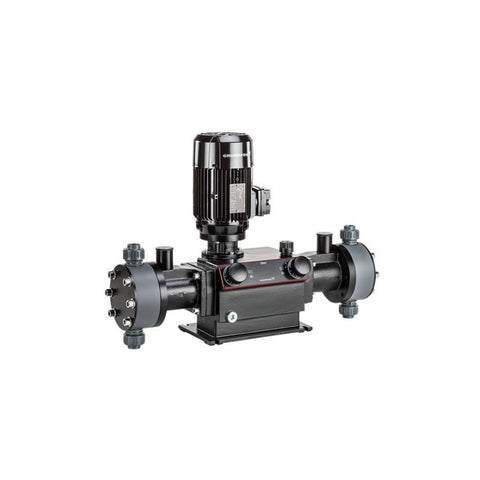

Grundfos DMH 403-10D Dual Head Dosing Pump 403 L/h 10 Bar
Grundfos DMH 403-10D Dual Head Dosing Pump 403 L/h 10 Bar
Vendor: Grundfos
Unavailable
KEY FEATURES
- Approx. 403 L/h nominal dosing capacity at 50 Hz
- 10 bar maximum operating pressure
- Dual-head configuration with 2 dosing heads
- Robust positive displacement diaphragm dosing pump
- PVDF dosing heads
- PTFE/composite valve balls
- PTFE/composite valve seats
- PTFE/composite valve gaskets
- Long-life PTFE diaphragms
- Handles liquids up to 100 mPa·s viscosity
- Manual stroke-length adjustment with 10:1 adjustment ratio
- Standard inlet and outlet non-return valves
- Connection pack with 19/27 and 20/25 connection sizes
- 3 × 230/400 V, 50 Hz three-phase motor
- 0.6 kW power input
- IP55 enclosure rating
- CE, EAC and CNROHSEX approvals
The Grundfos DMH 403-10D is a robust dual-head positive displacement diaphragm dosing pump designed for reliable chemical dosing in demanding industrial and process applications. This configuration combines two dosing heads with a nominal dosing capacity of 403 L/h at 50 Hz and a maximum operating pressure of 10 bar.
The diaphragms are hydraulically coupled through a precise gear-eccenter-tappet system to a high-efficiency AC motor. Dosing capacity can be adjusted by varying the stroke length using the stroke adjustment knob, providing an adjustment ratio of 1:10. The dual-head arrangement provides a versatile dosing solution while retaining the robust mechanical design of the Grundfos DMH range.
This configuration features two PVDF dosing heads, long-life PTFE diaphragms, PTFE/composite valve balls, PTFE/composite valve seats and PTFE/composite valve gaskets. With compatibility for liquids up to 100 mPa·s viscosity and a liquid temperature range from -10 to 60 °C, the pump provides dependable performance for compatible industrial and chemical dosing applications.
ADDITIONAL FEATURES
- Dual-head design with 2 dosing heads
- Long-life PTFE diaphragms
- Easy-to-install and operate design
- Aluminium pump housing
- Optimum capacity and stroke-frequency graduation
- Dosing flow variation ±1.5% (FS)
- Linearity ±2% (FS)
- Standard inlet non-return valve
- Standard outlet non-return valve
- Connection pack for inlet and outlet
- Connection sizes: 19/27 and 20/25
- Maximum permissible inlet pressure of 0.8 bar
- Liquid temperature range from -10 to 60 °C
- Standard control variant
- Not prepared for VFD operation
- IP55 motor enclosure
APPLICATIONS
- Process engineering, water treatment, wastewater treatment, industrial chemical dosing, chemical treatment, disinfection, pH adjustment and other applications requiring reliable chemical metering at pressures up to 10 bar.
PRODUCT PACKAGE INCLUDES
- Grundfos DMH 403-10D Dual Head Mechanical Dosing Pump
SPECIFICATIONS
| Specification | Details |
|---|---|
| Product Name | Grundfos DMH 403-10D |
| Product Number | 99822563 |
| Model / Configuration | DMH 403-10D B-PV/T/T-X-E1U3U3XEMAG |
| EAN Number | 5713834785016 |
| Pump Type | Positive displacement diaphragm dosing pump |
| Nominal Flow Rate | 403 L/h at 50 Hz (approx. 106.46 US GPH) |
| Maximum Operating Pressure | 10 bar (approx. 145 psi) |
| Number of Dosing Heads | 2 |
| Maximum Viscosity | 100 mPa·s |
| Pump Housing | Aluminium |
| Dosing Head 1 Material | PVDF |
| Dosing Head 2 Material | PVDF |
| Diaphragm | PTFE |
| Valve Ball Material | PTFE / Composite |
| Valve Seat Material | PTFE / Composite |
| Valve Gasket Material | PTFE / Composite |
| Inlet Non-Return Valve | Standard |
| Outlet Non-Return Valve | Standard |
| Inlet Connection | Connection pack |
| Outlet Connection | Connection pack |
| Connection Sizes | 19/27, 20/25 |
| Maximum Permissible Inlet Pressure | 0.8 bar (approx. 11.6 psi) |
| Liquid Temperature Range | -10 to 60 °C |
| Power Input (P1) | 0.6 kW (approx. 0.805 HP) |
| Rated Voltage | 3 × 230/400 V |
| Mains Frequency | 50 Hz |
| Maximum Frequency | 50 Hz |
| Enclosure Class | IP55 |
| Control Variant | Standard |
| Frequency Converter | Not prepared for VFD |
| Cable Included | No |
| Power Plug | No plug |
| Diaphragm Leakage Detection | No |
| Net Weight | 59.8 kg (approx. 131.8 lb) |
| Gross Weight | 76.3 kg (approx. 168.2 lb) |
| Shipping Volume | 0.324 m³ |
| Approvals | CE, EAC, CNROHSEX |
| Country of Origin | Germany (DE) |
| Custom Tariff Number | 8413919065 |
ADDITIONAL RESOURCES
PRODUCT BROCURE
Additional information about Grundfos DMH Mechanical Dosing Pumps are available in the DMH product leaflet.
DATASHEET
Detailed specifications for the Grundfos DMH 403-10D Dual Head Dosing Pump 403 L/h 10 Bar are available in the datasheet below.
Additional technical data about the Grundfos DMH Mechanical Dosing Pumps are available in the product datasheet.
