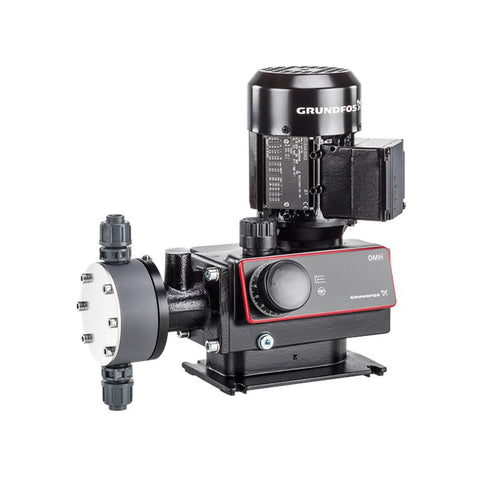

Grundfos DMH 18-16 Mechanical Dosing Pump 18 L/h 16 Bar
Grundfos DMH 18-16 Mechanical Dosing Pump 18 L/h 16 Bar
The Grundfos DMH 18-16 (99587858) is a robust positive displacement diaphragm dosing pump designed for reliable and accurate chemical dosing. Delivering approximately 18 L/h at up to 16 bar, it features a PVDF dosing head, PTFE components and ceramic valve balls for chemical resistance in demanding water treatment and industrial applications.
Vendor: Grundfos
Available
KEY FEATURES
- Approx. 18 L/h nominal dosing capacity at 50 Hz
- 16 bar maximum operating pressure
- Robust positive displacement diaphragm dosing pump
- PVDF dosing head
- Ceramic (Al₂O₃) valve balls
- PTFE valve seat/gasket components
- Handles liquids up to 100 mPa·s viscosity
- Manual stroke-length adjustment with 10:1 adjustment ratio
- 3 × 230/400 V, 50 Hz three-phase motor
- IP65 enclosure rating
- Multiple inlet and outlet connection size options
- CE, EAC and CNROHSEX approvals
The Grundfos DMH 18-16 is a versatile positive displacement diaphragm dosing pump designed for reliable chemical dosing in demanding industrial and process applications. The DMH range is engineered for robust operation where dependable dosing performance is required.
The diaphragm is hydraulically coupled through a precise gear-eccenter-tappet system to a high-efficiency AC motor. Dosing capacity can be adjusted by varying the stroke length using the stroke adjustment knob, providing an adjustment ratio of 1:10.
This configuration features a PVDF dosing head, PTFE diaphragm and sealing components, and ceramic valve balls, providing durable wetted components for compatible chemical dosing applications. The pump's robust industrial construction and straightforward operating design make it suitable for demanding process environments.
ADDITIONAL FEATURES
- Long-life PTFE diaphragm
- Easy-to-install and operate design
- Aluminium pump housing
- Optimum capacity and stroke-frequency graduation
- Dosing flow variation ±1.5% (FS)
- Linearity ±2% (FS)
- Standard inlet and outlet non-return valves
- Connection sizes: 4/6, 6/9, 6/12 and 9/12
- Standard control variant
- IP65 motor enclosure
APPLICATIONS
- Process engineering, water treatment, wastewater treatment, industrial chemical dosing, chemical treatment, disinfection, pH adjustment and other applications requiring reliable chemical metering at pressures up to 16 bar.
PRODUCT PACKAGE INCLUDES
- Grundfos DMH 18-16 Mechanical Dosing Pump
SPECIFICATIONS
| Specification | Details |
|---|---|
| Product Name | Grundfos DMH 18-16 |
| Product Number | 99587858 |
| Model / Configuration | DMH 18-16 B-PV/T/C-X-E1U2U2XEMAG |
| Pump Type | Positive displacement diaphragm dosing pump |
| Nominal Flow Rate | 18 L/h at 50 Hz (4.755 US GPH) |
| Maximum Operating Pressure | 16 bar (232.06 psi) |
| Number of Dosing Heads | 1 |
| Maximum Viscosity | 100 mPa·s |
| Pump Housing | Aluminium |
| Dosing Head Material | PVDF |
| Diaphragm | PTFE |
| Valve Ball Material | Ceramic (Al₂O₃) |
| Valve Seat Material | PTFE / Composite |
| Valve Gasket Material | PTFE / Composite |
| Inlet Non-Return Valve | Standard |
| Outlet Non-Return Valve | Standard |
| Inlet Connection | Connection pack |
| Outlet Connection | Connection pack |
| Connection Sizes | 4/6, 6/9, 6/12, 9/12 |
| Maximum Permissible Inlet Pressure | 8 bar (116.03 psi) |
| Power Input (P1) | 0.121 HP |
| Rated Voltage | 3 × 230/400 V |
| Frequency | 50 Hz |
| Enclosure Class | IP65 |
| Control Variant | Standard |
| Frequency Converter | Not prepared for VFD |
| Cable Included | No |
| Power Plug | No plug |
| Net Weight | 26.5 lb (approx. 12.0 kg) |
| Gross Weight | 51.3 lb (approx. 23.3 kg) |
| Approvals | CE, EAC, CNROHSEX |
| Country of Origin | Germany (DE) |
ADDITIONAL RESOURCES
PRODUCT BROCURE
Additional information about Grundfos DMH Mechanical Dosing Pumps are available in the DMH product leaflet.
DATASHEET
Detailed specifications for the Grundfos DMH 18-16 Mechanical Dosing Pump 18 L/h 16 Bar are available in the datasheet below.
Additional technical data about the Grundfos DMH Mechanical Dosing Pumps are available in the product datasheet.
