KEY FEATURES

• Approx. 1150 L/h nominal dosing capacity at 50 Hz
• 10 bar maximum operating pressure
• Dual-head configuration with 2 dosing heads
• Robust positive displacement diaphragm dosing pump
• PVC dosing heads
• Glass SiLibeads Type P valve balls
• PE valve seats
• FKM valve gaskets
• Long-life PTFE diaphragms
• Handles liquids up to 5 mPa·s viscosity
• Manual stroke-length adjustment with 10:1 adjustment ratio
• Standard inlet and outlet non-return valves
• Size 40 cementing inlet and outlet connections
• 3 × 230/400 V, 50 Hz three-phase motor
• 2 kW power input
• IP55 enclosure rating
• CE, EAC and CNROHSEX approvals

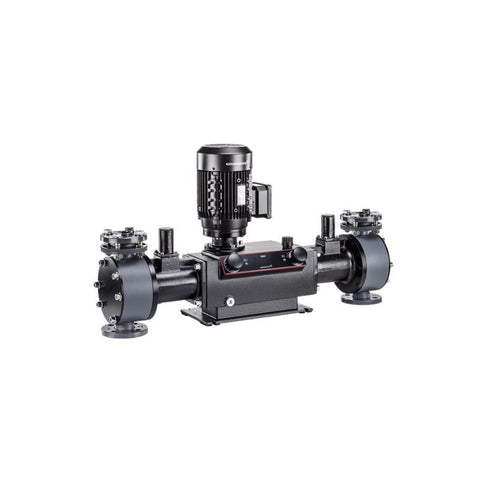

The Grundfos DMH 1150-10D is a robust dual-head positive displacement diaphragm dosing pump designed for reliable high-capacity chemical dosing in demanding industrial and process applications. This configuration combines two dosing heads with a nominal dosing capacity of 1150 L/h at 50 Hz and a maximum operating pressure of 10 bar.

The diaphragms are hydraulically coupled through a precise gear-eccenter-tappet system to a high-efficiency AC motor. Dosing capacity can be adjusted by varying the stroke length using the stroke adjustment knob, providing an adjustment ratio of 1:10. The dual-head arrangement provides a high-capacity dosing solution while retaining the robust mechanical design of the Grundfos DMH range.

This configuration features two PVC dosing heads, long-life PTFE diaphragms, glass SiLibeads Type P valve balls, PE valve seats and FKM valve gaskets. Standard inlet and outlet non-return valves and size 40 cementing connections provide a straightforward connection arrangement for compatible chemical dosing systems.

ADDITIONAL FEATURES

• Dual-head design with 2 dosing heads
• Long-life PTFE diaphragms
• Easy-to-install and operate design
• Aluminium pump housing
• Optimum capacity and stroke-frequency graduation
• Dosing flow variation ±1.5% (FS)
• Linearity ±2% (FS)
• Standard inlet and outlet non-return valves
• Size 40 cementing inlet connection
• Size 40 cementing outlet connection
• Maximum permissible inlet pressure of 0.8 bar
• Liquid temperature range from 0 to 40 °C
• Standard control variant
• Not prepared for VFD operation
• IP55 motor enclosure

APPLICATIONS

• Process engineering, water treatment, wastewater treatment, industrial chemical dosing, chemical treatment, disinfection, pH adjustment and other applications requiring reliable high-capacity chemical metering at pressures up to 10 bar.

PRODUCT PACKAGE INCLUDES

• Grundfos DMH 1150-10D Dual Head Mechanical Dosing Pump

SPECIFICATIONS

ADDITIONAL RESOURCES

PRODUCT BROCURE

Additional information about Grundfos DMH Mechanical Dosing Pumps are available in the DMH product leaflet.

DOWNLOAD

DATASHEET

Detailed specifications for the Grundfos DMH 1150-10D Dual Head Dosing Pump 1150 L/h 10 Bar are available in the datasheet below.

DOWNLOAD

Additional technical data about the Grundfos DMH Mechanical Dosing Pumps are available in the product datasheet.
