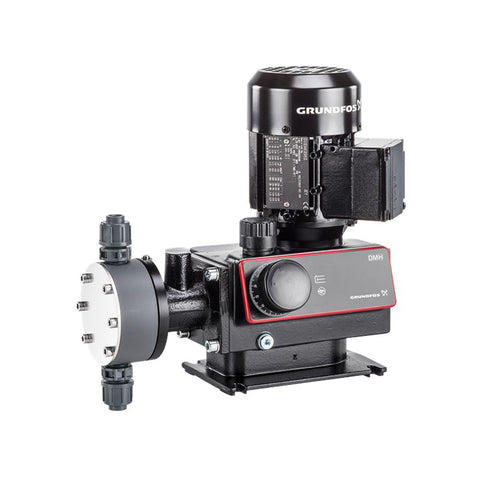

Grundfos DMH 111-50 High Pressure Dosing Pump 111 L/h 50 Bar
Grundfos DMH 111-50 High Pressure Dosing Pump 111 L/h 50 Bar
Vendor: Grundfos
Unavailable
KEY FEATURES
- Approx. 111 L/h nominal dosing capacity at 50 Hz
- 50 bar maximum operating pressure
- Designed for demanding high-pressure dosing applications
- Robust positive displacement diaphragm dosing pump
- Stainless steel EN 1.4571 dosing head
- Stainless steel EN 1.4401 valve ball
- PTFE/composite valve seat
- PTFE/composite valve gasket
- Long-life PTFE diaphragm
- Manual stroke-length adjustment with 10:1 adjustment ratio
- Standard inlet and outlet non-return valves
- 3/4-inch Rp inlet and outlet connections
- 3 × 230/400 V, 50 Hz three-phase motor
- 1 kW power input
- IP55 enclosure rating
- CE, EAC and CNROHSEX approvals
The Grundfos DMH 111-50 is a robust positive displacement diaphragm dosing pump designed for reliable high-pressure chemical dosing in demanding industrial and process applications. The DMH high-pressure range is engineered for applications requiring dependable dosing performance at elevated operating pressures.
The diaphragm is hydraulically coupled through a precise gear-eccenter-tappet system to a high-efficiency AC motor. Dosing capacity can be adjusted by varying the stroke length using the stroke adjustment knob, providing an adjustment ratio of 1:10.
This configuration features an EN 1.4571 stainless steel dosing head, EN 1.4401 stainless steel valve ball, PTFE/composite valve seat and gasket, and a long-life PTFE diaphragm. With a nominal dosing capacity of 111 L/h and maximum operating pressure of 50 bar, the pump provides robust performance for demanding high-pressure industrial and chemical dosing environments.
ADDITIONAL FEATURES
- High-pressure design for applications up to 50 bar
- Long-life PTFE diaphragm
- Easy-to-install and operate design
- Aluminium pump housing
- Optimum capacity and stroke-frequency graduation
- Dosing flow variation ±1% (FS)
- Linearity ±1% (FS)
- Standard inlet non-return valve
- Standard outlet non-return valve
- 3/4-inch Rp inlet and outlet connections
- Maximum permissible inlet pressure of 1 bar
- Liquid temperature range from -10 to 90 °C
- Standard control variant
- Not prepared for VFD operation
- IP55 motor enclosure
APPLICATIONS
- High-pressure chemical dosing, process engineering, industrial chemical injection, water treatment, wastewater treatment, chemical treatment and other applications requiring reliable chemical metering at operating pressures up to 50 bar.
PRODUCT PACKAGE INCLUDES
- Grundfos DMH 111-50 High Pressure Mechanical Dosing Pump
SPECIFICATIONS
| Specification | Details |
|---|---|
| Product Name | Grundfos DMH 111-50 |
| Product Number | 99823543 |
| Model / Configuration | DMH 111-50 B-SS/T/SS-X-E1A1A1XMPAG |
| EAN Number | 5713834803987 |
| Pump Type | Positive displacement diaphragm dosing pump |
| Nominal Flow Rate | 111 L/h at 50 Hz (approx. 29.32 US GPH) |
| Maximum Operating Pressure | 50 bar (approx. 725.2 psi) |
| Number of Dosing Heads | 1 |
| Pump Housing | Aluminium |
| Dosing Head Material | Stainless steel EN 1.4571 |
| Diaphragm | PTFE |
| Valve Ball Material | Stainless steel EN 1.4401 |
| Valve Seat Material | PTFE / Composite |
| Valve Gasket Material | PTFE / Composite |
| Inlet Non-Return Valve | Standard |
| Outlet Non-Return Valve | Standard |
| Inlet Connection Type | Rp |
| Outlet Connection Type | Rp |
| Inlet Connection Size | 3/4 inch |
| Outlet Connection Size | 3/4 inch |
| Maximum Permissible Inlet Pressure | 1 bar (approx. 14.5 psi) |
| Liquid Temperature Range | -10 to 90 °C |
| Power Input (P1) | 1 kW (approx. 1.34 HP) |
| Rated Voltage | 3 × 230/400 V |
| Mains Frequency | 50 Hz |
| Maximum Frequency | 50 Hz |
| Enclosure Class | IP55 |
| Control Variant | Standard |
| Frequency Converter | Not prepared for VFD |
| Cable Included | No |
| Power Plug | No plug |
| Diaphragm Leakage Detection | No |
| Net Weight | 52 kg (approx. 114.6 lb) |
| Gross Weight | 60.7 kg (approx. 133.8 lb) |
| Shipping Volume | 0.995 m³ |
| Approvals | CE, EAC, CNROHSEX |
ADDITIONAL RESOURCES
PRODUCT BROCURE
Additional information about Grundfos DMH Mechanical Dosing Pumps are available in the DMH product leaflet.
DATASHEET
Detailed specifications for the Grundfos DMH 111-50 High Pressure Dosing Pump 111 L/h 50 Bar are available in the datasheet below.
Additional technical data about the Grundfos DMH Mechanical Dosing Pumps are available in the product datasheet.
