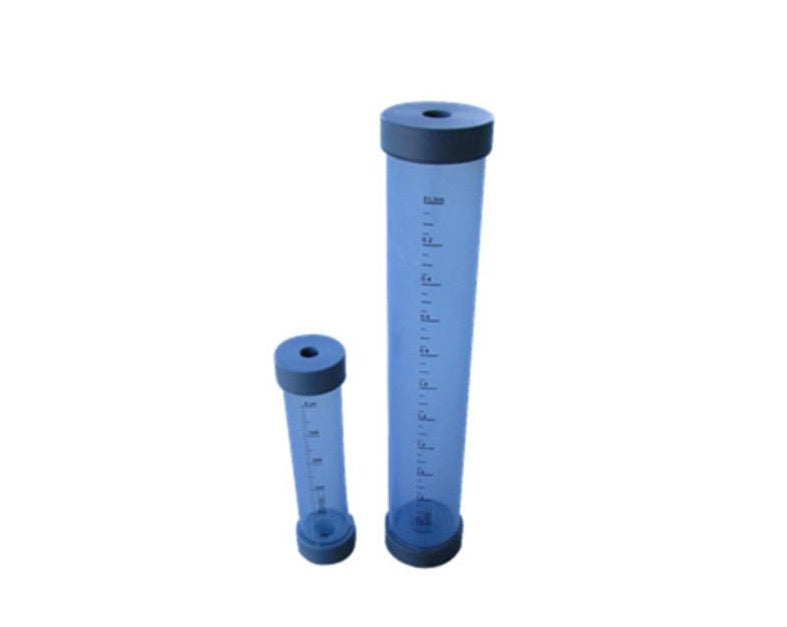

Grundfos Calibration Cylinder, 500 mL Clear PVC Tube with threaded port at both ends
![Grundfos Calibration Cylinder, 500 mL Clear PVC Tube with threaded port at both ends - Parkway Process Solutions](http://pwnps.com/cdn/shop/products/1-GRU-95711648_large.jpg?v=1626758403)
Grundfos Calibration Cylinder, 500 mL Clear PVC Tube with threaded port at both ends
The Grundfos clear PVC calibration cylinder enables the output flow of a dosing pump to be accurately measured, for the purposes of calibrating the pump. The threaded connection ports enable the calibration cylinder to be integrated into the piping of the chemical dosing system.
Vendor: Grundfos
Available
KEY FEATURES
- Used to confirm the output flow of a dosing pump
- Clear PVC tube with threaded ports provides convenient integration options
- Suitable for range of chemical dosing systems
The Grundfos clear PVC calibration cylinder enables the output flow of a dosing pump to be accurately measured, for the purposes of calibrating the pump. The standard threaded connection ports enable the calibration cylinder to be integrated into the piping of the chemical dosing system, for convenient and safe calibration.
ADDITIONAL FEATURES
- Clear PVC tubing with 10 mL measuring increments, enables accurate measurement.
APPLICATIONS
- The calibration cylinder enables the output flow of a dosing pump to be accurately measured, for the purposes of calibrating the pumps.
PRODUCT PACKAGE INCLUDES
- Grundfos Calibration Cylinder, 500 mL Clear PVC Tube with threaded port at both ends
SPECIFICATIONS
Brand | Grundfos |
Model | Calibration Cyl 500ML 501-00500-1A PVC |
Gross Dimensions | |
Weight | 823 g |
Length | 450 mm |
Width | 357 mm |
Depth | 80 mm |
Cylinder Volume | 500 mL |
Cylinder Length | 290 mm |
Cylinder Diameter | DN50 |
Cylinder Scale | 10 mL Increments |
Connection Thread | 1/2" BSPF |
The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.
All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.
ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.
ADDITIONAL RESOURCES
PRODUCT INFORMATION SHEET (PIS)
Detailed information about the Grundfos Calibration Cylinder is outlined in the Grundfos Calibration Cylinder product information sheet.
