Grundfos 9/12 mm Installation Kit (PVDF Body) for Chemical Dosing Pump, with Non-Return Foot Valve (NL), Strainer & Tubing
Grundfos 9/12 mm Installation Kit (PVDF Body) for Chemical Dosing Pump, with Non-Return Foot Valve (NL), Strainer & Tubing

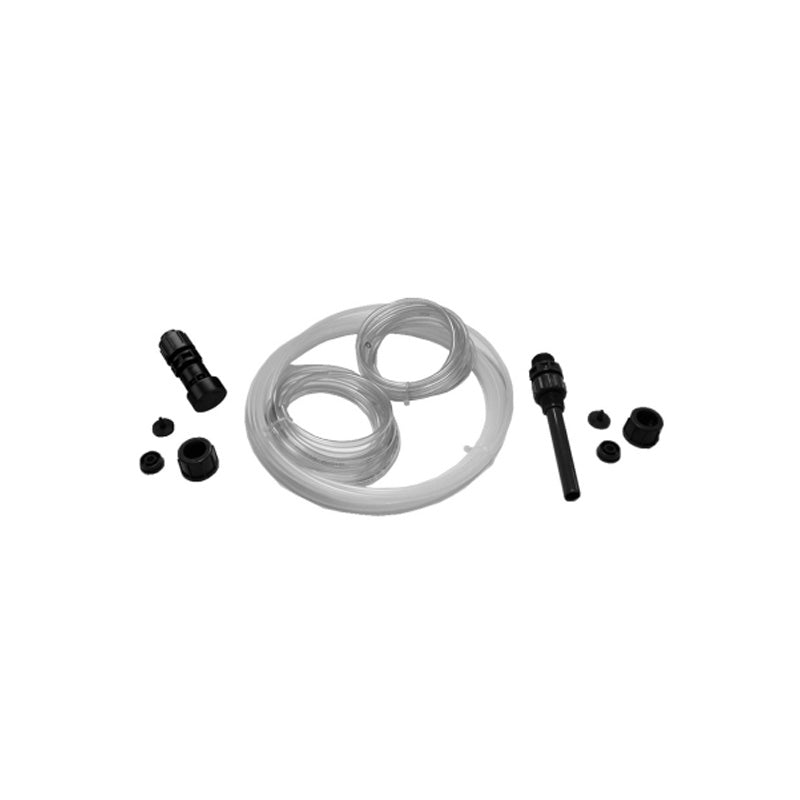

The Grundfos Installation Kit provides everything you need to set-up a chemical dosing pump, which includes a non-return foot valve (with strainer and weight), injection unit, 6 m of discharge tubing, 2 m of suction tubing and 2 m of vent tubing.
Vendor: Grundfos
Available
KEY FEATURES
- Complete installation kit for easy installation of chemical dosing pump
- Suitable for range of chemical dosing systems
- PVDF construction with ceramic ball valve
The Grundfos Installation Kit provides everything you need to set-up a chemical dosing pump, which includes a non-return foot valve (with strainer and weight), injection unit, 6 m of discharge tubing, 2 m of suction tubing and 2 m of vent tubing.
ADDITIONAL FEATURES
- Durable and rugged design
- Foot valve incorporates built in strainer (mesh size 0.8 mm) and non-return valve
APPLICATIONS
- The Grundfos installation kit provides everything you need to set-up a chemical dosing pump that is typically used in chemical dosing related applications.
PRODUCT PACKAGE INCLUDES
Grundfos 9/12 mm Installation Kit (PVDF Body) for Chemical Dosing Pump, with:
- Non-Return Foot Valve (without level indicator, includes integrated strainer)
- Injection unit
- 6 m discharge tubing
- 2 m suction tubing
- 2 m vent tubing
SPECIFICATIONS
| Brand | Grundfos |
| Model | Installation kit 9/12 mm |
| Gross Dimensions | |
| Weight | 965 g |
| Length | 355 mm |
| Width | 260 mm |
| Depth | 100 mm |
| Maximum Flow Rate | 60 L/h |
| Installation Connection | G 1/2" |
| Tube Size | 9/12 mm |
| Suitable For | Grundfos DDA, DDC, DDE, DMX & DDI range of pumps |
| Material Housing | PVDF Plastic |
| Material - Ball Valve | Ceramic |
| Gasket | PTFE/Composite |
The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.
All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.
ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.
ADDITIONAL RESOURCES
PRODUCT INFORMATION SHEET (PIS)
Detailed information about the Grundfos 9/12 mm Installation Kit for Chemical Dosing Pump, with Non-Return Foot Valve, Strainer & Tubing is outlined in the Grundfos 9/12 mm Installation Kit product information sheet.
