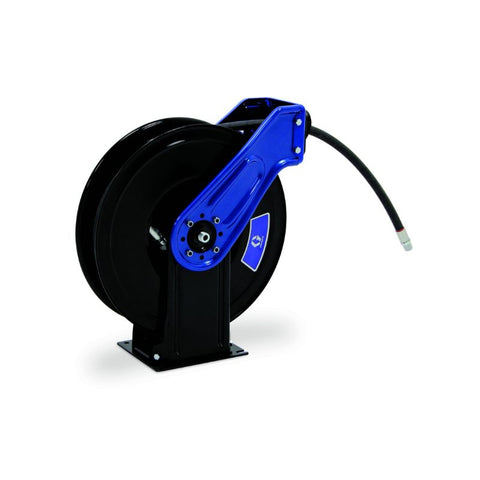

Graco XDL6DB XDX™ 20 Air/Water/Antifreeze/WWS Bare Hose Reel, 13 mm (1/2 in.) Inlet, 13 mm X 15 m (1/2 in. X 50 ft.) Capacity, NPT, Truck/Bench Mount, Metallic Blue
Graco XDL6DB XDX™ 20 Air/Water/Antifreeze/WWS Bare Hose Reel, 13 mm (1/2 in.) Inlet, 13 mm X 15 m (1/2 in. X 50 ft.) Capacity, NPT, Truck/Bench Mount, Metallic Blue
The Graco XDX™ 20 Bare Hose Reel (SKU: GRA-XDL6DB / Part Number: XDL6DB) is an industrial, heavy-duty spring-rewind reel designed without a hose to allow custom utility configurations in demanding service environments. Finished in metallic blue, this robust bare reel is engineered to accommodate up to a 13 mm X 15 m (1/2 in. X 50 ft.) hose for compressed air, water, antifreeze, or windshield washer fluid (WWS) lines. Built for exceptional durability, it features a heavy-gauge metal dual-pedestal frame, a rugged steel spool, and an innovative full-flow swivel that maximizes material delivery with minimal pressure drop. Designed for compact footprint integration on service trucks or workbenches, the XDL6DB provides an elite, highly adaptable fluid handling foundation for heavy vehicle workshops, fleet maintenance, and mining facilities.
Vendor: Graco
Available
KEY FEATURES
- Heavy-duty bare industrial spring-rewind reel allowing for customized hose installation
- Engineered to accommodate a 13 mm X 15 m (1/2 in. X 50 ft.) fluid delivery hose
- Heavy-gauge, ribbed metal dual-pedestal frame and steel spool maximize structural rigidity
- Innovative full-flow swivel configuration maximizes material flow rate with minimal pressure drop
- Pressurized spring adjustment feature allows spring tension modifications while fluid lines are active
- Baked-on enamel finish provides a durable barrier that protects against corrosion and harsh climates
- Compact pedestal profile combines a space-saving design with a high fluid capacity layout
The Graco XDX™ Series GRA-XDL6DB bare reel is constructed with premium components intended to deliver high-quality performance in extreme environments. Built from the ground up to allow professional operations to select their own specialized hose material, this model features sealed internal components protected against dust and moisture ingress. Its versatile truck or bench mount footprint makes it perfect for heavy-duty truck dealerships, construction vehicle maintenance, and mobile service rigs looking to improve turnaround speed, minimize fluid flow restrictions, and maintain neat work environments.
ADDITIONAL FEATURES
- Designed for heavy-duty operational stability in both rugged indoor and outdoor environments
- Standard 1/2 inch male NPSM inlet and 1/2 inch female outlet connections for secure system integration
- High-temperature capability rating up to 87°C for specialized industrial operations
- Resilient low-temperature tolerance down to -28°C for dependable cold-weather service
- Optimized structural layout ensures consistent hose release and smooth retraction control
- Premium wetted path constructed from Stainless Steel, Anodised Aluminium, and Nitrile Rubber
- Positive tracking and latching mechanism locks the custom hose securely at any preferred length
APPLICATIONS
Perfectly suited for configuring custom air, water, antifreeze, and windshield washer fluid lines in heavy-duty truck dealerships, fleet maintenance facilities, mining operations, public works garages, agriculture, and mobile service trucks.
PRODUCT PACKAGE INCLUDES
- 1 x XDX™ 20 Dual Pedestal Spring-Rewind Bare Reel (SKU: GRA-XDL6DB)
SPECIFICATIONS
| Brand | Graco XDX™ 20 |
| SKU | GRA-XDL6DB |
| Part Number | XDL6DB |
| Hose Reel Type | Bare Reel (Hose Not Included) |
| Hose Capacity Size | Accommodates up to 13 mm ID X 15 m (1/2" ID X 50 ft) |
| Frame Type | Heavy-Gauge Dual Pedestal |
| Inlet Size | 1/2" NPSM (Male) |
| Outlet Size | 1/2" (Female) |
| Compatible Fluids | Air, Water, Antifreeze, Windshield Washer Fluid |
| Temperature Range | -28°C to 87°C |
| Mounting Support | Truck Mount, Bench Mount |
| Dimensions (H x L x W) | 508 mm x 533 mm x 196 mm |
The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.
All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.
ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.
