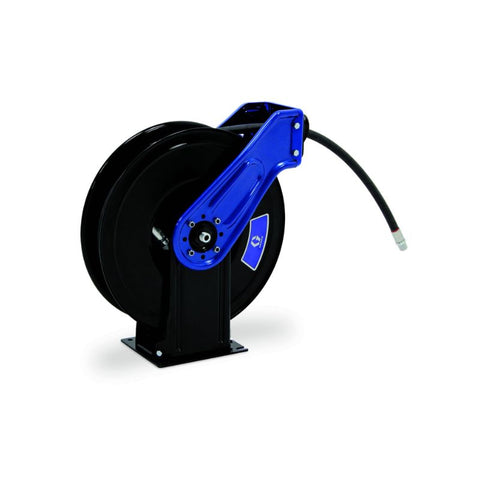

Graco XDL65B XDX™ 20 Air/Water/Antifreeze/WWS Hose Reel, 13 mm (1/2 in.) Inlet, 13 mm X 15 m (1/2 in. X 50 ft.) Hose, NPT, Truck/Bench Mount, Metallic Blue
Graco XDL65B XDX™ 20 Air/Water/Antifreeze/WWS Hose Reel, 13 mm (1/2 in.) Inlet, 13 mm X 15 m (1/2 in. X 50 ft.) Hose, NPT, Truck/Bench Mount, Metallic Blue
The Graco XDX™ 20 Hose Reel (SKU: GRA-XDL65B / Part Number: XDL65B) is an industrial, heavy-duty spring-rewind reel engineered to deliver exceptional fluid management performance in the most demanding applications. Supplied in a striking metallic blue finish, this robust reel comes fully equipped with a high-quality 13 mm X 15 m (1/2 in. X 50 ft.) fluid hose suitable for compressed air, water, antifreeze, and windshield washer fluid (WWS). Built for extreme durability, it features a heavy-gauge metal dual-pedestal frame, a rugged steel spool, and an innovative full-flow swivel that maximizes material delivery with minimal pressure drop. Optimized for space efficiency, the compact profile of the XDL65B easily fits into tight spaces on service trucks or workbenches, providing an elite fluid handling solution for fleet maintenance, mining workshops, and heavy-duty industrial sites.
Vendor: Graco
Available
KEY FEATURES
- Heavy-duty industrial spring-rewind reel designed for high-performance fluid delivery
- Comes ready for rugged deployment with an included 13 mm X 15 m (1/2 in. X 50 ft.) hose
- Heavy-gauge, ribbed metal dual-pedestal frame and steel spool maximize structural rigidity
- Innovative full-flow swivel configuration maximizes material flow rate with minimal pressure drop
- Pressurized spring adjustment feature allows spring tension modifications while fluid lines are active
- Baked-on enamel finish provides a durable barrier that protects against corrosion and harsh climates
- Compact pedestal profile combines a space-saving design with a high fluid capacity layout
The Graco XDX™ Series GRA-XDL65B is constructed with heavy-duty components intended to deliver high-quality performance in extreme environments. Engineered from the ground up for total reliability, this model features sealed internal components protected against dust and moisture ingress. Its versatile truck or bench mount footprint makes it perfect for heavy-duty truck dealerships, construction vehicle maintenance, and mobile service rigs looking to improve turnaround speed, minimize fluid flow restrictions, and reduce physical operator strain.
ADDITIONAL FEATURES
- Designed for heavy-duty operational stability in both rugged indoor and outdoor environments
- Standard 1/2 inch male inlet and outlet connections for straightforward system implementation
- High-temperature capability rating up to 87°C for specialized industrial operations
- Resilient low-temperature tolerance down to -28°C for dependable cold-weather service
- Optimized structural layout ensures consistent hose release and smooth retraction control
- Premium wetted path constructed from Stainless Steel, Anodised Aluminium, and Nitrile Rubber
- Positive latching mechanism locks the delivery hose securely at any preferred length
APPLICATIONS
Perfectly suited for air, water, antifreeze, and windshield washer fluid lines in heavy-duty truck dealerships, fleet maintenance facilities, mining operations, public works garages, agriculture, and mobile service trucks.
PRODUCT PACKAGE INCLUDES
- 1 x XDX™ 20 Dual Pedestal Spring-Rewind Reel (SKU: GRA-XDL65B)
- 1 x 13 mm X 15 m (1/2 in. X 50 ft.) Industrial Fluid Hose
SPECIFICATIONS
| Brand | Graco XDX™ 20 |
| SKU | GRA-XDL65B |
| Part Number | XDL65B |
| Reel Type | Spring-Rewind (Reel with Hose) |
| Hose Size | 13 mm ID X 15 m (1/2" ID X 50 ft) |
| Frame Type | Heavy-Gauge Dual Pedestal |
| Inlet Size | 1/2" NPSM (Male) |
| Outlet Size | 1/2" (Male) |
| Compatible Fluids | Air, Water, Antifreeze, Windshield Washer Fluid |
| Temperature Range | -28°C to 87°C |
| Mounting Support | Truck Mount, Bench Mount |
| Dimensions (H x L x W) | 640 mm x 594 mm x 191 mm |
The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.
All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.
ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.
ADDITIONAL RESOURCES
PRODUCT BROCHURE
General information about the Graco XDL65B XDX™ 20 Air/Water/Antifreeze/WWS Hose Reel, 13 mm (1/2 in.) Inlet, 13 mm X 15 m (1/2 in. X 50 ft.) Hose, NPT, Truck/Bench Mount, Metallic Blue is outlined in below brochure.
PRODUCT GUIDE
Product Guide of XDX™ 20, Air/Water/Antifreeze/WWS, 13 mm (1/2 in.) Inlet, 13 mm X 15 m (1/2 in. X 50 ft.) Hose, NPT, Truck/Bench Mount, Metallic Blue can be found below.
