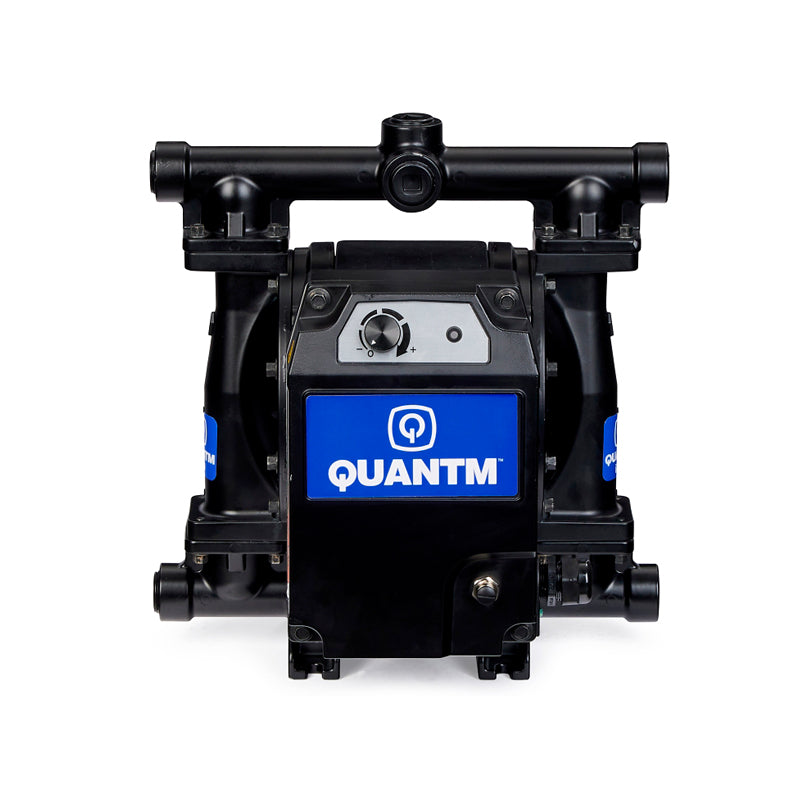

GRACO QUANTM i30 AL (1" BSPT) Electric Diaphragm Pump (115 L/min max flow)

GRACO QUANTM i30 AL (1" BSPT) Electric Diaphragm Pump (115 L/min max flow)

Product Code: GRA-TE30-0166

Graco's new range of revolutionary QUANTM electric diaphragm pumps are suitable for pumping and transferring a large range of chemicals & fluids in industrial, chemicals & mining related applications.

$7,090.00 Excl. GST
$7,799.00 Incl. GST
In Stock - Available for Fast Delivery
Vendor: Graco

Available

KEY FEATURES
  • A plug-and-play installation for fast, easy and affordable transfer operations
  • Suitable for pumping and transferring a large range of chemicals & fluids
  • Quieter operation and a smaller footprint enable easier installation and service



The QUANTM i30 with 25.4 mm (1") port is Graco’s revolutionary new electric operated double diaphragm (EODD) pump that provides the ideal solution for factories or manufacturing plants focused on meeting sustainability goals by reducing their largest variable cost: energy. An i30 pump could pay for itself in 12 months or less while helping achieve compliance with increasingly tight regulations and earning significant rebates along the way.

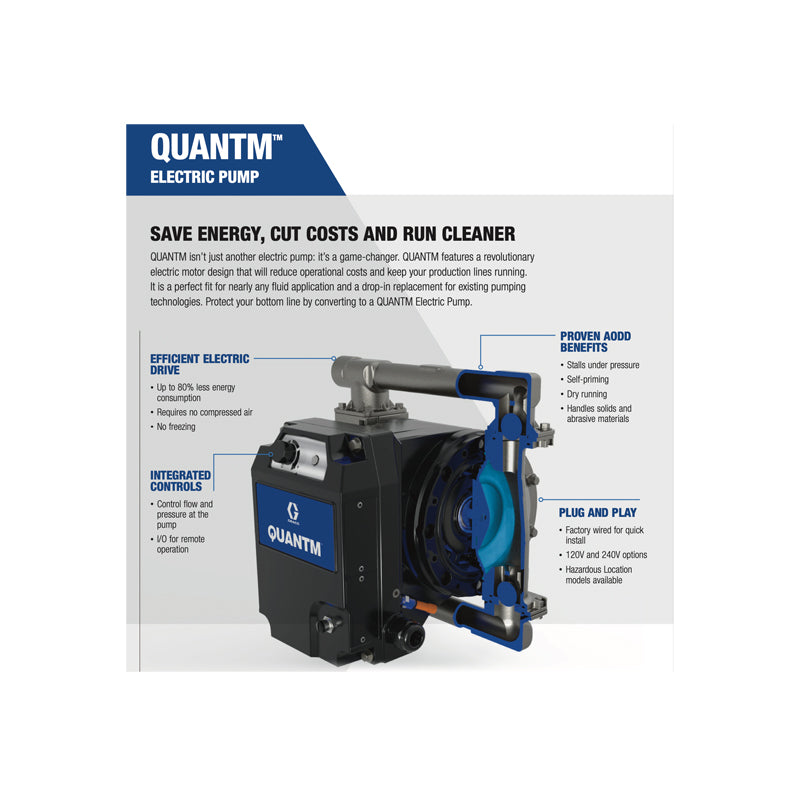

THE QUANTM ELECTRIC DOUBLE DIAPHRAGM PUMP

Designed to meet the growing demand for clean energy and sustainable technologies, QUANTM is the world’s first (and only) affordable electric-operated double diaphragm (EODD) pump built to minimise energy consumption by cutting energy usage and costs by up to 80%. Innovative, new FluxCore motors and drives provide up to 8 times more continuous torque at low speeds while minimising size and resistance losses. These revolutionary pumps are easy to clean, simple to maintain and require less energy to operate—providing a lower cost of ownership. Graco's seal-less and self-priming diaphragm pump design delivers clear advantages over all other pumps, including centrifugal, lobe, gear, progressive cavity, peristatic and piston/plunger technologies.



ADDITIONAL FEATURES
  • Quieter operation and a smaller footprint enable easier installation and service—the design can pay for itself in energy savings in under a year
  • Efficient, affordable drop-in replacement to reduce energy costs by up to 80% being competitively priced vs. AODD pump technologies
  • The only electric diaphragm pump that stalls under pressure, eliminating the need for pressure sensors and additional controls to prevent pump failures and reduce downtime
  • The integrated I/O allows for remote operation and speed control to minimise operator oversight
  • The smart control technology adjusts pump speed to aid in priming or prevent dry running cavitation that damages pumps
  • A plug-and-play installation for fast, easy and affordable transfer operations upgrades
  • Delivers clear advantages over other pumps, including centrifugal, lobe, gear, progressive, peristaltic and piston/ plunger technologies

APPLICATIONS

This Graco QUANTM i30 air-operated diaphragm pump is suitable for range of pumping and transfer related applications including:

  • Range of general purpose fluid transfer applications
  • Sump evacuation applications
  • Transfer of petroleum products (new and waste oils)
  • Transfer of solvents
  • Chemical processing
  • Paints and coatings
  • Wastewater
  • MORE INFO: to discuss the suitability of this pump for your specific application, including confirming chemical compatibility, reach out today, to speak to our experienced pumps specialists.


PRODUCT PACKAGE INCLUDES
  • The GRACO QUANTM i30 AL (1" BSPT) Electric Diaphragm Pump



    Brand GRACO
    Model GRACO QUANTM i30 AL Electric Diaphragm Pump
    Dimensions
    Weight  34 kg
    Length 451 mm
    Width 394 mm
    Depth 489 mm
    Maximum Fluid Flow Rate 115 L/min
    Maximum Fluid Pressure 7 bar


    Material - Manifold Body Aluminum
    Material - Seat Geolast
    Material - Diaphragm Geolast
    Material - Ball Geolast
    Maximum Solids Handling 3.2 mm
    Fluid Inlet Connection 1" BSPT
    Fluid Discharge Connection 1" BSPT
    Voltage 240 V AC



    The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.


    All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.


    ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.






    PRODUCT DATA SHEET

    Product information about the Graco QUANTM electric operated diaphragm pump is outlined in the GRACO Husky product data sheet.

    DOWNLOAD



    PRODUCT BROCHURE

    Additional information about the Graco QUANTM electric operated diaphragm pumps is outlined in the product range brochure.

    DOWNLOAD



    PRODUCT MANUAL

    Product information and instructions for the Graco QUANTM electric operated diaphragm pumps is outlined in the GRACO QUANTM product manual.

    DOWNLOAD
