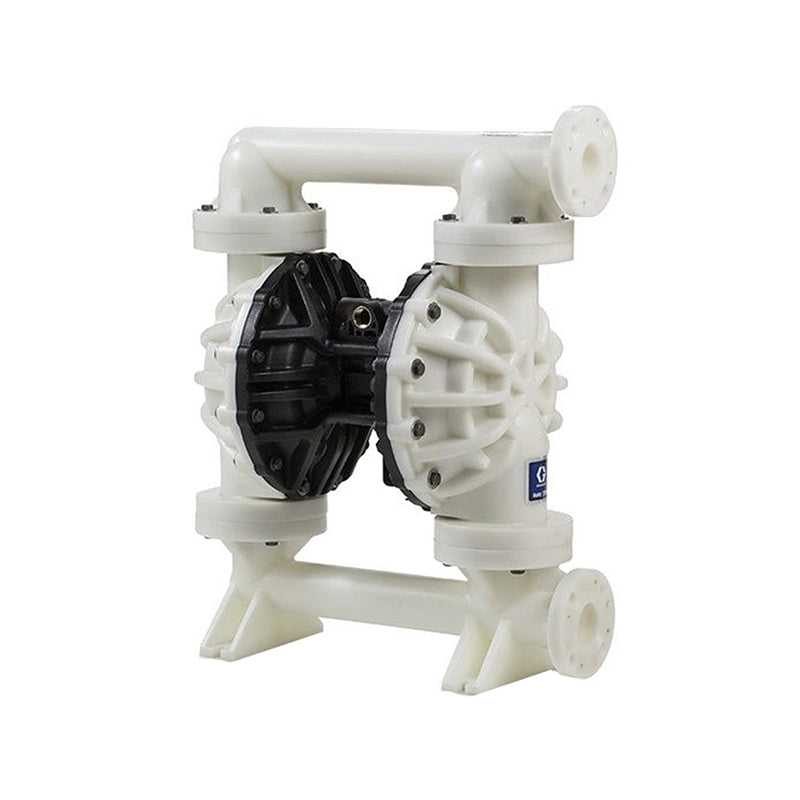

GRACO Husky 2200 PP (2") Diaphragm Pump (757 L/min max flow)

GRACO Husky 2200 PP (2") Diaphragm Pump (757 L/min max flow)

Product Code: GRA-653504

The Graco Husky 2200 air-operated diaphragm pump features a single piece polypropylene center section for increased reliability and chemical compatibility, plus a patented, high-reliability modular air valve that is online serviceable.

$8,040.00 Excl. GST
$8,844.00 Incl. GST
In Stock - Available for Fast Delivery
Vendor: Graco

Available

KEY FEATURES
  • Suitable for pumping and transferring a large range of chemicals & fluids
  • Air-operated diaphragm pump provides operational and safety advantages
  • The one-piece center section eliminates leaks and reduces maintenance



The Graco Husky 2200 air-operated diaphragm pump features a single piece polypropylene center section for increased reliability and chemical compatibility, plus a patented, high-reliability modular air valve that is online serviceable. This diaphragm pump is designed with a reinforced frame for improved reliability and will help to eliminate fluid leakage.



ADDITIONAL FEATURES
  • Overall improved air efficiency
  • Highest fluid flow rate in its class
  • Expanded material offering to handle endless applications
  • Available with Overmolded diaphragms (up to 5 times longer diaphragm life)
  • 2 in (50.8 mm) ANSI center and end-porting options available
  • High flow - 200 gpm (757 lpm) in a compact, portable size
  • Fluid pressure to 125 psi (8.6 bar, 0.86 MPa)
  • Lube-free operation
  • Available in polypropylene and PVDF



    APPLICATIONS

    The Graco Husky 2200 air-operated diaphragm pump is suitable for range of pumping and transfer related applications including:

    • Antifreeze
    • Detergents
    • Windshield Washer Fluid
    • Diesel Exhaust Fluid
    • Cutting Oil
    • Water
    • Wastewater Treatment
    • Wastewater Transfer


    PRODUCT PACKAGE INCLUDES
    • The Graco Husky 2200 air-operated 2" Polypropylene body diaphragm pump



      Brand GRACO
      Model Husky 2200 PP (2") Diaphragm Pump
      Dimensions
      Weight  36.3 kg
      Length 668 mm
      Width 353 mm
      Depth 770 mm
      Maximum Fluid Flow Rate 757 L/min
      Maximum Fluid Pressure 8.6 bar


      Material - Manifold Body Polypropylene
      Material - Seat Polypropylene
      Material - Diaphragm PTFE/EPDM 2-piece
      Material - Ball PTFE
      Maximum Solids Handling 9.5 mm
      Fluid Inlet Connection 2" Centre Flange ANSI/DIN
      Fluid Discharge Connection 2" Centre Flange ANSI/DIN



      The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.


      All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.


      ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.





      PRODUCT BROCHURE

      Additional information about the Graco Husky diaphragm pumps is outlined in the product range brochure.

      DOWNLOAD



      PRODUCT MANUAL

      Product information and instructions for the Graco Husky air-operated diaphragm pump is outlined in the GRACO Husky operating manual.

      DOWNLOAD
