KEY FEATURES

• Heavy-duty industrial spring-rewind reel designed for high-volume, high-flow fluid dispensing
• Comes ready to deploy with an included 19 mm X 15 m (3/4 in. X 50 ft.) high-capacity hose
• Robust dual-pedestal metal frame and steel components provide superior stability
• Full-flow swivel design maximizes fluid delivery rates with minimal pressure drop
• Pressurized spring adjustment allows tension changes while the system is active with fluid
• Baked-on enamel finish provides exceptional resistance against corrosion and harsh weather
• Compact pedestal and spool profile fits efficiently into tight service truck and shop spaces

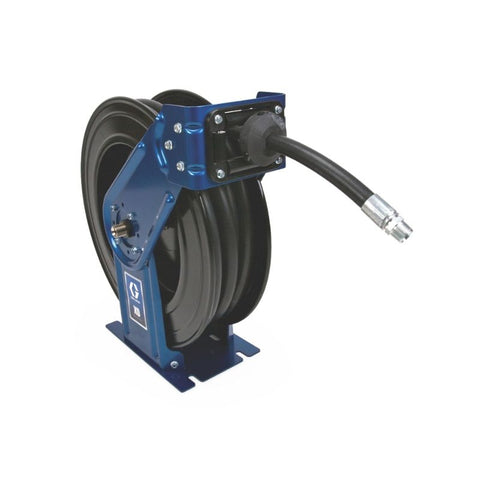

The Graco XD30™ Series GRA-HSLD5F is purposefully constructed to withstand the structural rigors of high-volume industrial and vehicle service environments. Built to perform where standard lower-capacity lines fall short, this heavy-duty model keeps larger 3/4-inch utility hoses neatly organized, increasing workplace safety and reducing hose wear from ground friction. Its rugged truck or bench mount architecture makes it the ultimate fluid management asset for fleet garages, mobile lube rigs, and large-scale manufacturing facilities looking to complete high-volume transfers with speed and confidence.

ADDITIONAL FEATURES

• Engineered for total structural stability in both demanding indoor and outdoor settings
• Standard 3/4 inch NPSM female inlet and 3/4 inch male outlet for straightforward installation
• Optimized structural spool layout prevents hose binding and ensures clean retraction cycles
• Large 3/4-inch hose internal diameter allows for maximum flow rate and rapid fluid delivery
• Adjustable arm configuration allows for custom tailoring to match specific mounting angles
• Heavy-gauge steel components engineered for long-lasting performance in severe environments
• Positive latching mechanism securely locks the extended hose at any required operational length

APPLICATIONS

Perfectly suited for high-flow compressed air, water, antifreeze, and windshield washer fluid utility lines in heavy-duty truck dealerships, mining maintenance facilities, public works garages, agriculture, construction vehicle depots, and industrial service trucks.

PRODUCT PACKAGE INCLUDES

• 1 x XD30™ Series Dual Pedestal Spring-Rewind Reel (SKU: GRA-HSLD5F)
• 1 x 19 mm X 15 m (3/4 in. X 50 ft.) Industrial Utility Hose

SPECIFICATIONS

The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.

All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.

ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.

ADDITIONAL RESOURCES

PRODUCT BROCHURE

General information about the Graco HSLD5F XD30™ Air/Water/Antifreeze/WWS Hose Reel, 19 mm (3/4 in.) Inlet, 19 mm X 15 m (3/4 in. X 50 ft.) Hose, NPT, Truck/Bench Mount, Yellow is outlined in below brochure.

DOWNLOAD

PRODUCT GUIDE

Product Guide of XD30™, Air/Water/Antifreeze/WWS, 19 mm (3/4 in.) Inlet, 19 mm X 15 m (3/4 in. X 50 ft.) Hose, NPT, Truck/Bench Mount, Yellow can be found below.

DOWNLOAD
