KEY FEATURES

• Genuine industrial-grade replacement pneumatic motor assembly engineered for Graco XD Series hose reels
• Standard 12.7 mm (1/2 inch) air inlet size for straightforward integration with workshop pneumatic lines
• Capable of handling maximum air inlet pressures up to 7 bar (700 kPa / 100 psi)
• Dual certification with official CE Marked and UL Listed compliance approvals
• Provides reliable mechanical torque for effortless, automated high-volume hose retraction
• Designed to maintain consistent operational speed and efficiency in extreme service settings
• Heavy-duty housing protects internal air motor components from dust and debris ingress

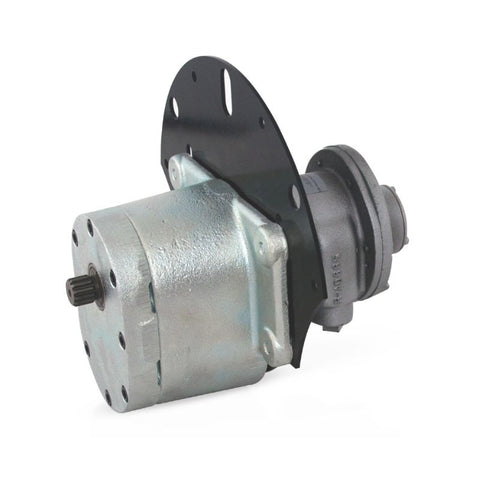

The Graco XD Reel Pneumatic Motor Assembly Kit (Part Number: 24T892) is built to deliver industrial-strength performance for high-capacity fluid handling systems. When manual or standard spring-rewind reels are insufficient for long-range, large-diameter hoses, this air motor assembly provides the power necessary to manage heavy utility lines safely and efficiently. By utilizing workshop compressed air supply lines, it reduces manual operator fatigue and ensures clean, structured hose management on heavy-duty lube trucks, mining service decks, and fixed fleet maintenance bays.

ADDITIONAL FEATURES

• Direct-fit modular configuration simplifies maintenance and minimizes equipment downtime
• Precision-machined internal components ensure minimal air consumption with maximum power output
• Robust build-quality maintains high reliability across broad industrial operational configurations
• Compatible with standard pneumatic regulation and control systems for tailored retraction speed
• Engineered to endure the high-vibration environments typical of mobile service vehicles and heavy machinery yards

APPLICATIONS

Perfectly suited as a high-performance replacement motor component for motorized Graco XD Series hose reels deployed in heavy-duty truck dealerships, mining service bays, fleet maintenance facilities, public works garages, and mobile lube trucks.

PRODUCT PACKAGE INCLUDES

• 1 x XD Hose Reel Pneumatic Motor Assembly Kit (SKU: GRA-24T892)

SPECIFICATIONS

The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.

All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.

ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.

ADDITIONAL RESOURCES

PRODUCT BROCHURE

General information about the Graco 24T892 Pneumatic Motor Assembly Kit for XD Series Hose Reels is outlined in below brochure.

DOWNLOAD

PRODUCT GUIDE

Product Guide of KIT,MOTOR ASSY,PNEU,XD REEL can be found below.

DOWNLOAD
