KEY FEATURES

• Genuine industrial-grade replacement hydraulic motor assembly engineered for Graco XD Series hose reels
• Capable of handling robust high-pressure hydraulic supply lines up to 140 bar (14,000 kPa / 2000 psi)
• Dual certification with official CE Marked and UL Listed compliance approvals
• Provides exceptional mechanical torque for effortless automated high-volume hose retrieval
• Designed to maintain consistent operational power and recovery speed in extreme service environments
• Heavy-duty casing protects precision internal hydraulic components from dirt, moisture, and impact
• Direct-fit modular design ensures straightforward installation and minimizes equipment downtime

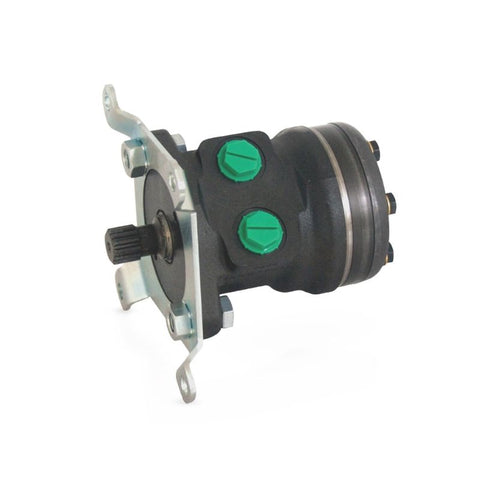

The Graco XD Reel Hydraulic Motor Assembly Kit (Part Number: 24T891) is engineered to deliver industrial-strength performance for maximum-capacity fluid handling systems. When manual retrieval or standard spring-rewind mechanisms are insufficient for handling heavy, long-range, or large-diameter hoses, this hydraulic motor assembly provides the power necessary to manage large utility lines safely. By leveraging the existing hydraulic systems on service vehicles and utility rigs, it eliminates manual operator strain and ensures organized, precise hose tracking in challenging fleet maintenance and field service environments.

ADDITIONAL FEATURES

• Precision-engineered motor internal paths optimize fluid flow efficiency and retrieval torque
• Robust overall construction maintains exceptional durability under continuous high-load cycles
• Integrates cleanly with standard heavy vehicle mobile hydraulic circuits and power take-off (PTO) lines
• Built standard to withstand the high-vibration environments of heavy mining yards and rugged service trucks
• Allows for long-term reliable performance where pneumatic or electrical power is unavailable

APPLICATIONS

Perfectly suited as a high-performance replacement motor component for motorized Graco XD Series hose reels deployed in heavy-duty truck dealerships, mining service bays, public works garages, large-scale agricultural operations, and mobile field lube trucks.

PRODUCT PACKAGE INCLUDES

• 1 x XD Hose Reel Hydraulic Motor Assembly Kit (SKU: GRA-24T891)

SPECIFICATIONS

The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.

All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.

ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.

ADDITIONAL RESOURCES

PRODUCT BROCHURE

General information about the Graco 24T891 Hydraulic Motor Assembly Kit for XD Series Hose Reels is outlined in below brochure.

DOWNLOAD

PRODUCT GUIDE

Product Guide of KIT, MOTOR ASSY, HYD, XD REEL can be found below.
