KEY FEATURES

• Heavy-duty industrial spring-rewind reel engineered to withstand severe working conditions
• Comes ready for high-flow service with a factory-installed 25 mm X 15 m (1 in. X 50 ft.) hose
• Rugged box frame architecture with a ribbed structure delivers maximum strength and structural toughness
• High-capacity 1-inch NPT inlet with a full-flow swivel minimizes pressure drop for faster fills
• Enclosed spring package ensures consistent release, positive tracking, and smooth retraction control
• Durable, high-quality protective finish offers superior defense against corrosion and harsh climates
• Standard 90° fluid path elbow layout allows for clean plumbing integration in tight spaces

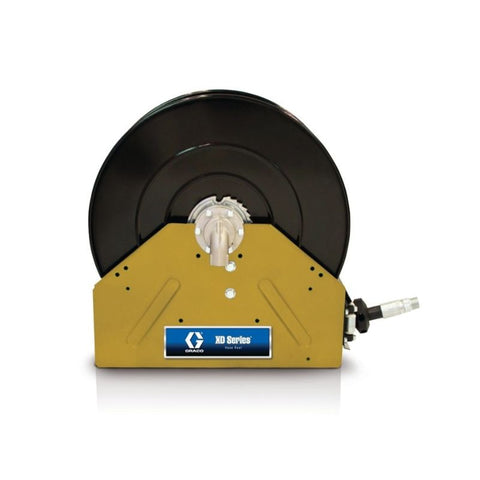

The Graco XD40™ Series GRA-24P337 is built from the ground up for industrial facilities that require massive fluid volume and maximum high-flow utility performance. Engineered to take a beating in rugged applications, this model provides an excellent way to organize heavy-duty 1-inch utility lines, keeping workspaces clean and protecting valuable hoses from vehicle traffic and floor friction. Its dual-supported box frame footprint provides premium stability on high-vibration mobile lube trucks, fixed maintenance bays, or outdoor processing stations.

ADDITIONAL FEATURES

• Optimized structural layout engineered for heavy-duty stability in both indoor and outdoor environments
• Large 1-inch NPT female inlet and 1-inch male NPT hose outlet for exceptional fluid volume throughput
• Heavy-gauge welded steel spool prevents structural flexing under extreme pressure or high-load cycles
• Large 1-inch hose internal diameter allows for maximum flow rate and rapid volume delivery
• Reliable positive locking mechanism holds the long-range hose securely at any desired operational length
• Industrial-grade drive spring is factory-calibrated to deliver smooth, dependable retraction for years
• Versatile box-frame footprint adapts securely to heavy vehicle service decks, floors, and walls

APPLICATIONS

Perfectly suited for heavy-duty, large-diameter compressed air and water service lines in heavy-duty truck dealerships, mining maintenance facilities, fleet garages, public works workshops, construction vehicle maintenance, agriculture, and mobile service rigs.

PRODUCT PACKAGE INCLUDES

• 1 x XD40™ Series Box Frame Spring-Rewind Reel (SKU: GRA-24P337)
• 1 x 25 mm X 15 m (1 in. X 50 ft.) High-Flow Air/Water Hose

SPECIFICATIONS

The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.

All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.

ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.

ADDITIONAL RESOURCES

PRODUCT BROCHURE

General information about the LDX™ Series is outlined in below brochure.

DOWNLOAD

PRODUCT GUIDE

Product Guide of XD40™, Air/Water, 1 in. (25 mm) Inlet, 25 mm X 15 m (1 in. X 50 ft.)) Hose, NPT, Yellow can be found below.

DOWNLOAD
