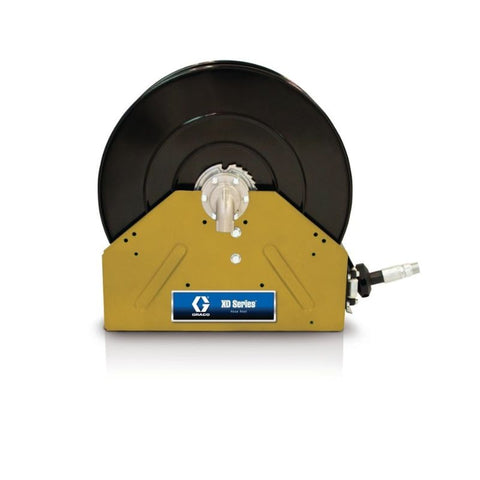

Graco 24P315 XD40™ Air/Water Bare Hose Reel, 25 mm (1 in.) Inlet, 25 mm X 15 m (1 in. X 50 ft.) Capacity, NPT, Yellow
Graco 24P315 XD40™ Air/Water Bare Hose Reel, 25 mm (1 in.) Inlet, 25 mm X 15 m (1 in. X 50 ft.) Capacity, NPT, Yellow
The Graco XD40™ Series Bare Hose Reel (SKU: GRA-24P315 / Part Number: 24P315) is an industrial, ultra-heavy-duty spring-rewind reel designed without a hose to allow custom utility configurations in the most demanding environments. Finished in a high-visibility yellow, this premium bare reel features a rugged box frame structure and is engineered to accommodate up to a 25 mm X 15 m (1 in. X 50 ft.) hose for high-volume compressed air or water delivery. Built to handle extreme operational stress, it incorporates a large 1-inch NPT inlet paired with a full-flow swivel that maximizes material throughput while minimizing pressure drop. With its heavy-duty welded steel spool and a structurally ribbed dual-supported frame, the 24P315 offers an incredibly durable and adaptable utility fluid foundation for service trucks, heavy vehicle workshops, and mining maintenance facility decks.
Vendor: Graco
Available
KEY FEATURES
- Heavy-duty bare industrial spring-rewind reel allowing for customized high-volume hose installation
- Engineered to accommodate up to a large 25 mm X 15 m (1 in. X 50 ft.) fluid utility hose
- Rugged box frame architecture with a ribbed structure delivers maximum strength and structural toughness
- High-capacity 1-inch NPT inlet with a full-flow swivel minimizes pressure drop for faster fills
- Enclosed spring package ensures consistent release, positive tracking, and smooth retraction control
- Durable, high-quality protective finish offers superior defense against corrosion and harsh climates
- Standard 90° fluid path elbow layout allows for clean plumbing integration in tight spaces
The Graco XD40™ Series GRA-24P315 bare reel is built from the ground up for industrial operations that require specialized hose selections without sacrificing heavy-duty performance. Engineered to take a beating in rugged applications, this model provides an elite foundation for organizing massive 1-inch utility lines, keeping workspaces clean and protecting lines from vehicle traffic. Its dual-supported box frame footprint provides premium stability on high-vibration mobile lube trucks, fixed maintenance bays, or outdoor field service environments.
ADDITIONAL FEATURES
- Optimized structural layout engineered for heavy-duty stability in both indoor and outdoor environments
- Large 1-inch NPT female inlet and 1-inch female outlet connections for exceptional fluid volume throughput
- Heavy-gauge welded steel spool prevents structural flexing under extreme pressure or high-load cycles
- Bare reel format lets professionals select the exact hose material needed for their specific workplace environment
- Reliable positive locking mechanism holds the extended custom hose securely at any desired operational length
- Industrial-grade drive spring is factory-calibrated to deliver smooth, dependable retraction for years
- Versatile box-frame footprint adapts securely to heavy vehicle service decks, floors, and walls
APPLICATIONS
Perfectly suited for configuring custom, large-diameter compressed air and water service lines in heavy-duty truck dealerships, mining maintenance facilities, fleet garages, public works workshops, construction vehicle maintenance, agriculture, and mobile service rigs.
PRODUCT PACKAGE INCLUDES
- 1 x XD40™ Series Box Frame Spring-Rewind Bare Reel (SKU: GRA-24P315)
SPECIFICATIONS
| Brand | Graco XD40™ |
| SKU | GRA-24P315 |
| Part Number | 24P315 |
| Hose Reel Type | Bare Reel (Hose Not Included) |
| Hose Capacity Size | Accommodates up to 25 mm ID X 15 m (1" ID X 50 ft) |
| Frame Type | Heavy-Duty Box Frame |
| Inlet Size | 1" NPT (Female) |
| Outlet Size | 1" (Female) |
| Compatible Fluids | Air, Water |
| Environment | Indoor, Outdoor |
| Color | Yellow |
| Dimensions (H x L x W) | 664 mm x 671 mm x 420 mm |
The contents of this document are provided as a guide only and are subject to change without prior notice, and without any subsequent liability to Parkway Process Solutions Pty Ltd (the “Company”) or any of its related entities. The actual shape, colour, size, performance and/or any other parameters of the item/s and/or product/s and/or system/s supplied by the Company, may vary materially from those outlined by the Company.
All brand names and product names outlined in this document are either trademarks or registered trademarks and belong to the respective companies.
ALL INFORMATION OUTLINED HEREIN IS PROVIDED AS A GUIDE ONLY AND SHOULD NOT BE RELIED UPON FOR ANY PURPOSE, WITHOUT CONFIRMING SUCH DETAILS WITH THE COMPANY BEFORE MAKING A PURCHASE AND/OR UTILISING A GIVEN PRODUCT.
ADDITIONAL RESOURCES
PRODUCT BROCHURE
General information about the Graco 24P315 XD40™ Air/Water Bare Hose Reel, 25 mm (1 in.) Inlet, 25 mm X 15 m (1 in. X 50 ft.) Capacity, NPT, Yellow is outlined in below brochure.
PRODUCT GUIDE
Product Guide of XD40™, Air/Water, 25 mm (1 in) Inlet, Bare Reel (25 mm X 15 m (1 in. X 50 ft.) Capacity), NPT, Yellow can be found below.
